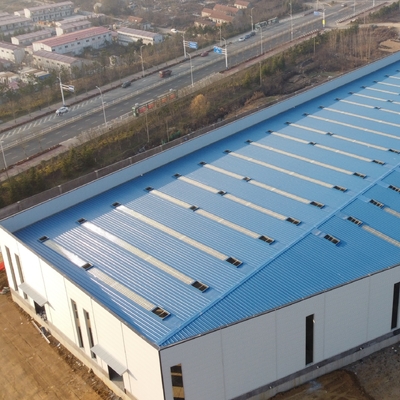

Pre Engineered Steel Structure Building with Insulation Panel

Pre Engineered Steel Structure Building with Insulation Panel
Pre Engineered Steel Structure Building with Insulation Panel Pre Engineered Steel Structure Building with Insulation Panel Pre Engineered Steel Structure Building with Insulation Panel Pre Engineered Steel Structure Building with Insulation Panel Pre Engineered Steel Structure Building with Insulation Panel Pre Engineered Steel Structure Building with Insulation Panel

Large Image :  Pre Engineered Steel Structure Building with Insulation Panel

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, ,ISO,BV
Model Number: Ruly0319
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Pre Engineered Steel Structure Building with Insulation Panel

Description
Application: Pre Engineered Steel Structure Buildings Construction Type: Steel Structure Construction
Wall And Roof: Composited Concrete Panel Raw Steel Material: Q235B, Q355B
Columns And Beam: H Section Column&Beam Surface Treatment: Painting Or Hot-dip Galvanize
Service Life: 50 Years Installation: Engineer Guidance On Site
Highlight:

Pre Engineered Steel Structure Buildings

,

Insulation Panel Steel Structure Buildings

,

Insulation Panel steel structure warehouse construction

Pre Engineered Steel Structure Buildings Construction With Insulation Panel
Product Specifications
Attribute Value
Application Pre Engineered Steel Structure Buildings Construction
Type Steel Structure Construction
Wall and Roof Composited Concrete Panel
Raw steel material Q235B, Q355B
Columns and Beam H Section Column & Beam
Surface treatment Painting or Hot-dip Galvanize
Service life 50 Years
Installation Engineer guidance on site
Product Description
This double-floor pre-built steel structure office building features welded steel columns and beams forming the main frame, with steel floor deck used for the first floor.
The innovative wall panel system is a new-type composite panel consisting of:
  • Outer layer: Concrete with embossing
  • Middle layer: Rebar mesh
  • Core: Corrugated steel plate with insulation material
This advanced wall panel offers:
  • High strength and durability
  • Superior insulation properties
  • Cost and time savings
  • Easy installation
  • Enhanced aesthetic appearance
Pre Engineered Steel Structure Building with Insulation Panel 0
Technical Specifications
Steel column and beam Q345B, welded H section steel with two coats of mid grey painting
Wall panel New-type composite panel
Window & Door Glass sliding door, PVC/aluminum alloy window
Stair case Q235, with two coats of mid grey painting
Safety mesh Q235, D4*100*50 / L30*2, H1000mm
Steel floor deck 2.5 mm Galvanized special steel floor deck
Bolts High Strengthened Bolts, 10.9 Grade
Service Design, Fabrication and Installation
We provide customized quotations based on customer drawings or requirements (size by length/width/height and wind speed), including free design drawings and detailed installation plans.
Design software: Auto CAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) V21.0, etc.
Design
Pre Engineered Steel Structure Building with Insulation Panel 1
Production Capabilities
Our 35,000㎡ fabrication facility includes:
  • 20,000㎡ workshop area
  • Three light/heavy H steel production lines
  • BOX production lines
  • C/Z purlin production lines
  • Advanced profiling steel sheet machines
  • Plasma cutting equipment
Pre Engineered Steel Structure Building with Insulation Panel 2
Product Advantages
  • Wide span: Single span or Multi-span options
  • Cost-effective: $50-$80/m² depending on specifications
  • Durability: 20-50 year service life
  • Fast construction: Quick and easy installation
  • Performance: Environmental protection, structural stability, earthquake resistance, waterproofing, and energy conservation
Why Choose Us?
  • Expert design team for customized solutions
  • Skilled fabrication with advanced equipment
  • Comprehensive service: Integrated project proposals
  • Quality assurance: Professional QC team
  • After-sales support: Maintenance and technical assistance
