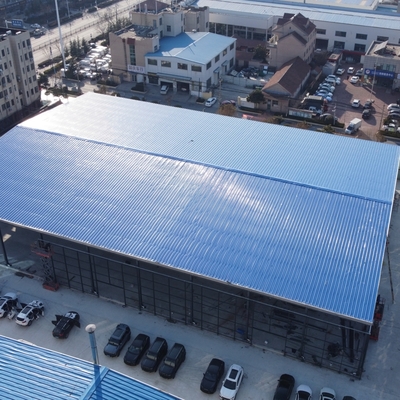

Large Span Steel Structure Warehouse Sandwich Panel Wall

Large Span Steel Structure Warehouse Sandwich Panel Wall
Large Span Steel Structure Warehouse Sandwich Panel Wall
Large Span Steel Structure Warehouse Sandwich Panel Wall Large Span Steel Structure Warehouse Sandwich Panel Wall Large Span Steel Structure Warehouse Sandwich Panel Wall Large Span Steel Structure Warehouse Sandwich Panel Wall Large Span Steel Structure Warehouse Sandwich Panel Wall Large Span Steel Structure Warehouse Sandwich Panel Wall Large Span Steel Structure Warehouse Sandwich Panel Wall

Large Image :  Large Span Steel Structure Warehouse Sandwich Panel Wall

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0095
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Large Span Steel Structure Warehouse Sandwich Panel Wall

Description
Features: Large Span Steel Structure Construction Application: Steel Warehouse Buildings Contractor
Type: Modular Steel Construction Working Scope: Design,Fabrication, Installation
Raw Steel Material: Q235B, Q355B Surface Treatment: Painting
Service Life: 50 Years Wall And Roof: Sandwich Panel
Highlight:

Large Span Steel Structure Construction

,

Sandwich Panel Steel Structure Construction

,

Large Span modular steel construction

Large Span Steel Structure Construction Sandwich Panel Wall
Product Attributes
Attribute Value
Application Steel Warehouse Buildings Contractor
Features Large Span Steel Structure Construction
Type modular steel construction
Working scope Design, Fabrication, Installation
Raw steel material Q235B, Q355B
Surface treatment Painting
Service life 50 Years
Wall and Roof Sandwich panel
Product Description
Large Span Steel Structure Construction Sandwich Panel Wall
Advantages of Large Span Steel Frame Structure
Our steel structure construction is fully customizable. Whether small or large buildings, our engineers will design to meet your specific requirements. Ideal for various purposes including storage, workspaces, and living accommodations with these advantages over traditional logistics buildings:
  • High-opening interior space: Minimum 9 meters net height, accommodating 5-shelf layouts; 12m x 28m column spacing provides flexible warehouse arrangement
  • Convenient unloading facilities: 1.3m high, 4.5m wide unloading area aligns with trucks; electric lift doors and automatic unloading platforms enhance efficiency; 6.5m wide canopy enables all-weather operation
Material List and Technical Parameters
Items Specification
Main Steel Frame Column: Q235, Q345 Welded H Section Steel
Beam: Q235, Q345 Welded H Section Steel
Secondary Frame Purlin: Q235 C and Z purlin
Knee brace: Q235 Angle Steel
Tie Rod: Q235 Circular Steel Pipe
Brace: Q235 Round Bar
Vertical and Horizontal Support: Q235 Angle Steel, Round Bar or Steel Pipe
Maintenance system Roof Panel: EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / PU Sandwich Panel / Steel Sheet
Wall Panel: Sandwich Panel / Corrugated Steel Sheet
Accessories Window: Aluminium Alloy Window / PVC Window / Sandwich Panel Window
Door: Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Rainspout: PVC
Live load on Roof 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade 12 Grades
Earthquake-resistance 8 Grades
Structure Usage Up to 50 years
Temperature Suitable temperature: -50°C to +50°C
Certification CE, SGS, ISO9001:2008, ISO14001:2004
Finishing Options Vast array of colors and textures available
Paint Options Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) or Galvanized
Our Steel Structure Production Line
Large Span Steel Structure Warehouse Sandwich Panel Wall 0
Installation Process
We provide detailed construction drawings for each project prior to installation. Our engineers can guide the installation on-site or our professional construction team can handle the complete installation.
Large Span Steel Structure Warehouse Sandwich Panel Wall 1
Packing and Transportation
All structural components, panels, bolts, and accessories are securely packed in standard ocean transportation packages and loaded into 40'HQ containers. Our skilled workers use cranes and forklifts at our factory loading site to ensure damage-free transportation.
Large Span Steel Structure Warehouse Sandwich Panel Wall 2
Request a Quote
Please provide the following information for an accurate quotation:
Question Details Required
Location (where will be built?) _____country, area
Size: length*width*height _____mm*_____mm*_____mm
Wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
Snow load (max. snow height) _____kn/m2, _____mm
Anti-earthquake _____level
Brickwall needed or not If yes, 1.2m high or 1.5m high
Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; if not, metal steel sheets will be used (lower cost)
Door quantity & size _____units, _____(width)mm*_____(height)mm
Window quantity & size _____units, _____(width)mm*_____(height)mm
Crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
