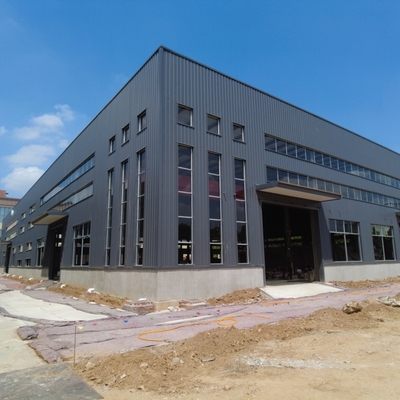

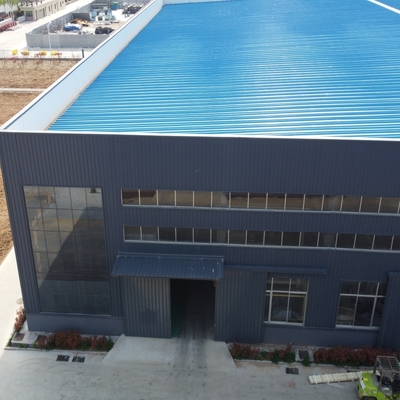

H Beam Steel Structure Warehouse Q235B Q355B 50 Years Life

H Beam Steel Structure Warehouse Q235B Q355B 50 Years Life
H Beam Steel Structure Warehouse Q235B Q355B 50 Years Life
H Beam Steel Structure Warehouse Q235B Q355B 50 Years Life H Beam Steel Structure Warehouse Q235B Q355B 50 Years Life H Beam Steel Structure Warehouse Q235B Q355B 50 Years Life H Beam Steel Structure Warehouse Q235B Q355B 50 Years Life H Beam Steel Structure Warehouse Q235B Q355B 50 Years Life H Beam Steel Structure Warehouse Q235B Q355B 50 Years Life H Beam Steel Structure Warehouse Q235B Q355B 50 Years Life

Large Image :  H Beam Steel Structure Warehouse Q235B Q355B 50 Years Life

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0294
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

H Beam Steel Structure Warehouse Q235B Q355B 50 Years Life

Description
Application: Structural Steel Frame Construction Raw Steel Material: Q235B, Q355B, ASTM A36
Shot Blasting Level: Sa 2.5 Service Life: 50 Years
Wall And Roof: Rock Wool Surface Treatment: Painting
Working Scope: Design,Fabrication, Installation Columns And Beam: H Section Column&Beam
Highlight:

H Beam Steel Frame Construction

,

Structural Steel Frame Construction

,

H Beam Steel Structure Warehouse

H Beam Structural Steel Frame Construction Steel Structure Warehouse
Product Specifications
Application Structural Steel Frame Construction
Raw steel material Q235B, Q355B, ASTM A36
Shot blasting level Sa 2.5
Service life 50 Years
Wall and Roof Rock wool
Surface treatment Painting
Working scope Design, Fabrication, Installation
Columns and Beam H Section Column & Beam
Product Description

Steel structure is composed of steel material structure and is one of the main building structure types. The structure mainly consists of steel plate, steel column, steel truss and other components, typically connected by welding, bolts or rivets. Due to its relatively light weight and simple construction, it is widely used in large factories, venues, and high-rise buildings.

Primary applications include large-span structures, workshops, warehouses, office buildings, large supermarkets, logistics warehouses, showrooms, and hangars.

Detailed Specifications
Component Specification
Main steel frame
Column Q235, Q355 welded H section steel
Beam Q235, Q355 welded H section steel
Secondary frame
Purlin Q235 C and Z purlin
Knee brace Q235 angle steel
Tie rod Q235 circular steel pipe
Brace A235 round bar
Vertical and horizontal support Q235 angle steel, round bar or steel pipe
Maintenance system
Roof panel EPS sandwich panel/glass fiber sandwich panel/rock wool sandwich panel/Pu sandwich panel/steel sheet
Wall panel Sandwich panel/corrugated steel sheet
Accessories
Window Aluminium alloy window/PVC window/sandwich panel window
Door Sliding sandwich panel door/rolling metal door/personal door
Rainspout PVC
Live load on roof 120kg/sqm (color steel panel surrounded)
Wind resistance grade 12 grades
Earthquake-resistance 8 grades
Structure usage Up to 50 years
Finishing options Vast array of colors and textures available
Paint options Alkyd painting, two primary painting, two finish painting (Gray paint, red paint, white paint, epoxy zinc etc.) or galvanized
Our Steel Structure Production Line
H Beam Steel Structure Warehouse Q235B Q355B 50 Years Life 0
Packing and Transport

All structure components, panels, bolts and accessories are well packed with standard packaging suitable for ocean transportation and loaded into 40'HQ containers. Products are loaded at our factory using cranes and forklifts by skilled workers to prevent damage during transport.

H Beam Steel Structure Warehouse Q235B Q355B 50 Years Life 1
Request a Quote

Please provide the following information for an accurate quote:

1. Location (where will be built?) _____country, area
2. Size: length*width*height _____mm*_____mm*_____mm
3. Wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4. Snow load (max. snow height) _____kn/m2, _____mm
5. Anti-earthquake _____level
6. Brickwall needed or not If yes, 1.2m high or 1.5m high
7. Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; if not, metal steel sheets will be used
8. Door quantity & size _____units, _____(width)mm*_____(height)mm
9. Window quantity & size _____units, _____(width)mm*_____(height)mm
10. Crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
