Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam

Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam
Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam

Large Image :  Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam

Product Details:
Place of Origin: Qingdao China
Brand Name: Ruly
Certification: SGS, ,ISO9001, BV, CE, ASTM
Model Number: RulyS030
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meters
Price: USD29-USD53 Per SQM
Packaging Details: 20GP, 40HC,40OT Shipping container standard package
Delivery Time: 25-30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 Square Meter Per Month

Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam

Description
Features: Prefab Steel Structure, Large Span, Multi-Floor Connection Form: Bolt Connection
Weather Resistance: Yes Origin: China
Raw Steel Material: Q235B, Q355B, ASTM A36 Size: Customizable
Specification: Prefab Steel Buildings Application: Industrial/Commercial/Residential
Efficiency: Fast Design Options: Multiple
Drawing: CAD, TEKLA, 3D Model, PKPM, BIM Customization Options: Available
Shot Blasting Level: SA 2.5 Strength: Strong
Maintenance: Low Design: Versatile
Customization: Available Fire Resistance: Yes
Versatility: Flexible Carbon Structural Steel: Q355B
Shape: H Beam, H Columns Transport Package: Standard Export Package Or Customer′s Requirement
Purlin: C/Z Shape Steel Channel,C/Z Galvanized Steel(Q235) Color: Optional
Door: Sliding Door,PVC Door/Steel Door/Color Steel Door/Sandwich Panel Door/Rooler Door,Sliding Door Or Flat Open Or Shutter Door Window: Aluminum Alloy Window,PVC Or Aluminum Alloy,Glass Window/PVC Window/Alumiun Window,Sandwich Panel

Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam



Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam 0



Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam 1

In long-span steel structures, the most common applications are sports venues and exhibition centers. By using steel structures, large, column-free indoor spaces can be created, providing spectators with better views and a more comfortable viewing experience. At the same time, steel structures can easily bear the weight of large roofs, providing architects with more design freedom.

In addition, long-span steel structure buildings are also widely used in commercial office buildings, airport terminals, bridges and other places. They can not only create spacious and bright spaces, but also improve the seismic performance of the building and ensure the safety of the building.

In addition, long-span steel buildings offer sustainability advantages. Steel is a recyclable material that can be recycled and used to reduce the building's carbon footprint. At the same time, the construction speed of steel structure buildings is fast, which can shorten the construction period and reduce the impact on the environment.

In general, the application of long-span steel structure buildings can not only meet the needs of contemporary architecture, but also improve the aesthetic value and sustainability of the building. It is an architectural form worth promoting. I hope this article can help you gain a deeper understanding of the applications of long-span steel structure buildings.





Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam 2





Large Span steel structure building Advantage :



Long-span steel structure buildings are a modern form of construction that have many advantages and can meet people's requirements for architectural aesthetics, functionality and sustainability.

First of all, long-span steel structure buildings have the advantage of being lightweight and flexible. Compared with traditional concrete buildings, steel structures are lighter in weight and can create larger indoor spaces without the need for excessive pillars, providing architects with more design freedom. At the same time, the steel structure can also bear the weight of large roofs, making the building more stable.

Secondly, long-span steel structures are durable. Steel is a strong and durable material that can withstand natural disasters such as strong winds, heavy rain, and heavy snow, ensuring the safety of buildings. Compared with traditional building materials, steel structure buildings have a longer lifespan and can provide people with a more stable living and working environment.

In addition, long-span steel buildings also have sustainability advantages. Steel is a recyclable material that can be recycled and used to reduce the building's carbon footprint. At the same time, the construction speed of steel structure buildings is fast, which can shorten the construction period and reduce the impact on the environment. This sustainable advantage is in line with today's society's demand for environmentally friendly buildings.

In general, long-span steel structure buildings have the advantages of being lightweight, flexible, durable and sustainable, and are a building form worth promoting. I hope this article can help you gain a deeper understanding of the advantages of long-span steel structures.



Our company and factory:



Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam 3

Our steel structure factory is a company with excellent capabilities and extensive experience. Our factory covers an area of 35,000 square meters and is equipped with modern facilities and two mature and professional production lines. We provide high-quality steel structure products and solutions to our customers with efficient production capacity and excellent quality management.



Firstly, our factory has a strong production capacity. We can produce 1,500 tons of steel structure products per month, ensuring timely delivery to meet customer demands. By optimizing production processes and adopting advanced production technologies, we have improved production efficiency and product quality.



Secondly, we prioritize quality management and product certifications. Our factory has obtained several international certifications, including ISO 9001 Quality Management Certification, ISO 14001 Environmental Management Certification, and OHSAS 18001 Occupational Health and Safety Management Certification. These certifications demonstrate our strict requirements for quality management and environmental protection, allowing customers to confidently choose our products.



Our factory also has the capability to undertake complex steel structure projects. We have contracted numerous challenging projects in the past, including large industrial buildings, commercial structures, and bridges. With an experienced engineering team and professional designers, we can provide comprehensive engineering solutions to meet customer requirements for design, manufacturing, and installation.



In addition to our own capabilities, we have established long-term cooperative relationships with customers and gained their trust and reputation. We are committed to closely collaborating with customers, understanding their needs, and providing customized solutions based on their specific requirements. Our goal is to create value for customers through high-quality products and excellent services, establishing long-lasting partnerships.



In summary, our steel structure factory has a strong production capacity, excellent quality management, extensive engineering experience, and good cooperative relationships with customers. We will continue to innovate and improve, providing customers with higher-quality steel structure products and services, and becoming a reliable partner you can trust.



Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam 4Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam 5

Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam 6Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam 7

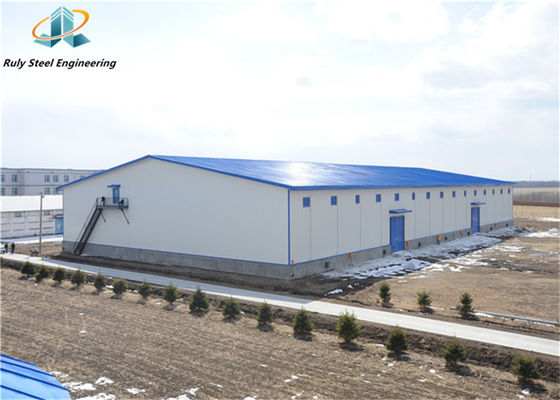

Project Show In Africa:



Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam 8

Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam 9

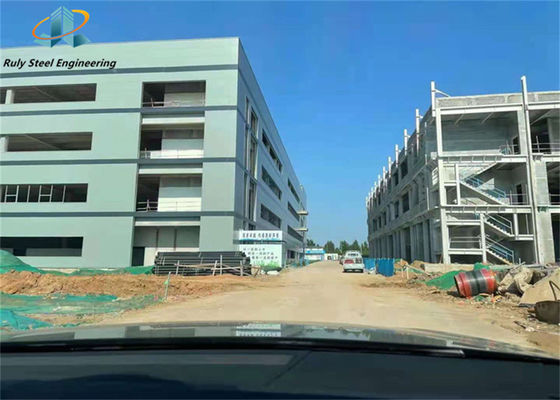

Project Show In Asia :

Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam 10

Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam 11

Installation:



Method 1: We provide shop drawing before installation.

Method 2: If you still don't know how to install, We will teach you the installation in our factory. when necessary , we will assemble a sample steel structure building for you.

Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam 12Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam 13

Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam 14Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam 15



Quality control:



Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam 16



Overall plan:



Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam 17



Packing and loading:



Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam 18

Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam 19



All the structure components, panels,bolts and sort of accessories will be well packed with standard package suitable ocean transportation and loaded into 40'HQ or 40'OT.

All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.



Why us:



1. Professional design team, we could design the drawing as your requirement or calculate the steel quantity based on your drawing.

2. Skilled fabrication team and advanced equipment. We make the independent production schedule to each project.

3. One-stop service: We have completed lots such kinds of projects, we could provide the integrated proposal for your project.

4. Professional QC team will guarantee that we will provide the production and service as your request.

5. After sales service: If it has any questions that need us to do in your process of using, such as the maintain of outside insulation and steel components, just tell us , we will try to provide the service as well as we can.



Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam 20



Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam 21



Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam 22



Large Span Prefabricated Steel Structure Building Warehouse Workshop Construction Prefab Metal Industrial H Section Beam 23



How to get a quote :

The following question we need to know before making the price. Just feel free to fill what you know.

1 Location (where will it be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. snow height) _____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much
lower than that of the former
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not

If yes, _____units, max. lifting weight____tons; max. lifting height _____m









Main parts of the steel structures and technical parameters:



Main Steel Frame System
Main structure H section steel Q345, alkyd painting, two primary painting, two finish painting.
Roof purlin XZ160*60*20*2.5, galvanized
Wall purlin XZ160*60*20*2.5, galvanized
Intensive bolt Grade 10.9
Turn buckle bolt M20+2, steel Q235, processing
Anchor bolt M24, steel Q235, processing
Ordinary bolt Galvanized bolt M20
Ordinary bolt Galvanized bolt M12
Brace nut Galvanized bolt M12
Bracing System
Cross brace Φ20 round steel bar Q235, process and painted (alkyd painting)
Angle brace L50*5 angle steel Q235, process and painted (alkyd painting)
Column bracing Φ25 round steel bar Q235, process and painted (alkyd painting)
Tie bar Φ127*3 steel pipe Q235, process and painted (alkyd painting)
Batter brace Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting)
Wall & Roof System
Roof panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Wall panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Edge cover 0.5mm color plate, angle Alu.
Fittings & accessories Nails, glue etc.
Unpowered ventilator Diameter Φ600, stainless steel
Sky lighting band 1.2mm FRP, double layer
Sliding door sandwich panel door
Roof drainage system
Gutter 0.5mm color steel plate
Rainspout pipes Φ110 PVC pipe


FAQ:



1. Are you a manufacture factory or trading company?
We are manufacture factory. And you are welcomed to visit us at any time. The quality control flow and sales team will show you our professionalism. Also you will can get best and most competitive price after visiting us.

2. Is your price competitive compared with other companies?
Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything we can to reduce your cost and guarantee you get the best product that you paid for.

3. Can you send engineers or whole team to install my project?
We will give detailed installation drawings for free. We can send engineers as installation director or a team upon request.

4. Do you accept container loading inspection?
You are welcomed to send an inspector, not only for the container loading, but any time during the production time.

5. Do you offer designing service for us?
Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc. we can design complex industrial building like office mansion, super marker, auto dealer shop, shipping mall, 5 star hotel.

6. What is the delivery time?
Delivery time depends on order quantities. In general the delivery time to nearest seaport in China will be 40 days after receiving deposit.

7. How can you get a quotation for your projects?
You can contact us by email, phone, WhatsApp, Viber and so on 24*7 and you will get reply within 8 hours.
