Product Details:
|
| Features: | Prefab Steel Structure, Large Span, Multi-Floor | Base: | Cement And Steel Foundation Bolts |
|---|---|---|---|
| Connect: | Bolt/Weld | Connection Form: | Bolt Connection |
| Country Of Origin: | China | Design Standard: | AISC/EN/JIS/GB |
| Earthquake Type: | Level 7 | Material: | Steel Structure |
| Raw Steel Material: | Q235B, Q355B, ASTM A36 | Roof Pitch: | 10%, 12%, 16%, 25%, 30%etc |
| Standard: | GB | Steel: | Q235B Or Q345B |
| Surface Color: | Silver, White | Warehouse: | Warehouse |
| Wind Load: | Customized | Application: | Steel Workshop, Steel Structure Platform, Steel Fabricated House, Structural Roofing, Frame Part, Steel Walkway And Floor, Steel Structure Bridge |
| Keyword: | Prefabricated Steel Structure Warehouse/Workshop | Size: | Customized |
| Service Life: | 50 Years | Installation: | Engineer Guidance On Site |
| Drawing: | CAD, Tekla, 3D Model, Pkpm, Bim | Usage: | Steel Structure Construction |
| Surface Treatment: | Painting Or Hot-DIP Galvanized | Transport Package: | Standard Export Package Or Customers Requirement |
| Origin: | China | Production Capacity: | 50000 Square Meter Per Month |
| Type Of Steel For Building Structure: | H-Section Steel | Product Name: | High Quality And Low Cost Prefabricated Steel Structure |
| Specification: | Prefab Steel Buildings | HS Code: | 9406900090 |
| Wall And Roof: | Steel Cladding Sheet, Sandwich Panel | Parapet Wall: | As Requested |
| High Light: | Q355B Prefabricated Metal Warehouse,Customized Prefabricated Metal Warehouse,JIS Prefab Steel Structure Building |
||
High Quality Large Span Prefab Steel Structure Building Projects Construction Materials Prefabricated Metal Warehouse

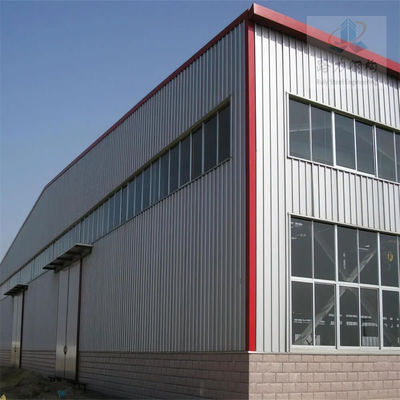

Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse. This steel strucre building is used as a car shop. The construction floor area is about 3200 square meters. We provide wleded steel beam&column, crane, steel cladding sheet, purlin, window and doors and other accessory.
We are a professional steel structure fabrication and construction company for light and heavy steel structure project. Our service include design, fabrication for all the steel structure components and insullation panel, installation on site.
1. Main steel frame structure
2. Laying purlin
3. H section steel column
4. End wall
Welding
Packing
| Main Steel Frame System | |
| Main structure | H section steel Q345, alkyd painting, two primary painting, two finish painting. |
| Roof purlin | XZ160*60*20*2.5, galvanized |
| Wall purlin | XZ160*60*20*2.5, galvanized |
| Intensive bolt | Grade 10.9 |
| Turn buckle bolt | M20+2, steel Q235, processing |
| Anchor bolt | M24, steel Q235, processing |
| Ordinary bolt | Galvanized bolt M20 |
| Ordinary bolt | Galvanized bolt M12 |
| Brace nut | Galvanized bolt M12 |
| Bracing System | |
| Cross brace | Φ20 round steel bar Q235, process and painted (alkyd painting) |
| Angle brace | L50*5 angle steel Q235, process and painted (alkyd painting) |
| Column bracing | Φ25 round steel bar Q235, process and painted (alkyd painting) |
| Tie bar | Φ127*3 steel pipe Q235, process and painted (alkyd painting) |
| Batter brace | Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting) |
| Wall & Roof System | |
| Roof panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
| Wall panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
| Edge cover | 0.5mm color plate, angle Alu. |
| Fittings & accessories | Nails, glue etc. |
| Unpowered ventilator | Diameter Φ600, stainless steel |
| Sky lighting band | 1.2mm FRP, double layer |
| Sliding door | sandwich panel door |
| Roof drainage system | |
| Gutter | 0.5mm color steel plate |
| Rainspout pipes | Φ110 PVC pipe |
1: We provide construction drawing before installation.
2. Then our engineer guide on site for installation
Many customers have visited our factory for the long term cooperation."Quality firstly,Customer firstly" is our company principle.We obtain sound reputation because of our good quality and service. Meanwhile,We pay attention to the team work and value win-win cooperation, which would guide us much further.
Qingdao Ruly Steel Engineering Co., Ltd is a professional steel structure fabrication and engineering company, located in Qingdao, China, which integrates steel structure design, research and development, manufacturing and installation. The project types include prefabricated steel workshop, warehouse, logistics park and other light steel structure of the civil building system, high-rise residential buildings, exhibition center, stadium, airport station and bridge, Power plant, chemical plant, oil and gas, mining,etc.
Our company's steel structure processing plant now covers an area of 35,000 square meters, plant20,000 square meters. More than 100 employees. The monthly production capacity for steel structure is more than 1500 Tons. Our steel structure componetns include light/heavy H steel ,BOX steel,Cross shaped section steel, large diameter submerged arc straight-weld pipe,steel model structure, C/Z purlin and machining fitting components . There are three subordinate steel structure companies, which have passed and strictly implemented ISO9001:2008 quality management system, ISO14001:2004 environmental system, GB/T28001:2001 occupational health system, and obtained ASTM certification in the United States, and international SGS product certification. Obtained the right of export, design, installation and consultation from the ministry of foreign trade and economic cooperation.
RFQ:
1. Are you a manufacture factory or trading company?
We are manufacture factory. And you are welcomed to visit us at any time. The quality control flow and sales team will show you our professionalism. Also you will can get best and most competitive price after visiting us.
2. Is your price competitive compared with other companies?
Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything we can to reduce your cost and guarantee you get the best product that you paid for.
3. Can you send engineers or whole team to install my project?
We will give detailed installation drawings for free. We can send engineers as installation director or a team upon request.
4. Do you accept container loading inspection?
You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
5. Do you offer designing service for us?
Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc. we can design complex industrial building like office mansion, super marker, auto dealer shop, shipping mall, 5 star hotel.
6. What is the delivery time?
Delivery time depends on order quantities. In general the delivery time to nearest seaport in China will be 40 days after receiving deposit.
7. How can you get a quotation for your projects?
You can contact us by email, phone, WhatsApp, Viber and so on 24*7 and you will get reply within 8 hours.
