|Application:||Steel Structure Cowshed||Type:||Steel Structure Warehouse|
|Raw Steel Material:||Q235B, Q355B, ASTM A36||Service Life:||50 Years|
|Wall And Roof:||Rock Wool||Surface Treatment:||Painting|
|Working Scope:||Design,Fabrication, Installation||Columns & Beams:||H-section Steel|
|Standard:||AISC, ASTM, BS, DIN, GB, JIS|
Steel Structure Cowshed Building,
Prefabricated Steel Structure Cowshed,
Sandwich Panel Steel Structure Building

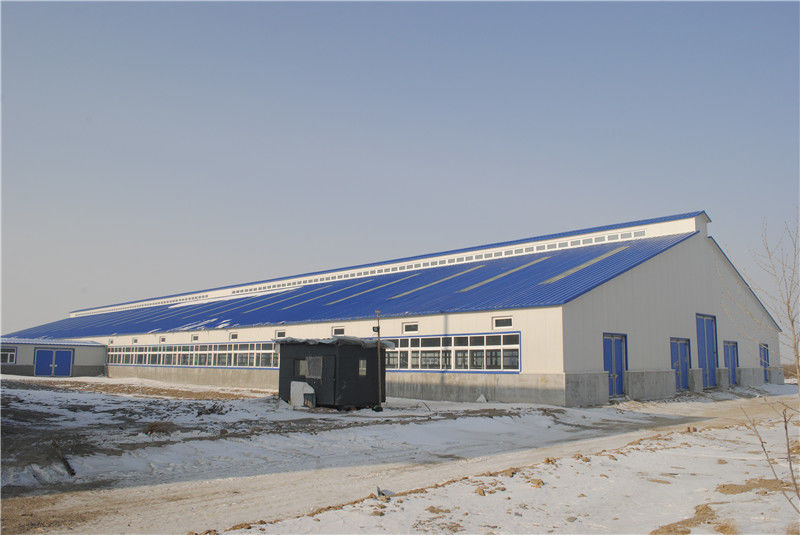

Steel Structure Cowshed With Sandwich Panel/Prefabricated Q355B Steel Structure Building
Compared with the traditional concrete breeding plant, all components of the steel structure breeding plant are prefabricated in the factory, and only need to be assembled on site. Therefore, the structural performance is good, the construction period is short, and the wind and earthquake resistance is strong. In the event of disasters such as earthquakes and typhoons, the steel structure can avoid the collapse of the farm. The steel structure is relatively light in weight, which can reduce casualties such as collapse and smashing injuries. The on-site construction period is short, there is basically no wet work, and there will be no environmental pollution caused by dust and sewage. The steel structure is detachable, which is convenient for plant relocation, and the steel can be recycled, which is more energy-saving and environmentally friendly to reduce environmental pollution. Compared with the concrete factory building of the same specification, the steel structure factory building has a smaller structural component section and a relatively larger building usable area.
Qingdao Ruly Steel Engineering Co.,Ltd is a professional steel structure fabrication and construction company for light and heavy steel structure Design, Manufacture & Installation.
|Main Steel Frame||Column||Q235, Q345 Welded H Section Steel|
|Beam||Q235, Q345 Welded H Section Steel|
|Secondary Frame||Purlin||Q235 C and Z purlin|
|Knee brace||Q235 Angle Steel|
|Tie Rod||Q235 Circular Steel Pipe|
|Brace||Q235 Round Bar|
|Vertical and Horizontal Support||Q235 Angle Steel, Round Bar or Steel Pipe|
|Maintenance system||Roof Panel||EPS Sandwich Panel / Glass Fiber Sandwich Panel /
Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet
|Wall Panel||Sandwich Panel / Corrugated Steel Sheet|
|Accessories||Window||Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window|
|Door||Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door|
|Live load on Roof||In 120kg/Sqm (Color steel panel surrounded)|
|Wind Resistance Grade||12 Grades|
|Structure Usage||Up to 50 years|
|Certification||CE, SGS, ISO9001:2008, ISO14001:2004|
|Finishing Options||Vast array of colors and textures available|
|Paint Options||Alkyd paiting, two primary painting, two finish painting
(gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized.
The floor space of our steel structre fabrication factory is 35,000㎡, and the workshop area is 20000㎡. We own several light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines with advanced equipment such as plasma cutting machine.
We will provide construction drawing before installation for each project. We could also dispatch our engineer to guide installation on site or we install it by our construction team.
