Product Details:
|
| Features: | Large Span Steel Warehouse | Application: | Open Bays Metal Sheds |
|---|---|---|---|
| Type: | Steel Structure Warehouse | Raw Steel Material: | Q235B, Q355B, ASTM A36 |
| Service Life: | 50 Years | Wall And Roof: | Rock Wool |
| Surface Treatment: | Painting | Working Scope: | Design,Fabrication, Installation |
| Columns & Beams: | H-section Steel | Standard: | AISC, ASTM, BS, DIN, GB, JIS |
| Highlight: | steel structure building,metal storage buildings,Open Bays Steel Structure Warehouse |
||

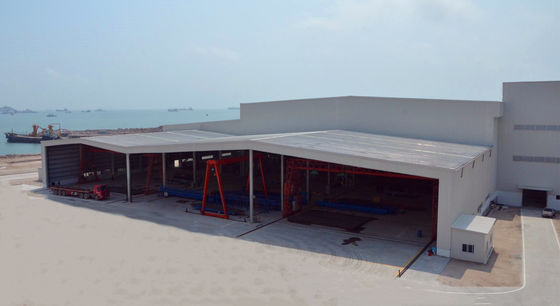

Open Bays Metal Sheds For Raw Steel Material / Large Span Steel Warehouse For Construction Material
Open Bays Metal Sheds For Raw Steel Material / Large Span Steel Warehouse For Construction Material. This kind of metal sheds is used to store and transaction for raw steel material and construction material. Open bays is convenient for store and transport of cargos. H-section steel columns and beams are connected by high strength bolts to be the main frame structure. Prefab steel structure building system has the comprehensive advantages of light weight, factory manufacturing, quick installation, short construction period, good seismic performance, fast investment recovery and less environmental pollution. Compared with reinforced concrete structures. Steel structure has been rationally and widely applied in the field of construction engineering.
Qingdao Ruly Steel Engineering Co.,Ltd is a professional steel structure fabrication and construction company for light and heavy steel structure Design, Manufacture & Installation.
| Items | Specification | |
| Main Steel Frame | Column | Q235, Q345 Welded H Section Steel |
| Beam | Q235, Q345 Welded H Section Steel | |
| Secondary Frame | Purlin | Q235 C and Z purlin |
| Knee brace | Q235 Angle Steel | |
| Tie Rod | Q235 Circular Steel Pipe | |
| Brace | Q235 Round Bar | |
| Vertical and Horizontal Support | Q235 Angle Steel, Round Bar or Steel Pipe | |
| Maintenance system | Roof Panel | EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet |
| Wall Panel | Sandwich Panel / Corrugated Steel Sheet | |
| Accessories | Window | Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window |
| Door | Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door | |
| Rainspout | PVC | |
| Live load on Roof | In 120kg/Sqm (Color steel panel surrounded) | |
| Wind Resistance Grade | 12 Grades | |
| Earthquake-resistance | 8 Grades | |
| Structure Usage | Up to 50 years | |
| Temperature | Suitable temperature.-50°C~+50°C | |
| Certification | CE, SGS, ISO9001:2008, ISO14001:2004 | |
| Finishing Options | Vast array of colors and textures available | |
| Paint Options | Alkyd paiting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized. |
|
The floor space of our steel structre fabrication factory is 35,000㎡, and the workshop area is 20000㎡. We own several light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines with advanced equipment such as plasma cutting machine.
1. Structural steel fabrication, painting , galvanizing , pre-assembly
2. Designing, fabrication and installation for Prefabricated steel structure building.
3. Deepen or design the fabrication drawing or shop drawing based on your architectural drawing and construction drawing
4. Engineering consulting service
