Quick Install Rock Wool Steel Fabricated Buildings Q235B Q355B

Quick Install Rock Wool Steel Fabricated Buildings Q235B Q355B
Quick Install Rock Wool Steel Fabricated Buildings Q235B Q355B
Quick Install Rock Wool Steel Fabricated Buildings Q235B Q355B Quick Install Rock Wool Steel Fabricated Buildings Q235B Q355B Quick Install Rock Wool Steel Fabricated Buildings Q235B Q355B Quick Install Rock Wool Steel Fabricated Buildings Q235B Q355B Quick Install Rock Wool Steel Fabricated Buildings Q235B Q355B Quick Install Rock Wool Steel Fabricated Buildings Q235B Q355B Quick Install Rock Wool Steel Fabricated Buildings Q235B Q355B Quick Install Rock Wool Steel Fabricated Buildings Q235B Q355B

Large Image :  Quick Install Rock Wool Steel Fabricated Buildings Q235B Q355B

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0209
Payment & Shipping Terms:
Minimum Order Quantity: 300 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: Steel frame pallets and loaded into 40’HQ
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Quick Install Rock Wool Steel Fabricated Buildings Q235B Q355B

Description
Type: Steel Fabricated Buildings Raw Steel Material: Q235B, Q355B, ASTM A36
Service Life: 50 Years Wall And Roof: Rock Wool
Surface Treatment: Painting Working Scope: Design,Fabrication, Installation
Columns & Beams: H-section Steel Standard: AISC, ASTM, BS, DIN, GB, JIS
Highlight:

Quick Install Steel Fabricated Buildings

,

Rock Wool Steel Fabricated Buildings

,

Quick Install construction steel frame

Quick Install Modular Steel Fabricated Buildings Rock Wool
Product Specifications
Attribute Value
Type Steel Fabricated Buildings
Raw steel material Q235B, Q355B, ASTM A36
Service life 50 Years
Wall and Roof Rock wool
Surface treatment Painting
Working scope Design, Fabrication, Installation
Columns & Beams H-section steel
Standard AISC, ASTM, BS, DIN, GB, JIS
Project Introduction

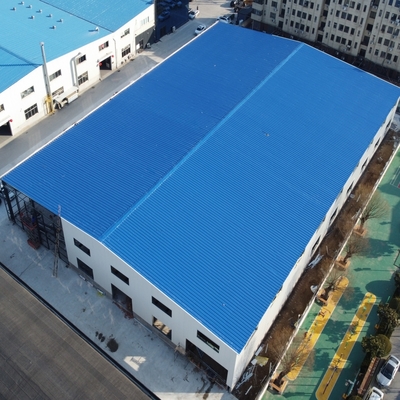

Steel Fabricated Buildings are widely used as warehouses, workshops, hangars, sheds, basketball courts, gas stations, chicken houses, and more. These pre-engineered steel structure buildings are green economy building systems, formed by the main structure using H-section steel for beams/columns and C or Z channel steel for purlins.

Steel Structure Material Specifications
Steel Frame H section steel | Q235/Q345 steel plate thickness: 8-30mm
Welding Automatic submerged arc welding
Rust removal Sand blasting
Surface finish Alkyd paint or galvanized
Intensive bolt M20, Grade 10.9
Supporting System Angle brace: L50x4, Steel Q235, processed and painted
Horizontal brace: Φ20, Steel Q235, processed and painted
Column brace: Φ20, Steel Q235, processed and painted
Tie rod: Φ89*3, Steel Q235, processed and painted
Ordinary bolt: M12 Galvanized bolt
Roof Purlin: C160*60*2.5, Steel Q235, galvanized and painted
Roof panel: Sandwich panel or corrugated steel sheet
Sky light: 6mm thick PVC
Accessories: Glass cement, self-tapping screws, etc.
Edge cover: 0.4mm steel sheet profile trimming
Gutter: 0.4mm thick sheet steel profile or galvanized sheet
Down pie: Φ110PVC
Walls Purlin: C160*60*2.5, Steel Q235, painted
Wall: Sandwich panel or corrugated steel plate
Accessories: Glass cement, self-tapping screws, etc.
Edge cover: 0.4mm steel sheet profile trimming
Ventilation: Ventilation ball
Doors & windows: Rolling door/sliding door PVC/alu/steel/window
Our Steel Structure Fabrication Factory

Our steel structure fabrication facility spans 35,000㎡ with a workshop area of 20,000㎡. We operate multiple light/heavy H steel production lines, BOX production lines, C/Z purlin production lines, and various profiling steel sheet machines equipped with advanced technology including plasma cutting machines.

Quick Install Rock Wool Steel Fabricated Buildings Q235B Q355B 0
Installation Process

We provide detailed construction drawings prior to installation for each project. Our experienced engineers can guide the installation on-site, or we can complete the installation with our professional construction team.

Quick Install Rock Wool Steel Fabricated Buildings Q235B Q355B 1
