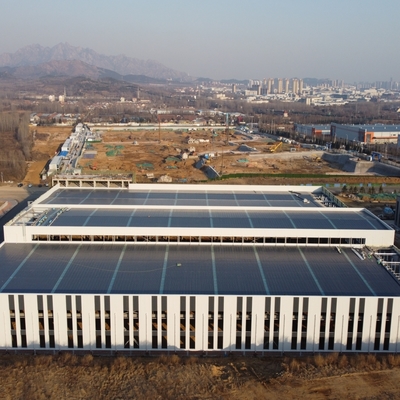

Q235B Prefabricated Steel Warehouse with Glass Wool Panels

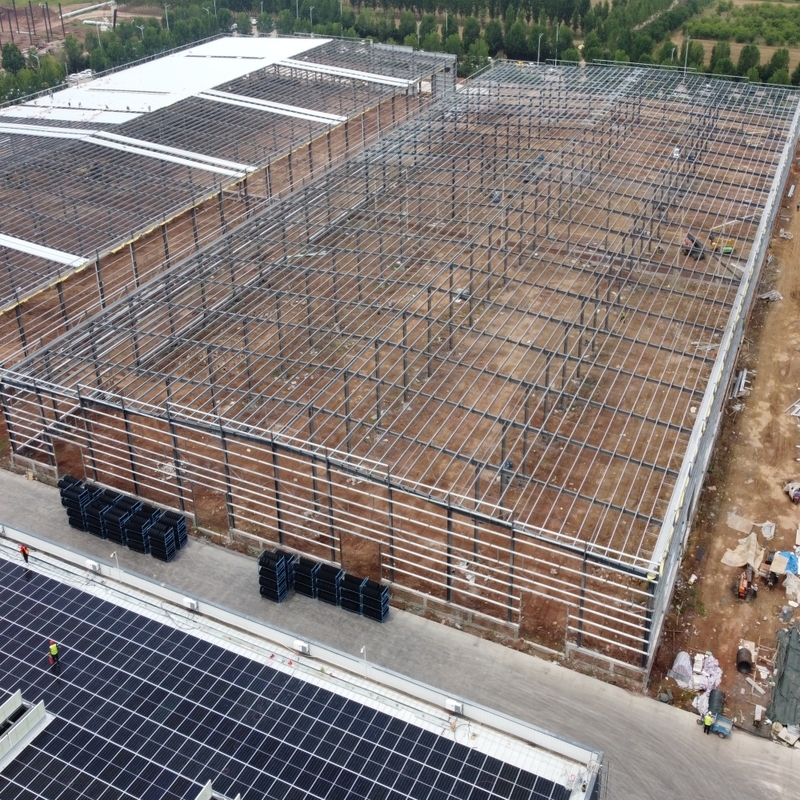

Prefabricated Steel Structure Warehouse/Steel Godown/Steel Buildings are engineered for durability and efficiency. These structural steel frame workshops feature a single ridge and double span design, with load-bearing components including steel columns, beams, foundations, and roof trusses.

• Simple yet robust design structure
• Lightweight with high strength-to-weight ratio
• Streamlined production and installation process
• Large span capability for spacious interiors
• Rapid construction timeline
• Cost-effective solution
• Excellent earthquake resistance

• Main structure: H section steel Q355 with alkyd painting (two primary, two finish coats)
• Roof purlin: XZ160*60*20*2.5, galvanized
• Wall purlin: XZ160*60*20*2.5, galvanized
• Fasteners: Grade 10.9 intensive bolts, M20+2 turn buckle bolts, M24 anchor bolts

• Cross brace: Φ20 round steel bar Q235
• Angle brace: L50*5 angle steel Q235
• Column bracing: Φ25 round steel bar Q235
• Tie bar: Φ127*3 steel pipe Q235
• Batter brace: Φ32*2.5, Φ12 round steel bar Q235

• Roof panel: Glass wool sandwich panel
• Wall panel: Glass wool sandwich panel
• Edge cover: 0.5mm color plate, angle Alu
• Ventilation: Φ600 stainless steel unpowered ventilator
• Lighting: 1.2mm FRP double layer skylight band

Our 35,000㎡ fabrication facility features advanced production lines including light/heavy H steel production, BOX production, and C/Z purlin lines, equipped with plasma cutting machines and profiling steel sheet equipment.

• Structural steel fabrication, painting, galvanizing, and pre-assembly
• Complete design, fabrication, and installation of prefabricated steel structures
• Fabrication drawing development based on architectural plans
• Comprehensive engineering consulting services

All components are packed for ocean transportation in 40'HQ containers, with careful loading by skilled workers using cranes and forklifts to prevent damage during transit.
