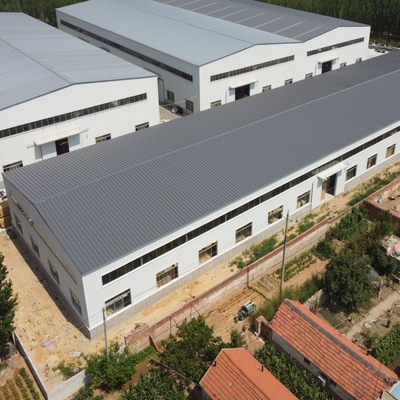

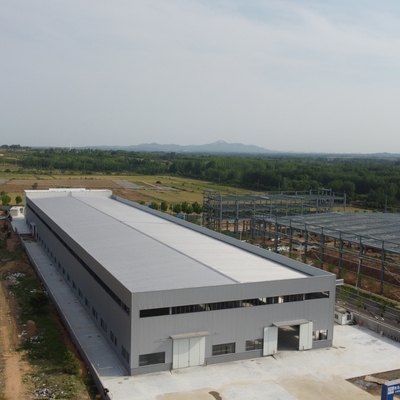

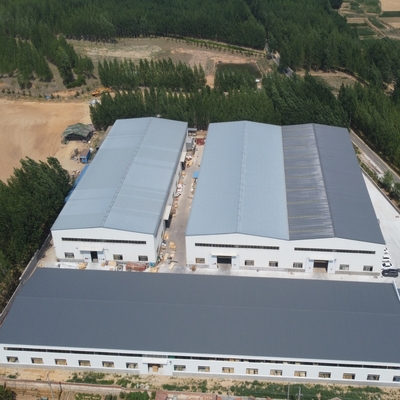

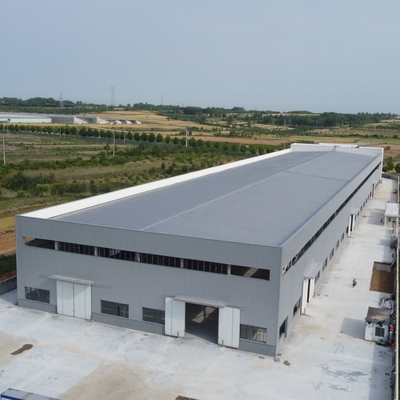

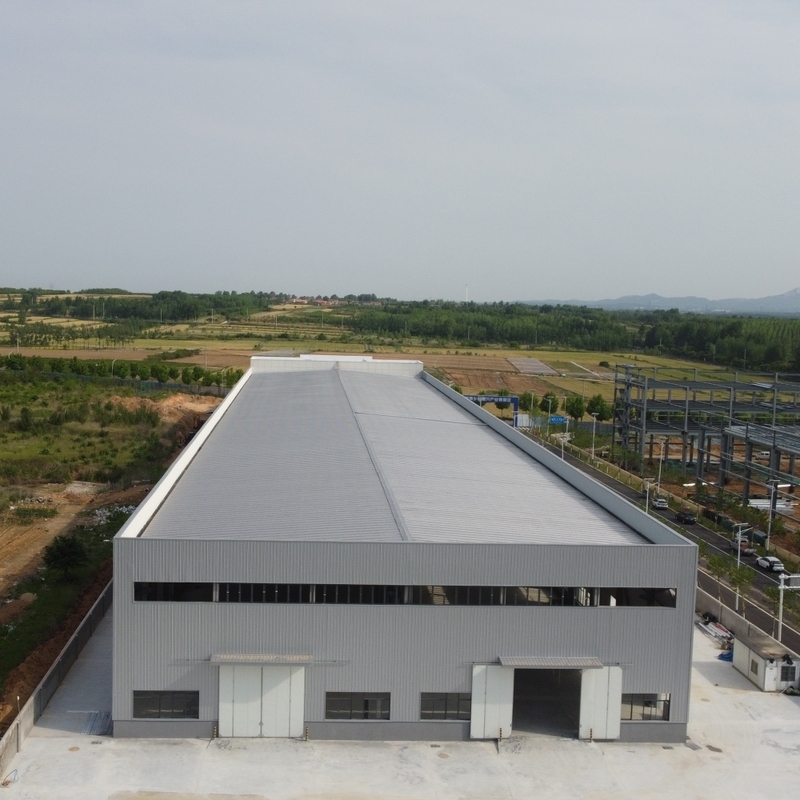

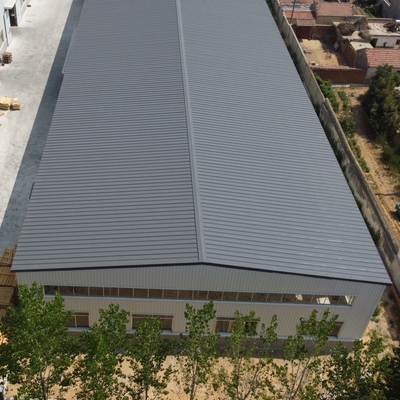

Q235B Prefabricated Steel Structure Workshop with Rock Wool Insulation

Large Image : Q235B Prefabricated Steel Structure Workshop with Rock Wool Insulation

Product Details:

Place of Origin:	China
Brand Name:	Ruly Steel
Certification:	SGS, BV, ISO
Model Number:	Ruly0417

Payment & Shipping Terms:

Minimum Order Quantity:	300 Square Meter
Price:	USD29-USD99 Per Square Meter
Packaging Details:	Steel frame pallets and loaded into 40’HQ
Delivery Time:	30 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	20000 Square Meter Per Month

Contact Now

Q235B Prefabricated Steel Structure Workshop with Rock Wool Insulation

Description

Application:	Prefabricated Workshop Buildings	Type:	Steel Structure Workshop
Raw Steel Material:	Q235B, Q355B, ASTM A36	Shot Blasting Level:	Sa 2.5
Service Life:	50 Years	Wall And Roof:	Rock Wool
Surface Treatment:	Painting	Working Scope:	Design,Fabrication, Installation
Columns & Beams:	H-section Steel	Standard:	AISC, ASTM, BS, DIN, GB, JIS
Highlight:	Prefabricated Steel Q235 Structure Building , Q235B Steel Structure Garment Factory , Sa 2.5 Steel Structure Factory

Prefabricated Steel Structure Building Q235B Steel Structure Garment Factory

Product Specifications

Attribute	Value
Application	Prefabricated Workshop Buildings
Type	Steel Structure Workshop
Raw steel material	Q235B, Q355B, ASTM A36
Shot blasting level	Sa 2.5
Service life	50 Years
Wall and Roof	Rock wool
Surface treatment	Painting
Working scope	Design, Fabrication, Installation
Columns & Beams	H-section steel
Standard	AISC, ASTM, BS, DIN, GB, JIS

Detailed Specifications

Component	Specification	Details
Steel Frame	H section steel	Q235 steel plate thickness: 8-30mm
Welding	Automatic submerged arc welding
Rust removal	Sand blasting
Surface finish	Alkyd paint or galvanized
Intensive bolt	M20, Grade 10.9
Supporting System	Angle brace	L50x4, Steel Q235, processed and painted
Horizontal brace	Φ20, Steel Q235, processed and painted
Column brace	Φ20, Steel Q235, processed and painted
Tie rod	Φ89*3, Steel Q235, processed and painted
Ordinary bolt	M12 Galvanized bolt
Roof	Purlin	C160602.5, Steel Q235, galvanized and painted
Roof panel	Sandwich panel or corrugated steel sheet
Sky light	6mm thick PVC
Walls	Purlin	C160602.5, Steel Q235, painted
Wall	Sandwich panel or corrugated steel plate
Ventilation	Ventilation ball
Doors & windows	Rolling door/sliding door PVC/alu/steel/window

Our Steel Structure Fabrication Facility

Our steel structure fabrication factory covers 35,000㎡ with 20,000㎡ of workshop space. We operate multiple production lines including:

Light/heavy H steel production lines
BOX production lines
C/Z purlin production lines
Profiling steel sheet machines
Advanced equipment including plasma cutting machines

Our Service Scope

Structural steel fabrication, painting, galvanizing, and pre-assembly
Complete design, fabrication, and installation of prefabricated steel structure buildings
Detailed fabrication drawings based on your architectural plans
Professional engineering consulting services

Packing and Transportation

All structural components, panels, bolts, and accessories are packed to withstand ocean transportation in 40'HQ containers. Our skilled workers use cranes and forklifts at our factory loading site to ensure damage-free loading.
