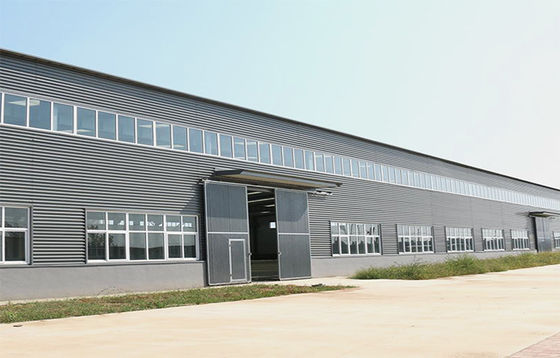

Prefabricated Steel Warehouse Workshop with 50-Year Lifespan

Large Image : Prefabricated Steel Warehouse Workshop with 50-Year Lifespan

Product Details:

Place of Origin:	China
Brand Name:	Ruly Steel
Certification:	SGS, BV, ISO
Model Number:	Ruly0493

Payment & Shipping Terms:

Minimum Order Quantity:	500 Square Meter
Price:	USD29-USD99 Per Square Meter
Packaging Details:	As request
Delivery Time:	30 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	20000 Square Meter Per Month

Contact Now

Prefabricated Steel Warehouse Workshop with 50-Year Lifespan

Description

Raw Steel Material:	Q235B, Q355B	Surface Treatment:	Painting
Shot Blasting Level:	Sa 2.5	Service Life:	50 Years
Wall And Roof:	Glass Wool	Type:	Truss Roof Steel Warehouse
Working Scope:	Design, Fabrication, Installation
Highlight:	Q355B Steel Structure Building Warehouse , Prefabricated Steel Structure Building Workshop

Prefabricated Large Span Steel Structure Building Metal Warehouse Workshop

Product Specifications

Raw steel material	Q235B, Q355B
Surface treatment	Painting
Shot blasting level	Sa 2.5
Service life	50 Years
Wall and Roof	Glass wool
Type	Truss roof steel warehouse
Working scope	Design, Fabrication, Installation

Product Overview

Our prefabricated large-span steel structure buildings offer simple design, lightweight construction, and high strength. These metal warehouse workshops feature convenient production and installation, large span spaces, short construction periods, and competitive pricing. With excellent earthquake resistance, they enhance overall building seismic performance, making them ideal for industrial applications.

These lightweight steel structures are widely used in industrial, agricultural, commercial, and service buildings including offices, warehouses, sports facilities, entertainment venues, and residential buildings. They are also suitable for renovation projects, temporary structures, and areas with material or transportation limitations.

Project Specifications

Structure Type	Portal frame, single ridge, two slopes, single span
Length	30m-150m
Width	9m-36m
Eave Height	4.5m-12m
Roof Slope	10%
Gable Wall Column Spacing	7.5m
Roof	Steel cladding sheet, sandwich panel
Wall	Steel cladding sheet, sandwich panel
Door	Sliding door
Window	Ribbon Skylight
Height difference between indoor and outdoor	300mm

Material Specifications

Item	Details
Material	Carbon structural steel
Production Lead Time	Normally 45 days after down payment (varies by quantity)
Quality Certification	Factory quality certificate, third-party available upon request
Dimensions	H beam: 4000-15000mm length, 200-1200mm height
Thickness	Web plate: 6-32mm, Wing plate: 6-40mm
Color Options	Customizable to customer requirements
Minimum Order Quantity	1000 m² (width × length × eave height)

Key Components

Main Frame: H Steel beams, Q235/Q345 steel H beams and columns (painted or galvanized), box steel, galvanized C section or steel pipe
Secondary Frame: Galvanized C or Z purlins, steel bracing, tie bars, knee braces, flashing
Purlin: C120-C320, Z100-Z200 sizes available
Column Options: X-type, tree type, lattice, cross, box designs
Fasteners: Plain bolts and high-strength bolts
Roof & Wall: PU sandwich panel, rockwool sandwich panel, or corrugated steel sheet
Surface Treatment: Two layers of rust-proof painting or hot-dip galvanized

Galvanized Steel Structure Components

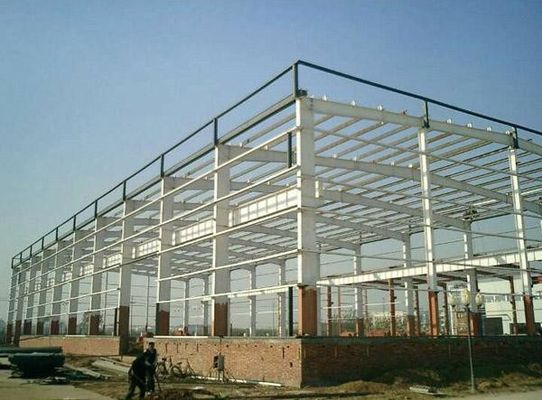

Installation Process

Packing and Transportation

All structural components, panels, bolts, and accessories are packed securely for ocean transportation in 40'HQ containers. Our skilled workers use cranes and forklifts at our factory loading site to prevent damage during loading.

Request a Quote

Please provide the following information for an accurate quotation:

1	Location (where will be built?)	_____country, area
2	Size: length × width × height	_____mm × _____mm × _____mm
3	Wind load (max. wind speed)	_____kn/m², _____km/h, _____m/s
4	Snow load (max. snow height)	_____kn/m², _____mm
5	Anti-earthquake requirements	_____level
6	Brick wall needed	If yes, 1.2m high or 1.5m high
7	Thermal insulation	EPS, fiberglass wool, rockwool, PU sandwich panels or metal steel sheets
8	Door quantity & size	_____units, _____(width)mm × _____(height)mm
9	Window quantity & size	_____units, _____(width)mm × _____(height)mm
10	Crane requirements	If needed: _____units, max. lifting weight____tons; max. lifting height _____m
