Prefabricated Steel Structure Workshop with H-Section Beams Q235B Q355B

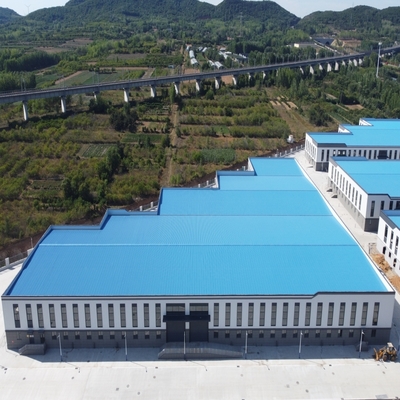

Large Image : Prefabricated Steel Structure Workshop with H-Section Beams Q235B Q355B

Product Details:

Place of Origin:	Qingdao,China
Brand Name:	Ruly Steel
Certification:	CE,AISC,SGS, BV, ISO,GB
Model Number:	RulyX034

Payment & Shipping Terms:

Minimum Order Quantity:	200 square meters
Price:	USD25-USD45 Per Square Meter
Packaging Details:	40HQ/Open top container
Delivery Time:	20 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	20,000 square meters or 1,500 tons per month

Contact Now

Prefabricated Steel Structure Workshop with H-Section Beams Q235B Q355B

Description

Features:	Prefab Steel Structure, Large Span, Multi-Floor	Raw Steel Material:	Q235B, Q355B, ASTM A36
Application:	Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part	Surface Treatment:	Painting Or Hot-DIP Galvanized
Service Life:	50 Years	Wall And Roof:	Steel Cladding Sheet,Sandwich Panel
Columns & Beams:	H-Section Steel	Certification:	CE, AISC, SGS, BV, ISO, GB
Drawing:	CAD, TEKLA, 3D Model, PKPM, BIM	HS Code:	9406900090
Installation:	Engineer Guidance On Site	Shot Blasting Level:	SA 2.5
Transport Package:	Standard Export Package Or Customer′s Requirement	Production Capacity:	30000ton/Year
Connection Form:	Bolt Connection	Parapet Wall:	As Requested
Highlight:	Industrial Prefabricated Metal Workshop , Durable Prefabricated Metal Workshop , Durable Industrial Steel Structure Workshop

Durable Industrial Factory Steel Structure Construction Building

Product Specifications

Attribute	Value
Raw Steel Material	Q235B, Q355B, ASTM A36
Application	Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part
Surface Treatment	Painting or Hot-DIP Galvanized
Service Life	50 Years
Wall and Roof	Steel cladding sheet, Sandwich Panel
Columns & Beams	H-Section Steel
Certification	CE, AISC, SGS, BV, ISO, GB
Drawing	CAD, TEKLA, 3D Model, PKPM, BIM
HS Code	9406900090
Installation	Engineer Guidance on Site
Shot Blasting Level	SA 2.5
Transport Package	Standard Export Package or Customer′s Requirement
Production Capacity	30000ton/Year
Features	Prefab Steel Structure, Large Span, Multi-Floor
Connection Form	Bolt Connection
Parapet Wall	As Requested

Key Features

Lightweight construction with high strength-to-weight ratio
Excellent seismic performance due to uniform material properties
Faster construction speed and lower cost compared to traditional materials
Environmentally friendly with recyclable materials

Technical Specifications

Component	Specification
Steel Frame	H section steel \| Q235/Q355 steel 8mm/10mm
Welding	Automatic submerged arc welding
Rust removal	Sand blasting
Surface finish	Alkyd paint or galvanized
Intensive bolt	M20, Grade 10.9
Supporting System	Angle brace \| L50x4, Steel Q235, processed and painted
Roof Structure	Purlin: C160602.5, Steel Q235, galvanized and painted
Wall Structure	Purlin: C160602.5, Steel Q235, painted

Project Showcase

High-End Intelligent Hydraulic Machine Tool Equipment

Size: Total Area 9,702 Sqm

Steel Structure Weight: 630Ton

Logistics Steel Warehouse For High-Speed Rail Station

Size: Total Area 24,570 Sqm

Steel Structure Weight: 985Ton

Textile Manufacturing Machine Tool Equipment

Size: Total Area 6,615 Sqm

Steel Structure Weight: 750Ton

Our Services

Structural steel fabrication, painting, galvanizing, pre-assembly
Designing, fabrication and installation for prefabricated steel structures
Detailed fabrication drawings based on your architectural plans
Technical advice for usage, maintenance and improvements

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a manufacturer with our own factory. You're welcome to visit our facility.

Is your price competitive?

We offer the best price for equivalent quality and the best quality for equivalent price.

Can you provide installation support?

We provide detailed installation drawings and can send engineers or a full team upon request.

Do you offer design services?

Yes, we provide complete design solutions using AutoCAD, PKPM, Tekla Structures and other professional software.

Request a Quote

Please provide the following information for an accurate quotation:

1. Location (where will it be built?)	_____country, area
2. Size: lengthwidthheight	_____mm_____mm_____mm
3. Wind load (max. wind speed)	_____kn/m2, _____km/h, _____m/s
4. Snow load (max. snow height)	_____kn/m2, _____mm
5. Anti-earthquake requirements	_____level
