Product Details:
|
Features: | Prefabricated Steel Buildings | Application: | Logistics Steel Structure Warehouse |
---|---|---|---|
Type: | Steel Structure Warehouse | Raw Steel Material: | Q235B, Q355B |
Surface Treatment: | Painting Or Hot-dip Galvanize | Service Life: | 50 Years |
Wall And Roof: | Glass Wool | Working Scope: | Design,Fabrication, Installation |
Highlight: | Logistics Steel Structure Warehouse,Prefabricated Steel Structure Warehouse,Logistics Steel Structure Building Construction |
Application | Logistics Steel Structure Warehouse |
Features | Prefabricated Steel Buildings |
Type | Steel Structure Warehouse |
Raw steel material | Q235B, Q355B |
Surface treatment | Painting or Hot-dip Galvanize |
Service life | 50 Years |
Wall and Roof | Glass wool |
Working scope | Design, Fabrication, Installation |

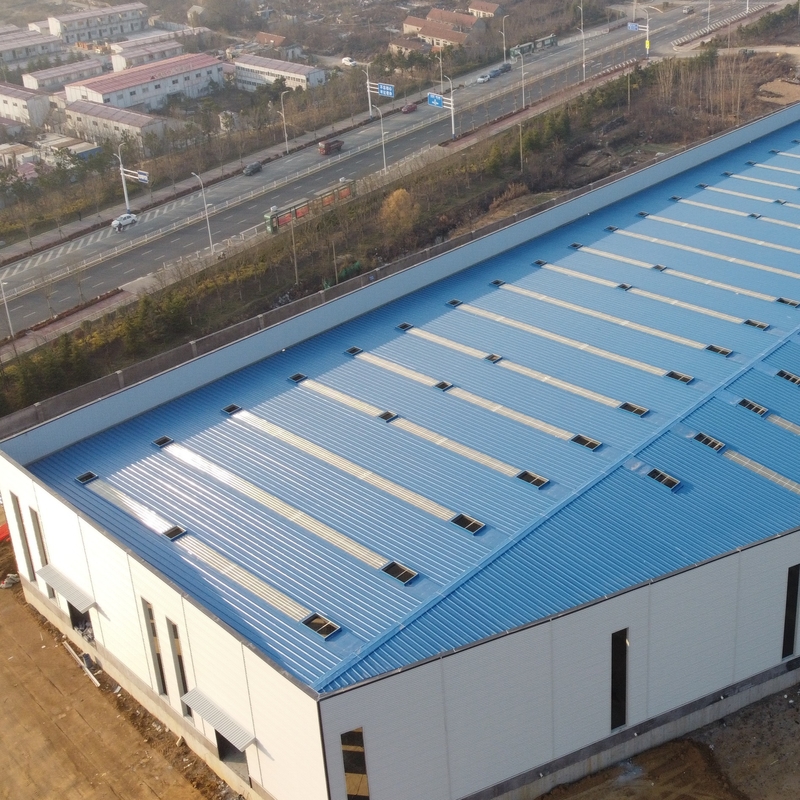

Our prefabricated steel structure warehouse offers superior construction efficiency with factory-prefabricated components that enable rapid on-site assembly. A 6,000 square meter building can be installed in just 40 days.
Structure Type | Portal frame, single ridge, two span |
Dimensions | 160m (L) × 60m (W) × 12m (Eave Height) |
Roof Slope | 10% |
Gable Wall Column Spacing | 7.5m |
Roof/Wall Material | 75mm thick Glass wool sandwich panel |
Door/Window | Sliding door / Ribbon Skylight |
Component | Specification |
---|---|
Main Structure | H section steel Q355, alkyd painting |
Roof/Wall Purlin | XZ160*60*20*2.5, galvanized |
Fasteners | Grade 10.9 intensive bolts, M20/M12 galvanized bolts |
Bracing System | Round steel bars and angle steel (Q235), painted |
All components are securely packed for ocean transportation in 40'HQ containers. Our skilled workers handle loading with cranes and forklifts to prevent damage during transit.
We design and fabricate customized steel structures for diverse applications including warehouses, workshops, hangars, commercial buildings, and industrial facilities.
Please provide the following information for an accurate quotation:
1. Location | Country and area where building will be constructed |
2. Dimensions | Length × Width × Height (in mm) |
3. Environmental Factors | Wind load, snow load, and earthquake resistance requirements |
4. Wall Specifications | Brick wall height (if applicable) and insulation requirements |
5. Accessories | Door/window quantities/sizes and crane specifications |
