Prefabricated Steel Structure Warehouse Customized H-Section Beams

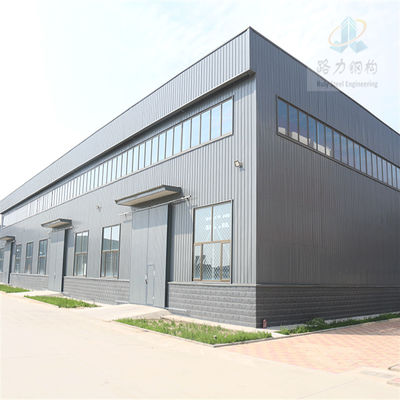

Large Image : Prefabricated Steel Structure Warehouse Customized H-Section Beams

Product Details:

Place of Origin:	Qingdao China
Brand Name:	Ruly
Certification:	CE，ASTM， ISO9001
Model Number:	RulyS05

Payment & Shipping Terms:

Minimum Order Quantity:	500 Square Meters
Price:	USD20-USD89 Per Square Meter
Packaging Details:	20GP, 40HC,40OP Shipping container standard package
Delivery Time:	25-30 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	8000SQM per month

Contact Now

Prefabricated Steel Structure Warehouse Customized H-Section Beams

Description

Features:	Prefab Steel Structure, Large Span, Multi-Floor	Beam:	Welded H-Section Steel
Cannopy:	Customized	Color:	Customized
Door Type:	Sliding/Rolling	Measurement:	According To The Customer's Requirement
Paint:	Alkyd Primer DFT 75um	Purlin:	C/Z Galvanized Steel(Q235)
Raw Steel Material:	Q235B, Q355b, ASTM A36	Roof Pitch:	10%, 12%, 16%, 25%, 30%etc
Shipment By:	Container Or Bulk Ship	Size:	Customized
Standard:	GB, ASTM, BS	Tie Bar:	Steel Tube
Wall Panel:	Steel Color Sheet, Sandwich Panel	Window Type:	Fixed/Sliding
Member:	Steel Column	Carbon Structural Steel:	Q355
Application:	Steel Workshop, Steel Structure Platform, Steel Fabricated House, Structural Roofing, Frame Part, Steel Walkway And Floor, Steel Structure Bridge	Keyword:	Prefabricated Steel Structure Warehouse/Workshop
Service Life:	50 Years	Installation:	Engineer Guidance On Site
Drawing:	CAD, Tekla, 3D Model, Pkpm, Bim	Usage:	Steel Structure Construction
Surface Treatment:	Painting Or Hot-DIP Galvanized	Transport Package:	Standard Export Package Or Customers Requirement
Origin:	China	Production Capacity:	50000 Square Meter Per Month
Type Of Steel For Building Structure:	H-Section Steel	Product Name:	High Quality And Low Cost Prefabricated Steel Structure
Columns & Beams:	H-Section Steel	Residential Wall Stru Building Structure:	Steel Cladding Sheet/Sandwich Panel
Specification:	Prefab Steel Buildings	Wall And Roof:	Steel Cladding Sheet, Sandwich Panel
HS Code:	9406900090	Parapet Wall:	As Requested
Highlight:	Prefab Steel Structure Warehouse , Prefab Q235B Steel Structure Warehouse , Cold Storage Prefabricated Steel Workshop

Prefab Steel Structure Warehouse Prefabricated Cold Storage Workshop

Product Overview

Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse designed for cold storage applications. This steel structure building is ideal for industrial use with customizable dimensions and specifications.

Key Specifications

Attribute	Value
Beam	Welded H-Section Steel
Raw Steel Material	Q235B, Q355b, ASTM A36
Purlin	C/Z Galvanized Steel(Q235)
Wall Panel	Steel Color Sheet, Sandwich Panel
Service Life	50 Years
Production Capacity	50,000 Square Meter Per Month
Surface Treatment	Painting or Hot-DIP Galvanized

Project Description

This prefabricated steel structure building is designed for industrial applications such as warehouses and cold storage facilities. The construction floor area can be customized according to requirements, with standard components including welded steel beams & columns, crane systems, steel cladding sheets, purlins, windows and doors.

Main steel frame structure

Laying purlin process

Technical Parameters

Main Steel Frame System

Main structure: H section steel Q345 with alkyd painting
Roof purlin: XZ160*60*20*2.5, galvanized
Wall purlin: XZ160*60*20*2.5, galvanized
Intensive bolt: Grade 10.9

Bracing System

Cross brace: Φ20 round steel bar Q235
Angle brace: L50*5 angle steel Q235
Column bracing: Φ25 round steel bar Q235

Wall & Roof System

Roof panel: Corrugated steel plate or sandwich panel
Wall panel: Corrugated steel plate or sandwich panel
Sky lighting band: 1.2mm FRP, double layer

Installation Process

We provide detailed construction drawings before installation and engineer guidance on site to ensure proper assembly of all components.

On-site installation guidance

Why Choose Our Steel Structures?

Cost-effective: Professional design reduces construction time and material costs
Eco-friendly: Specialized cladding materials provide excellent insulation
Durable: 50+ year service life with proper maintenance
Customizable: Tailored solutions for specific project requirements

About Qingdao Ruly Steel Engineering Co., Ltd

We are a professional steel structure fabrication and engineering company located in Qingdao, China, specializing in design, manufacturing, and installation of prefabricated steel structures for various industrial applications.

Our 35,000 square meter facility produces over 1,500 tons of steel structures monthly, with certifications including ISO9001, ISO14001, and ASTM standards.

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a manufacturer with our own production facility. Customers are welcome to visit our factory.

Can you provide installation services?

We provide detailed installation drawings and can send engineers or a complete installation team upon request.

What is your typical delivery time?

Delivery time depends on order quantity, typically 40 days after receiving deposit for standard projects.
