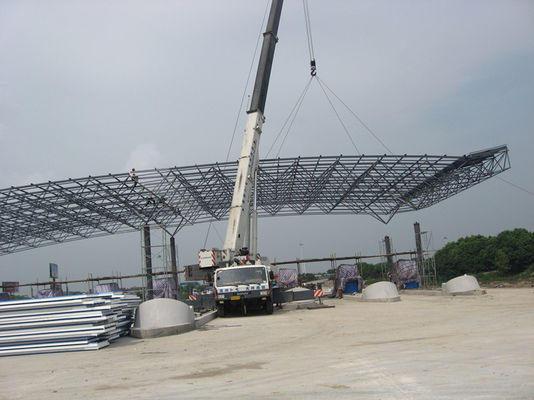

Prefabricated Steel Space Frame Canopy for Toll Stations

Large Image : Prefabricated Steel Space Frame Canopy for Toll Stations

Product Details:

Place of Origin:	China
Brand Name:	Ruly Steel
Certification:	CE,AISC,SGS, BV, ISO,GB
Model Number:	RULYZ012

Payment & Shipping Terms:

Minimum Order Quantity:	500 Square meters
Price:	USD25-USD95 Per Square meter
Packaging Details:	As request
Delivery Time:	30 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	2000 Ton Per Month

Contact Now

Prefabricated Steel Space Frame Canopy for Toll Stations

Description

Application:	Structural Roofing	Type:	Light, Space Frame Structure
Material:	Q235/Q355 Low Carbon Steel	Raw Steel Material:	Q235B, Q355B, ASTM A36
Surface Treatment:	Painting Or Hot-dip Galvanize	Service Life:	50 Years
Working Scope:	Design,Fabrication, Installation
Highlight:	Galvanized Steel Structure Toll Station , Q235B Steel Structure Toll Station , Prefabricated Steel Structure Canopy Building

Construction Space Frame Prefabricated Steel Structure Toll Station Canopy Building

Product Specifications

Attribute	Value
Application	Structural Roofing
Type	Light, Space Frame Structure
Material	Q235/Q355 Low Carbon Steel
Raw steel material	Q235B, Q355B, ASTM A36
Surface treatment	Painting or Hot-dip Galvanize
Service life	50 Years
Working scope	Design, Fabrication, Installation

Key Features

Excellent wind, snow, and seismic resistance with high structural safety
Fast installation enables early project completion
80% factory prefabrication meets national prefab building standards
Simple installation requiring only basic crane equipment
Rapid construction - 500-1000m² daily installation capacity
Flexible side modeling options

Technical Specifications

Component	Specification
Main Steel Frame
Column	Q235, Q345 Welded H Section Steel
Beam	Q235, Q345 Welded H Section Steel
Secondary Frame
Purlin	Q235 C and Z purlin
Knee brace	Q235 Angle Steel
Tie Rod	Q235 Circular Steel Pipe
Brace	Q235 Round Bar
Vertical and Horizontal Support	Q235 Angle Steel, Round Bar or Steel Pipe
Maintenance System
Roof Panel	EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel / Steel Sheet
Wall Panel	Sandwich Panel / Corrugated Steel Sheet
Performance
Live load on Roof	120kg/m² (Color steel panel surrounded)
Wind Resistance Grade	12 Grades
Earthquake-resistance	8 Grades
Structure Usage	Up to 50 years
Temperature Range	-50°C to +50°C
Certifications	CE, SGS, ISO9001:2008, ISO14001:2004

Production Line

Installation Process

We provide detailed construction drawings for each project prior to installation. Our engineers can supervise the installation process or our construction team can handle the complete on-site assembly.

Packaging & Shipping

All structural components, panels, bolts, and accessories are securely packed in standard ocean transportation packaging and loaded into 40'HQ containers. Our skilled workers use cranes and forklifts to prevent damage during loading at our factory.

Quotation Requirements

Please provide the following information for an accurate quote:

Item	Details Required
1	Project location (country/region)
2	Structure dimensions (L×W×H in mm)
3	Maximum wind load (kn/m², km/h, or m/s)
4	Maximum snow load (kn/m² or mm)
5	Earthquake resistance level required
6	Brickwall requirements (height if needed)
7	Thermal insulation specifications
8	Door quantity and dimensions
9	Window quantity and dimensions
10	Crane requirements (quantity, capacity, height)
