Prefab Steel Workshop with Crane Beam Large Span Q235B Q355B

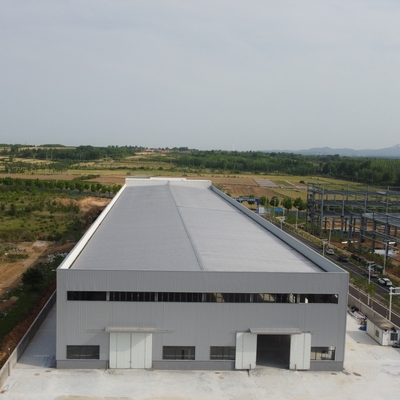

Large Image : Prefab Steel Workshop with Crane Beam Large Span Q235B Q355B

Product Details:

Place of Origin:	China
Brand Name:	Ruly Steel
Certification:	CE,AISC,SGS, BV, ISO,GB
Model Number:	RULYY006

Payment & Shipping Terms:

Minimum Order Quantity:	200 Square Meter
Price:	USD29-USD99 Per Square Meter
Packaging Details:	As request
Delivery Time:	30 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	20000 Square Meter Per Month

Contact Now

Prefab Steel Workshop with Crane Beam Large Span Q235B Q355B

Description

Features:	Light Steel Structure	Application:	Steel Structure Industrial Workshop
Type:	Prefab Steel Structure Workshop	Raw Steel Material:	Q235B, Q355B
Surface Treatment:	Painting Galvanized	Main Body Color:	Custom
Service Life:	50 Years	Wall And Roof:	Steel Cladding Sheet,Sandwich Panel
Working Scope:	Design,Fabrication, Installation
Highlight:	Welded H Section Steel Workshop , H Section Steel Structure Workshop , Q235B H Section Steel Workshop

Modular Prefab Welded H Section Steel Workshop With Crane Beam Large Span

Product Specifications

Attribute	Value
Application	Steel Structure Industrial Workshop
Features	Light Steel Structure
Type	Prefab Steel Structure Workshop
Raw steel material	Q235B, Q355B
Surface treatment	Painting Galvanized
Main Body Color	Custom
Service life	50 Years
Wall and Roof	Steel cladding sheet, Sandwich Panel
Working scope	Design, Fabrication, Installation

Product Description

Modular Prefab Steel Structure Welded H Section Steel Workshop With Crane Beam Large Span Energy Saving

Key Advantages

Seismic resistance: Strong triangular structure system capable of withstanding seismic intensity of 8 degrees or more
Wind resistance: Can withstand hurricanes up to 70 meters per second
Durability: Super anti-corrosive galvanized sheet construction with service life up to 100 years
Sound insulation: Walls provide up to 60 decibels sound insulation
Health & Environment: 100% recyclable materials, green building standards
Comfort: Efficient energy-saving system with breathing function for humidity control
Short construction period: 300m² building can be completed in 30 working days by 5 workers
Energy saving: Sandwich panels provide excellent thermal insulation, achieving 50% energy saving standards

Technical Specifications

Name	Modular Prefab Steel Structure Welded H Section Steel Workshop With Crane Beam Large Span Energy Saving
Structure Type	Gable frame, single ridge, clean span or two spans
Length Scope	50-150m
Width Scope	20-50m
Eave Height Scope	10m
Roof Slope	10-15%
Gable Wall Column Spacing	7.5m
Roof	Sandwich panel or single layer steel cladding sheet
Wall	Sandwich panel or single layer steel cladding sheet
Door	Sliding door, roller door, lifting door
Window	Fixed window, sliding window
Ventilator	Unpower ventilator, electric ventilator, fans

Material List and Technical Parameters

Component	Material	Specifications
Steel Frame	H section steel	Q235/Q355 steel 8mm/10mm
Welding	Automatic submerged arc welding
Rust removal	Sand blasting
Surface finish	Alkyd paint or galvanized
Intensive bolt	M20, Grade 10.9
Supporting System	Angle brace	L50x4, Steel Q235, processed and painted
Horizontal brace	Φ20, Steel Q235, processed and painted
Column brace	Φ20, Steel Q235, processed and painted
Tie rod	Φ89*3, Steel Q235, processed and painted
Ordinary bolt	M12 Galvanized bolt
Roof Purlin	C160602.5, Steel Q235, galvanized and painted
Roof panel	Sandwich panel or corrugated steel sheet

Our Steel Structure Fabrication Factory

Our factory covers 35,000㎡ with 20,000㎡ workshop area. We own three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines with advanced equipment including plasma cutting machines.

Our Services

Structural steel fabrication, painting, galvanizing, pre-assembly
Designing, fabrication and installation for Prefabricated steel structure buildings
Deepen or design the fabrication drawing or shop drawing based on your architectural drawing
Engineering consulting service

Quality Control

100% testing dimension tolerance <1mm
20% sample welding line ultrasonic testing, no fault, full penetration
20% magnetic powder testing, no bubble, no defect, Smooth and Full
Supply third-party inspection assistance

Packing and Transport

All structure components, panels, bolts and accessories are packed with standard packaging suitable for ocean transportation and loaded into 40'HQ containers. Our skilled workers use cranes and forklifts to prevent damage during loading.
