Prefab Steel Warehouse Building 100m x 30m Q235B Q355B

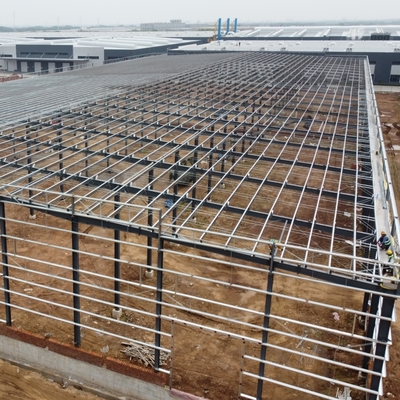

Large Image : Prefab Steel Warehouse Building 100m x 30m Q235B Q355B

Product Details:

Place of Origin:	Qingdao,China
Brand Name:	Ruly Steel
Certification:	CE,AISC,SGS, BV, ISO,GB
Model Number:	RULYC006

Payment & Shipping Terms:

Minimum Order Quantity:	200 square meters
Price:	USD19-USD39 Per Square Meter
Packaging Details:	40HQ/Open top container
Delivery Time:	20 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	20,000 square meters or 1,500 tons per month

Contact Now

Prefab Steel Warehouse Building 100m x 30m Q235B Q355B

Description

Features:	Prefab Steel Structure, Large Span, Multi-Floor	Raw Steel Material:	Q235B, Q355B, ASTM A36
Application:	Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part	Surface Treatment:	Painting Or Hot-DIP Galvanized
Service Life:	50 Years	Wall And Roof:	Steel Cladding Sheet,Sandwich Panel
Columns & Beams:	H-Section Steel	Shot Blasting Level:	SA 2.5
Certification:	CE, AISC, SGS, BV, ISO, GB	Installation:	Engineer Guidance On Site
Drawing:	CAD, TEKLA, 3D Model, PKPM, BIM	HS Code:	9406900090
Transport Package:	Standard Export Package Or Customer′s Requirement	Production Capacity:	30000ton/Year
Connection Form:	Bolt Connection
Highlight:	100m*30m Prefab Steel Warehouse Buildings , Prefab Steel Warehouse Buildings

100m×30m Steel Frame Structure Prefab Steel Warehouse Buildings

Product Specifications

Raw Steel Material	Q235B, Q355B, ASTM A36
Application	Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part
Surface Treatment	Painting or Hot-DIP Galvanized
Service Life	50 Years
Wall and Roof	Steel cladding sheet, Sandwich Panel
Columns & Beams	H-Section Steel
Shot Blasting Level	SA 2.5
Certification	CE, AISC, SGS, BV, ISO, GB
Installation	Engineer Guidance on Site
Drawing	CAD, TEKLA, 3D Model, PKPM, BIM
HS Code	9406900090
Transport Package	Standard Export Package or Customer's Requirement
Production Capacity	30000ton/Year
Features	Prefab Steel Structure, Large Span, Multi-Floor
Connection Form	Bolt Connection

Product Description

Our 100m×30m prefabricated steel structure warehouse offers a robust 3,000-square-meter storage solution with exceptional structural stability and space utilization. The steel framework provides high strength, stiffness, and excellent seismic resistance, capable of withstanding significant loads while ensuring long-term safety.

Key Advantages

Rapid Construction: Prefabricated components enable faster assembly compared to traditional concrete structures
Flexible Design: Open-span configuration allows for easy customization and future expansion
Durable Construction: Corrosion-resistant materials ensure low maintenance and extended service life
Eco-Friendly: Recyclable steel components support sustainable building practices
Cost-Effective: Efficient manufacturing and installation reduce overall project costs

Technical Specifications

Main Steel Frame
Column	Q235,Q355 welded H section steel
Beam	Q235,Q355 welded H section steel
Secondary Frame
Purlin	Q235 C and Z purlin
Knee brace	Q235 angle steel
Tie rod	Q235 circular steel pipe
Brace	A235 round bar
Vertical and horizontal support	Q235 angle steel, round bar or steel pipe
Maintenance System
Roof panel	EPS sandwich panel/glass fiber sandwich panel/rock wool sandwich panel/Pu sandwich panel/steel sheet
Wall panel	Sandwich panel/corrugated steel sheet
Performance Standards
Wind resistance grade	12 grades
Earthquake-resistance	8 grades
Structure usage	Up to 50 years

Company Profile

Qingdao Ruly Steel Engineering Co., Ltd specializes in steel structure design, fabrication, and construction. With a 35,000 square meter facility and production capacity exceeding 2,000 tons monthly, we serve global markets including Southeast Asia, South America, Middle East, Africa, and Australia. Our certifications include AWS D1.1, CE (EN 1090-1), ISO 14001, ISO9001, and ISO45001.

Processing and Fabrication

Our Service

Our Certifications

Packing and Loading

All structural components, panels, bolts, and accessories are packed for ocean transportation and loaded into 40'HQ containers. Our skilled workers use cranes and forklifts to ensure damage-free loading at our factory site.

Why Choose Us

Professional design team for customized solutions
Skilled fabrication with advanced equipment
Comprehensive one-stop service for complete projects
Quality control team ensuring product excellence
Dedicated after-sales support and maintenance guidance

Request a Quote

Please provide the following details for an accurate quotation:

1	Location (where will it be built?)	_____country, area
2	Size: length×width×height	_____mm×_____mm×_____mm
3	Wind load (max. wind speed)	_____kn/m², _____km/h, _____m/s
4	Snow load (max. snow height)	_____kn/m², _____mm
5	Anti-earthquake requirement	_____level
6	Brickwall needed or not	If yes, 1.2m high or 1.5m high
7	Thermal insulation	Specify material: EPS, fiberglass wool, rockwool, PU sandwich panels, or metal steel sheets
8	Door quantity & size	_____units, _____(width)mm×_____(height)mm
9	Window quantity & size	_____units, _____(width)mm×_____(height)mm
10	Crane needed or not	If yes, _____units, max. lifting weight____tons; max. lifting height _____m
