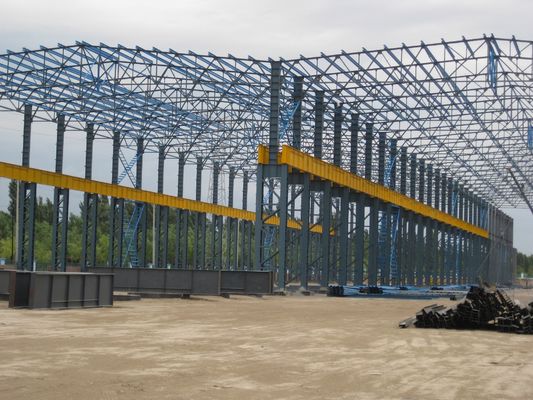

Prefab Steel Structure Workshop with Overhead Crane

Large Image : Prefab Steel Structure Workshop with Overhead Crane

Product Details:

Place of Origin:	China
Brand Name:	Ruly Steel
Certification:	CE,AISC,SGS, BV, ISO,GB
Model Number:	RULYZ011

Payment & Shipping Terms:

Minimum Order Quantity:	500 Square meters
Price:	USD25-USD95 Per Square meter
Packaging Details:	As request
Delivery Time:	30 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	2000 Ton Per Month

Contact Now

Prefab Steel Structure Workshop with Overhead Crane

Description

Application:	Steel Frame Workshop Buildings	Usage:	Steel Structure Workshop With Overhead Crane
Type:	Prefab Steel Structure Workshop	Raw Steel Material:	Q235B, Q355B, ASTM A36
Surface Treatment:	Painting Or Hot-dip Galvanize	Service Life:	50 Years
Wall And Roof:	Steel Cladding	Working Scope:	Design,Fabrication, Installation
Highlight:	ASTM A36 Steel Structure Building , Galvanized Prefab Steel Structure Building , Q235B Prefab Steel Structure Workshop

Prefab Steel Structure Building Workshop Shed For Industrial

Product Specifications

Application	Steel frame workshop buildings
Usage	Steel Structure Workshop With Overhead Crane
Type	Prefab Steel Structure Workshop
Raw steel material	Q235B, Q355B, ASTM A36
Surface treatment	Painting or Hot-dip Galvanize
Service life	50 Years
Wall and Roof	Steel cladding
Working scope	Design, Fabrication, Installation

Product Overview

Our low-cost prefabricated steel structure workshop buildings are ideal for industrial applications. These buildings feature a steel frame with metal plate enclosure system, offering durability and versatility for various construction needs.

Key Features

High strength-to-weight ratio for large-span constructions
Excellent material homogeneity and isotropy
Superior dynamic load bearing capacity
Short construction period with high industrialization
Precision manufacturing with excellent sealing properties

Technical Specifications

Material	Carbon structural steel
Production Lead Time	Typically 45 days after down payment (varies by quantity)
Quality Certification	Factory quality certificate, third-party available upon request
Dimensions	H beam: 4000-15000mm length, 200-1200mm height
Thickness	Web plate: 6-32mm, Wing plate: 6-40mm
Minimum Order Quantity	1000 m² (width × length × eave height)

Main Components

Base: Cement and steel foundation bolts
Main Frame: H Steel beams and columns (Q235/Q345 steel), painted or galvanized
Secondary Frame: Galvanized C/Z purlins, steel bracing, tie bars, knee braces
Roof & Wall: PU sandwich panel, Rockwool sandwich panel, or corrugated steel sheet
Doors/Windows: Sliding/rolling doors, aluminum alloy windows
Surface Treatment: Two layers of rust-proof paint or hot-dip galvanized

Manufacturing Capabilities

Our 35,000㎡ fabrication facility includes 20,000㎡ of workshop space equipped with:

Three light/heavy H steel production lines
BOX production lines
C/Z purlin production lines
Advanced profiling steel sheet machines
Plasma cutting equipment

Packing & Shipping

All components are carefully packed for ocean transportation in standard containers:

20' container: 5.69m × 2.34m × 2.18m (24-26m³, 17.5 ton)
40' container: 11.8m × 2.34m × 2.18m (54m³, 22 ton)
HC container: 13.58m × 2.34m × 2.71m (68m³, 29 ton)

Steel components are protected with blankets to prevent damage during transit.

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a manufacturer with our own factory. We welcome visits to see our production facilities and quality control processes firsthand.

How competitive are your prices?

We offer the best price for equivalent quality and the best quality for equivalent prices. Our goal is to minimize your costs while ensuring top-quality products.

Do you provide installation services?

We provide detailed installation drawings with every project. We can send engineers to guide installation or provide a complete construction team as needed.

Do you offer design services?

Yes, we provide complete design solutions using AutoCAD, PKPM, MTS, 3D3S, Tarch, and Tekla Structures (Xsteel). Services include proposal drawings, shop drawings, 3D models, and construction/installation drawings.

What is your typical delivery time?

Delivery typically takes 40 days after receiving deposit, depending on order quantity and destination port.
