Light Steel Space Frame Warehouse Metal Structure Prefab Layout Workshop
Product Specifications
| Raw Steel Material |
Q235B, Q355B, ASTM A36 |
| Application |
Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part |
| Surface Treatment |
Painting or Hot-DIP Galvanized |
| Service Life |
50 Years |
| Wall and Roof |
Steel cladding sheet, Sandwich Panel |
| Columns & Beams |
H-Section Steel |
| Certification |
CE, AISC, SGS, BV, ISO, GB |
| Drawing |
CAD, TEKLA, 3D Model, PKPM, BIM |
| HS Code |
9406900090 |
| Installation |
Engineer Guidance on Site |
| Shot Blasting Level |
SA 2.5 |
| Transport Package |
Standard Export Package or Customer′s Requirement |
| Production Capacity |
30000ton/Year |
| Features |
Prefab Steel Structure, Large Span, Multi-Floor |
| Connection Form |
Bolt Connection |
| Parapet Wall |
As Requested |
Key Features
- The weight capacity of steel structure is lighter than traditional building materials
- High strength and good toughness with uniform material provides excellent seismic performance
- Factory prefabrication and on-site installation enables faster construction speed and lower cost compared to reinforced concrete structures
- Environmentally friendly construction with recyclable materials that reduce resource waste
Technical Specifications
| Steel Frame |
H section steel | Q235/Q355 steel 8mm/10mm |
| Welding |
Automatic submerged arc welding |
| Rust removal |
Sand blasting |
| Surface finish |
Alkyd paint or galvanized |
| Intensive bolt |
M20,Grade 10.9 |
| Supporting System |
Angle brace | L50x4,Steel Q235, processed and painted |
| Horizontal brace |
Φ20, Steel Q235, processed and painted |
| Column brace |
Φ20, Steel Q235, processed and painted |
| Tie rod |
Φ89*3, Steel Q235, processed and painted |
| Ordinary bolt |
M12 Galvanized bolt |
| Roof Purlin |
C160*60*2.5,Steel Q235, galvanized and painted |
| Roof panel |
Sandwich panel or corrugated steel sheet |

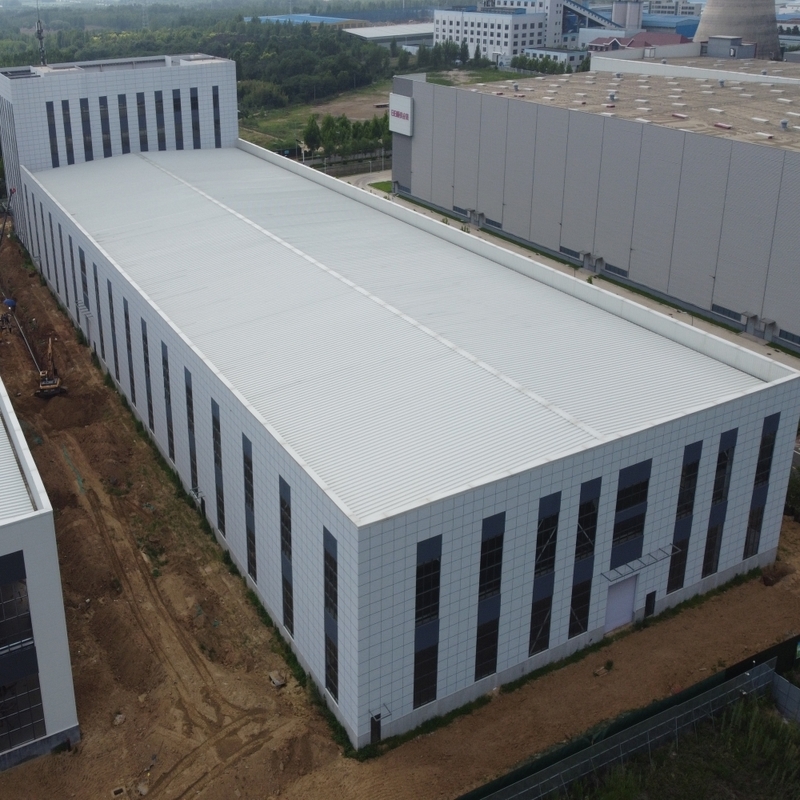

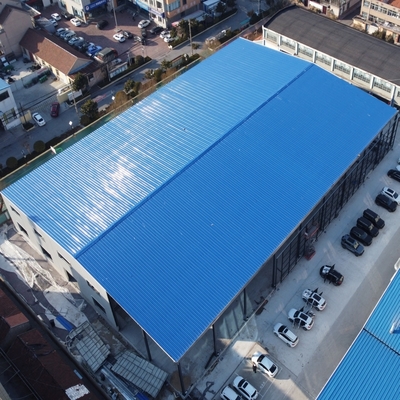

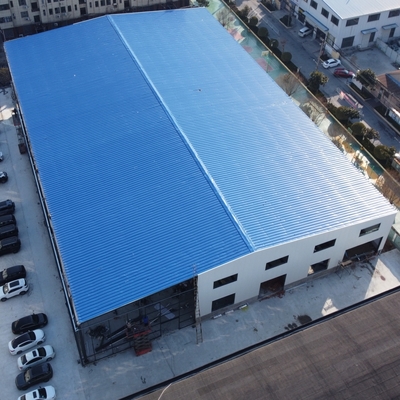

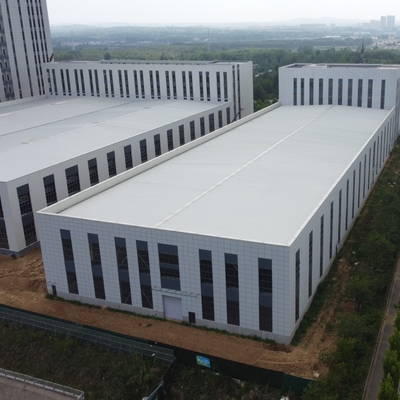

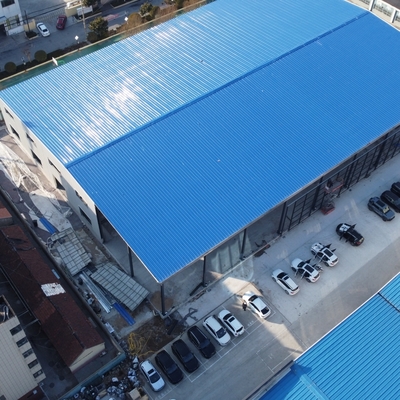

Project Showcase
Project Usage:
High-End Intelligent Hydraulic Machine Tool Equipment
Size of the plant:
Total Area 9,702 Sqm
Steel Structure Weight:
630Ton
Project Usage:
Logistics Steel Warehouse For High-Speed Rail Station
Size of the plant:
Total Area 24,570 Sqm
Steel Structure Weight:
985Ton
Project Usage:
Textile Manufacturing Machine Machine Tool Equipment
Size of the plant:
Total Area 6,615 Sqm
Steel Structure Weight:
750Ton
About Our Company
Qingdao Ruly Steel Engineering Co., Ltd is a professional steel structure fabrication and engineering company located in Qingdao, China. We integrate steel structure design, research and development, manufacturing and installation for various project types including prefabricated steel workshops, warehouses, logistics parks, and other civil building systems.
Our facility covers 35,000 square meters with a monthly production capacity exceeding 1500 tons. We manufacture various steel components including light/heavy H steel, BOX steel, cross shaped section steel, and more. Our company holds multiple certifications including ISO9001, ISO14001, GB/T28001, ASTM, and SGS.
Our Services
- Structural steel fabrication, painting, galvanizing, pre-assembly
- Designing, fabrication and installation for prefabricated steel structure buildings
- Deepening or designing fabrication drawings based on your architectural plans
- Technical advice for usage, maintenance and improvements
Packaging & Shipping
All structure components, panels, bolts and accessories are packed with standard ocean transportation packaging in 40'HQ containers. Our skilled workers ensure careful loading using cranes and forklifts to prevent damage.
Frequently Asked Questions
Are you a manufacture factory or trading company?
We are a manufacturer. You're welcome to visit our facility to see our quality control processes and production capabilities.
Is your price competitive compared with other companies?
We offer the best price for equivalent quality and the best quality for equivalent prices, working to reduce your costs while guaranteeing product quality.
Can you send engineers or whole team to install my project?
We provide detailed installation drawings for free and can send engineers or installation teams upon request.
Do you accept container loading inspection?
Yes, you're welcome to send inspectors at any production stage, including container loading.
Do you offer designing service for us?
Yes, we provide complete design solutions using AutoCAD, PKPM, MTS, 3D3S, Tekla Structures and other professional software.
Why Choose Us?
- Professional design team capable of custom drawings or quantity calculations
- Skilled fabrication team with advanced equipment and project-specific production schedules
- One-stop service with integrated project proposals
- Dedicated QC team ensuring product and service quality
- Comprehensive after-sales support for maintenance and technical questions
