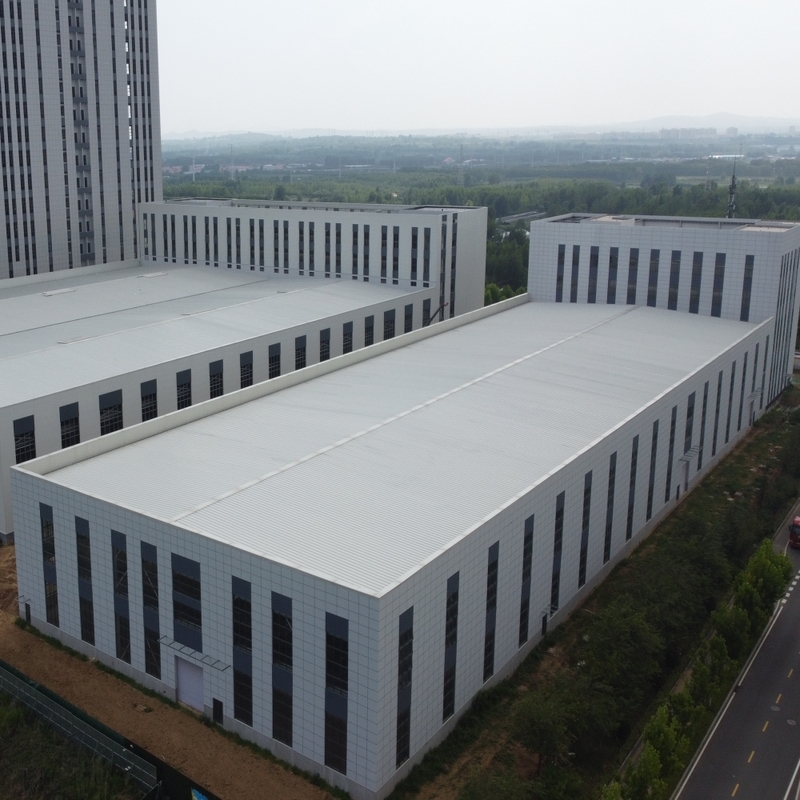

Prefab Steel Structure Workshop with H-Section Beams Q235B Q355B

Large Image : Prefab Steel Structure Workshop with H-Section Beams Q235B Q355B

Product Details:

Place of Origin:	Qingdao,China
Brand Name:	Ruly Steel
Certification:	CE,AISC,SGS, BV, ISO,GB
Model Number:	RulyX003

Payment & Shipping Terms:

Minimum Order Quantity:	200 square meters
Price:	USD25-USD45 Per Square Meter
Packaging Details:	40HQ/Open top container
Delivery Time:	20 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	20,000 square meters or 1,500 tons per month

Contact Now

Prefab Steel Structure Workshop with H-Section Beams Q235B Q355B

Description

Features:	Prefab Steel Structure, Large Span, Multi-Floor	Raw Steel Material:	Q235B, Q355B, ASTM A36
Application:	Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part	Surface Treatment:	Painting Or Hot-DIP Galvanized
Service Life:	50 Years	Wall And Roof:	Steel Cladding Sheet,Sandwich Panel
Columns & Beams:	H-Section Steel	Shot Blasting Level:	SA 2.5
Certification:	CE, AISC, SGS, BV, ISO, GB	Installation:	Engineer Guidance On Site
Drawing:	CAD, TEKLA, 3D Model, PKPM, BIM	HS Code:	9406900090
Transport Package:	Standard Export Package Or Customer′s Requirement	Production Capacity:	30000ton/Year
Connection Form:	Bolt Connection	Parapet Wall:	As Requested
Highlight:	China Cheap Beam Steel Structure Workshop , Low Cost Beam Steel Structure Workshop , Industrial Beam Steel Structure Workshop

Low Cost Prefab Steel Structure Workshop

Product Specifications

Raw Steel Material	Q235B, Q355B, ASTM A36
Application	Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part
Surface Treatment	Painting or Hot-DIP Galvanized
Service Life	50 Years
Wall and Roof	Steel cladding sheet, Sandwich Panel
Columns & Beams	H-Section Steel
Shot Blasting Level	SA 2.5
Certification	CE, AISC, SGS, BV, ISO, GB
Installation	Engineer Guidance on Site
Drawing	CAD, TEKLA, 3D Model, PKPM, BIM
HS Code	9406900090
Transport Package	Standard Export Package or Customer's Requirement
Production Capacity	30000ton/Year

Key Advantages

Lighter weight compared to traditional building materials
High strength and excellent seismic performance
Faster construction speed and lower cost than reinforced concrete
Environmentally friendly with recyclable materials
Prefabricated components for efficient assembly
Large span capability and multi-floor design options

Technical Specifications

Steel Frame:

H section steel | Q235/Q355 steel 8mm/10mm

Welding & Finishing:

Automatic submerged arc welding | Sand blasting rust removal | Alkyd paint or galvanized surface finish

Supporting System:

Angle brace: L50x4, Steel Q235 | Horizontal brace: Φ20, Steel Q235 | Column brace: Φ20, Steel Q235 | Tie rod: Φ89*3, Steel Q235

Roof System:

Purlin: C160*60*2.5, Steel Q235 | Roof panel: Sandwich panel or corrugated steel sheet | Sunlight: 1mm thick PVC

Wall System:

Purlin: C160*60*2.5, Steel Q235 | Wall: Sandwich panel or corrugated steel plate

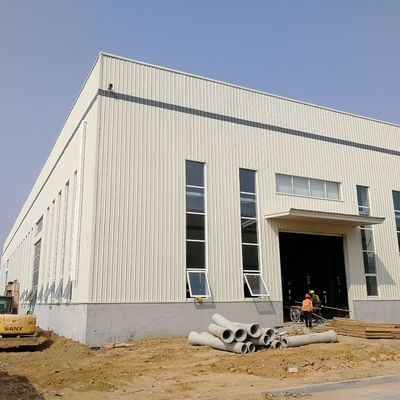

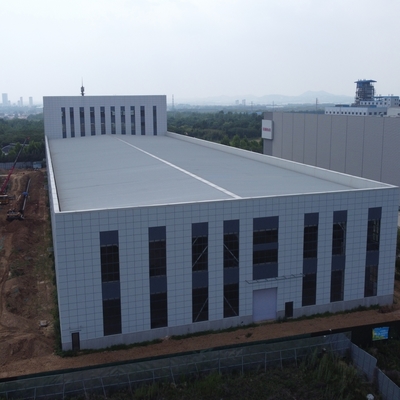

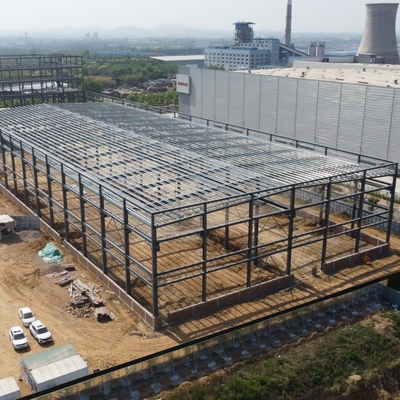

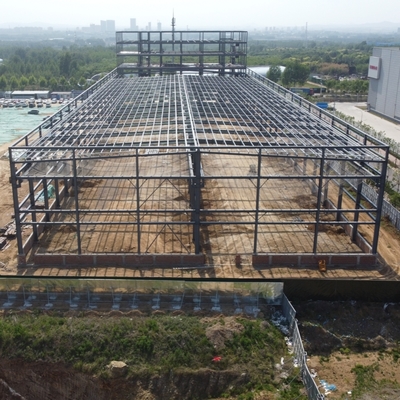

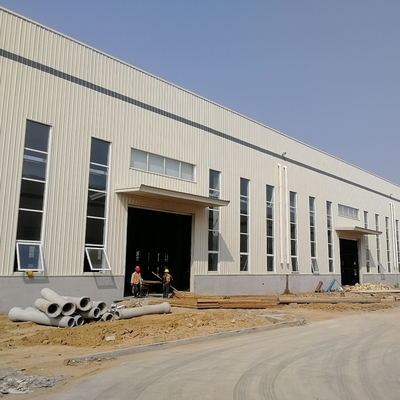

Project Showcase

Project Usage:

High-End Intelligent Hydraulic Machine Tool Equipment

Size:

Total Area 9,702 Sqm

Steel Structure Weight:

630Ton

Project Usage:

Logistics Steel Warehouse For High-Speed Rail Station

Size:

Total Area 24,570 Sqm

Steel Structure Weight:

985Ton

Our Services

Structural steel fabrication, painting, galvanizing, and pre-assembly
Design, fabrication, and installation of prefabricated steel structures
Detailed fabrication drawings based on your architectural plans
Technical advice for usage, maintenance, and improvements

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a manufacturer with our own factory in Qingdao, China. Visitors are welcome to inspect our facilities and production processes.

Can you send engineers for installation?

We provide detailed installation drawings and can send engineers or a complete installation team upon request.

What is your typical delivery time?

Delivery time depends on order quantities, typically 40 days after receiving deposit for shipment to nearest Chinese seaport.

Request a Quote

Please provide the following information for an accurate quotation:

1. Location (where will it be built?)	_____country, area
2. Size: lengthwidthheight	_____mm_____mm_____mm
3. Wind load (max. wind speed)	_____kn/m2, _____km/h, _____m/s
4. Snow load (max. snow height)	_____kn/m2, _____mm
5. Anti-earthquake requirements	_____level

Tag:
