Prefab Steel Structure Workshop with H-Section Beams 50-Year Lifespan

Large Image : Prefab Steel Structure Workshop with H-Section Beams 50-Year Lifespan

Product Details:

Place of Origin:	Qingdao,China
Brand Name:	Ruly Steel
Certification:	CE,AISC,SGS, BV, ISO,GB
Model Number:	RulyX001

Payment & Shipping Terms:

Minimum Order Quantity:	200 square meters
Price:	USD25-USD45 Per Square Meter
Packaging Details:	40HQ/Open top container
Delivery Time:	20 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	20,000 square meters or 1,500 tons per month

Contact Now

Prefab Steel Structure Workshop with H-Section Beams 50-Year Lifespan

Description

Features:	Prefab Steel Structure, Large Span, Multi-Floor	Raw Steel Material:	Q235B, Q355B, ASTM A36
Application:	Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part	Surface Treatment:	Painting Or Hot-DIP Galvanized
Service Life:	50 Years	Wall And Roof:	Steel Cladding Sheet,Sandwich Panel
Columns & Beams:	H-Section Steel	Shot Blasting Level:	SA 2.5
Certification:	CE, AISC, SGS, BV, ISO, GB	Installation:	Engineer Guidance On Site
Drawing:	CAD, TEKLA, 3D Model, PKPM, BIM	HS Code:	9406900090
Transport Package:	Standard Export Package Or Customer′s Requirement	Production Capacity:	30000ton/Year
Connection Form:	Bolt Connection	Parapet Wall:	As Requested
Highlight:	Earthquake Resistant Steel Structure Workshop , Metallic Steel Structure Prefab Metal Shed , Earthquake Resistant Prefab Metal Shed

Quick Build Prefab Metal Shed Metallic Steel Structure Earthquake Resistant Workshop

Product Specifications

Attribute	Value
Raw Steel Material	Q235B, Q355B, ASTM A36
Application	Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part
Surface Treatment	Painting or Hot-DIP Galvanized
Service Life	50 Years
Wall and Roof	Steel cladding sheet, Sandwich Panel
Columns & Beams	H-Section Steel
Shot Blasting Level	SA 2.5
Certification	CE, AISC, SGS, BV, ISO, GB
Installation	Engineer Guidance on Site
Drawing	CAD, TEKLA, 3D Model, PKPM, BIM
HS Code	9406900090
Transport Package	Standard Export Package or Customer′s Requirement
Production Capacity	30000ton/Year
Features	Prefab Steel Structure, Large Span, Multi-Floor
Connection Form	Bolt Connection
Parapet Wall	As Requested

Key Features

Lighter weight capacity compared to traditional building materials
High strength and good toughness with uniform material properties for excellent seismic performance
Factory prefabrication and on-site installation for faster construction and lower costs
Environmentally friendly construction with recyclable materials that reduce resource waste

Technical Specifications

Component	Specification

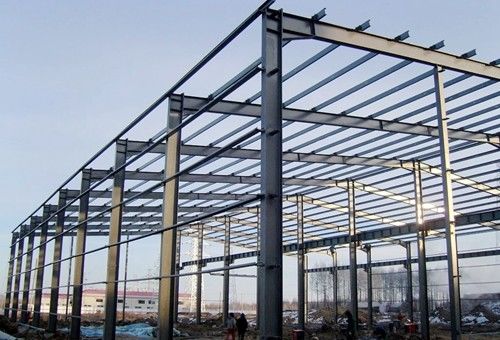

Steel Frame	H section steel \| Q235/Q355 steel 8mm/10mm
Welding	Automatic submerged arc welding
Rust removal	Sand blasting
Surface finish	Alkyd paint or galvanized
Intensive bolt	M20, Grade 10.9
Supporting System	Angle brace \| L50x4, Steel Q235, processed and painted
Horizontal brace	Φ20, Steel Q235, processed and painted
Column brace	Φ20, Steel Q235, processed and painted
Tie rod	Φ89*3, Steel Q235, processed and painted
Ordinary bolt	M12 Galvanized bolt
Roof Purlin	C160602.5, Steel Q235, galvanized and painted
Roof panel	Sandwich panel or corrugated steel sheet
Sunlight	1mm thick PVC
Accessories	Glass cement, self-tapping screws, etc.
Edge cover	0.4mm steel sheet profile trimming
Gutter	0.4mm thick sheet steel profile or galvanized sheet
Down pipe	Φ110PVC
Walls Purlin	C160602.5, Steel Q235, painted
Wall	Sandwich panel or corrugated steel plate
Ventilation	Powered Ventilation ball
Doors & windows	Rolling door/sliding door PVC/alu/steel/window

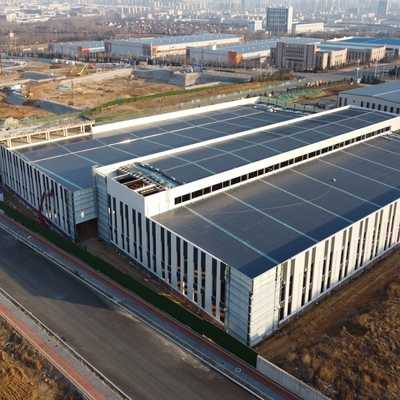

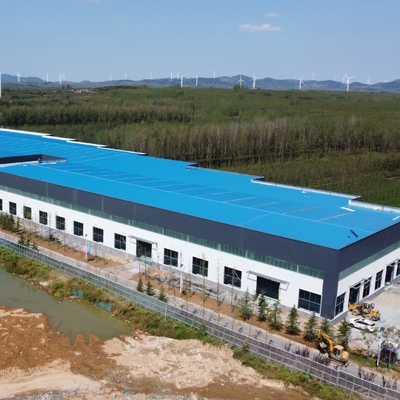

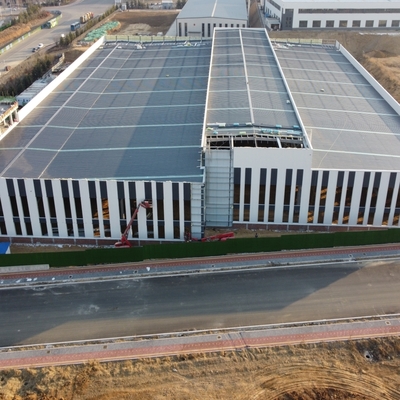

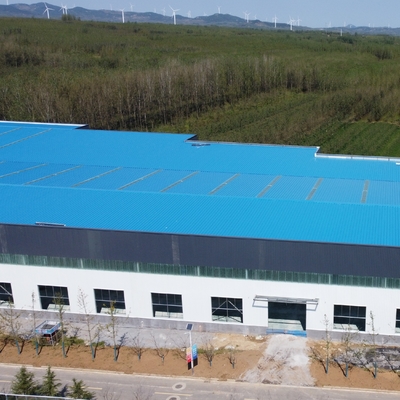

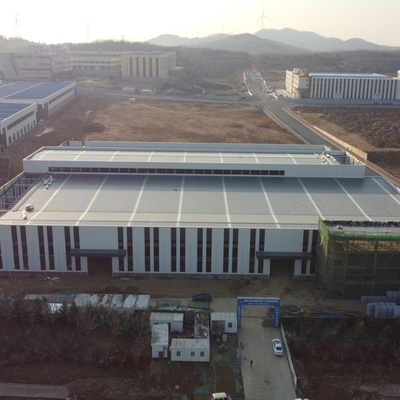

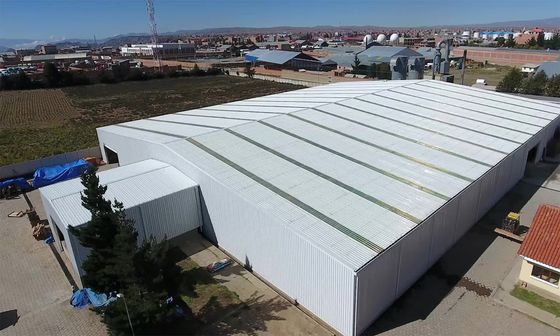

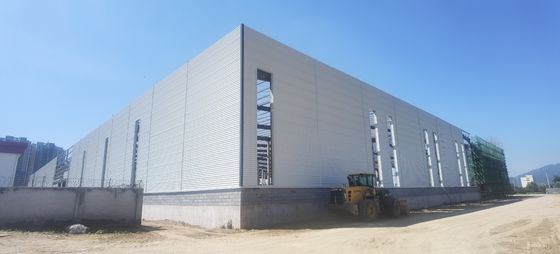

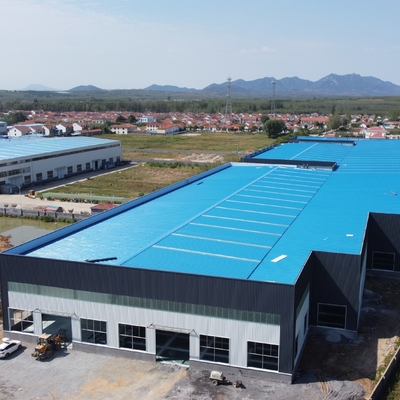

Project Showcase

Project Usage: High-End Intelligent Hydraulic Machine Tool Equipment

Size of the plant: Total Area 9,702 Sqm

Steel Structure Weight: 630Ton

Project Usage: Logistics Steel Warehouse For High-Speed Rail Station

Size of the plant: Total Area 24,570 Sqm

Steel Structure Weight: 985Ton

Project Usage: Textile Manufacturing Machine Tool Equipment

Size of the plant: Total Area 6,615 Sqm

Steel Structure Weight: 750Ton

Our Services

Structural steel fabrication, painting, galvanizing, pre-assembly
Designing, fabrication and installation for Prefabricated steel structure buildings
Deepen or design fabrication drawings based on your architectural plans
Technical advice for usage, maintenance and improvements

Packaging & Shipping

All structure components, panels, bolts and accessories are packed in standard ocean transportation packages and loaded into 40'HQ containers. Our skilled workers use cranes and forklifts to prevent damage during loading.

Frequently Asked Questions

Are you a manufacture factory or trading company?

We are a manufacturing factory. You're welcome to visit us anytime to see our quality control processes and get the most competitive pricing.

Is your price competitive compared with other companies?

We offer the best price for equivalent quality and the best quality for equivalent prices, always working to reduce your costs while guaranteeing product quality.

Can you send engineers or whole team to install my project?

We provide detailed installation drawings for free and can send engineers or a complete installation team upon request.

Do you accept container loading inspection?

You're welcome to send an inspector at any production stage, including container loading.

Do you offer designing service for us?

Yes, we provide complete design solutions using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) for complex industrial buildings.

What is the delivery time?

Delivery time depends on order quantities, typically 40 days after receiving deposit to the nearest Chinese seaport.

How can you get a quotation for your projects?

Why Choose Us?

Professional design team for custom solutions
Skilled fabrication team with advanced equipment
One-stop service for complete project solutions
Quality control team ensuring product standards
Comprehensive after-sales service and support

Request a Quote

Please provide the following information for an accurate quotation:

1. Location (where will it be built?)	_____country, area
2. Size: lengthwidthheight	_____mm_____mm_____mm
3. Wind load (max. wind speed)	_____kn/m2, _____km/h, _____m/s
4. Snow load (max. snow height)	_____kn/m2, _____mm
5. Anti-earthquake	_____level
6. Brickwall needed or not	If yes, 1.2m high or 1.5m high
7. Thermal insulation	EPS, fiberglass wool, rockwool, PU sandwich panels or metal sheets
8. Door quantity & size	_____units, _____(width)mm*_____(height)mm
9. Window quantity & size	_____units, _____(width)mm*_____(height)mm
10. Crane needed or not	If yes, _____units, max. lifting weight____tons; max. lifting height _____m
