Prefab Steel Structure Workshop Large Span Easy Assemble with Crane

Large Image : Prefab Steel Structure Workshop Large Span Easy Assemble with Crane

Product Details:

Place of Origin:	China
Brand Name:	Ruly Steel
Certification:	CE,AISC,SGS, BV, ISO,GB
Model Number:	RulyD0004

Payment & Shipping Terms:

Minimum Order Quantity:	200 Square Meter
Price:	USD29-USD99 Per Square Meter
Packaging Details:	As request
Delivery Time:	30 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	20000 Square Meter Per Month

Contact Now

Prefab Steel Structure Workshop Large Span Easy Assemble with Crane

Description

Features:	Prefab Steel Structure,Large Span,Mezzanine,Crane	Application:	Steel Structure Workshop
Type:	Large Span Easy Assemble Steel Workshop	Raw Steel Material:	Q235B, Q355B
Surface Treatment:	Painting Or Hot-dip Galvanize	Color:	Customized
Service Life:	50 Years	Wall And Roof:	Steel Cladding Sheet,Sandwich Panel
Working Scope:	Design,Fabrication, Installation
Highlight:	Reusable Steel Structure Workshop , Easy Assemble Steel Structure Workshop , Crane Ventilation Prefab Steel Workshop

Prefab Steel Structure Workshop - Easy Assemble, Repair & Reusable with Crane Ventilation

Product Attributes

Attribute	Value
Application	Steel Structure Workshop
Type	Large Span Easy Assemble Steel Workshop
Features	Prefab steel structure, Large Span, Mezzanine, Crane
Raw steel material	Q235B, Q355B
Surface treatment	Painting or Hot-dip Galvanize
Color	Customized
Service life	50 Years
Wall and Roof	Steel Cladding Sheet, Sandwich Panel
Working scope	Design, Fabrication, Installation

Product Overview

Our prefabricated steel structure workshop is manufactured in our factory and assembled directly on-site, offering convenient and quick construction with a short project timeline.

Key Advantages

Wide span options: Single span or Multi-span configurations
Cost-effective: Unit price range from $50/m² to $80/m² based on specifications
Long lifespan: 20-50 years of durable service
Rapid construction and easy installation process
Environmental benefits: Stable structure with earthquake resistance, waterproofing, and energy conservation

Technical Specifications

Component	Specification
Main Frame	H beam (400-1500mm), Q235B/Q355B steel
Purlin	C or Z purlin (C120-C320, Z100-Z20)
Bracing	X-type or other bracing from angle/round pipe
Roof & Wall	Sandwich panel or color plate
Surface Treatment	Anti-rust painting or hot dip galvanized

Detailed Components

Main Steel Frame System

H section steel Q355 with alkyd painting
Roof purlin: XZ160*60*20*2.5, galvanized
Wall purlin: XZ160*60*20*2.5, galvanized

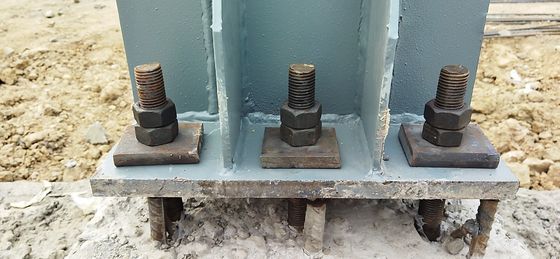

Grade 10.9 intensive bolts

Bracing System

Cross brace: Φ20 round steel bar Q235
Angle brace: L50*5 angle steel Q235
Column bracing: Φ25 round steel bar Q235

Wall & Roof System

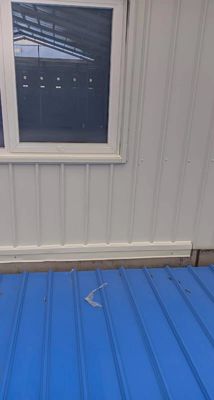

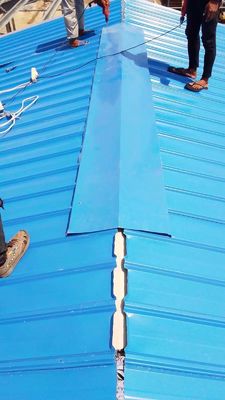

Corrugated steel plate or sandwich panel options
Unpowered ventilator: Diameter Φ600, stainless steel
Sky lighting band: 1.2mm FRP, double layer

Our Manufacturing Capabilities

We operate three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines, and various profiling steel sheet machines with advanced equipment including plasma cutting machines.

Installation & Support

Detailed shop drawings provided before installation
On-site training available in our factory
Sample steel structure building assembly option

Packing & Shipping

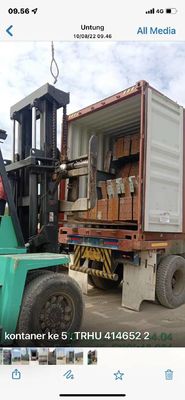

All components, panels, bolts, and accessories are packed for ocean transportation and loaded into 40'HQ containers. Our skilled workers handle loading with cranes and forklifts to prevent damage.

Why Choose Our Steel Structures?

Professional design team for custom solutions
Skilled fabrication with advanced equipment
Complete project management from design to installation
Strict quality control throughout production
Comprehensive after-sales support and maintenance

Request a Quote

Please provide the following information for an accurate quotation:

Location (country, area)	_____
Size (L×W×H in mm)	_____ × _____ × _____
Wind load (max wind speed)	_____ kn/m², _____ km/h, _____ m/s
Snow load (max snow height)	_____ kn/m², _____ mm
Earthquake resistance level	_____
Thermal insulation requirements	EPS, fiberglass wool, rockwool, PU, or none
Crane requirements (if needed)	_____ units, max _____ tons, height _____ m
