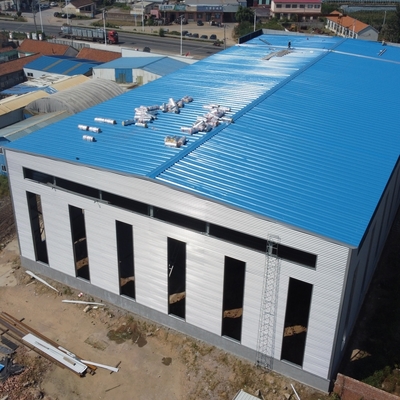

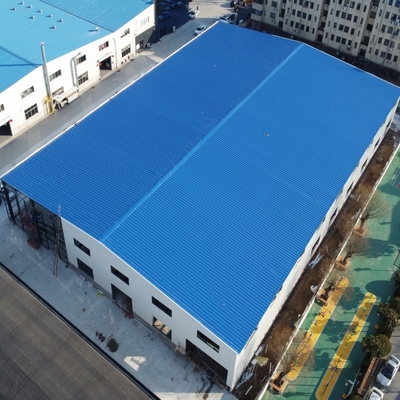

Prefab Steel Structure Warehouse Workshop with 50-Year Lifespan

Large Image : Prefab Steel Structure Warehouse Workshop with 50-Year Lifespan

Product Details:

Place of Origin:	Qingdao,China
Brand Name:	Ruly Steel
Certification:	CE,AISC,SGS, BV, ISO,GB
Model Number:	RULYC040

Payment & Shipping Terms:

Minimum Order Quantity:	200 square meters
Price:	USD19-USD39 Per Square Meter
Packaging Details:	40HQ/Open top container
Delivery Time:	20 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	20,000 square meters or 1,500 tons per month

Contact Now

Prefab Steel Structure Warehouse Workshop with 50-Year Lifespan

Description

Features:	Prefab Steel Structure, Large Span, Multi-Floor	Raw Steel Material:	Q235B, Q355B, ASTM A36
Application:	Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part	Surface Treatment:	Painting Or Hot-DIP Galvanized
Service Life:	50 Years	Wall And Roof:	Steel Cladding Sheet,Sandwich Panel
Columns & Beams:	H-Section Steel	Shot Blasting Level:	SA 2.5
Certification:	CE, AISC, SGS, BV, ISO, GB	Installation:	Engineer Guidance On Site
Drawing:	CAD, TEKLA, 3D Model, PKPM, BIM	HS Code:	9406900090
Transport Package:	Standard Export Package Or Customer′s Requirement	Production Capacity:	30000ton/Year
Connection Form:	Bolt Connection
Highlight:	Prefabricated Steel Structure Workshop , Prefabricated Steel Structure Warehouse , Prefabricated Steel Building Garages

Prefabricated Steel Structure Workshop Warehouse Design Steel Building Garages

Key Specifications

Raw Steel Material: Q235B, Q355B, ASTM A36

Application: Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part

Surface Treatment: Painting or Hot-DIP Galvanized

Service Life: 50 Years

Wall and Roof: Steel cladding sheet, Sandwich Panel

Columns & Beams: H-Section Steel

Certification: CE AISC SGS BV ISO GB

Product Overview

Our prefabricated steel structures incorporate advanced wall and roof insulation materials including aluminum-zinc color plates, aluminum magnesium manganese plates, and aluminum-plastic plates. These materials provide excellent dustproof, antistatic, antibacterial, sound absorption, and fireproof performance while creating aesthetically pleasing work environments.

Structural Components

Component	Specification
Main Steel Frame (Column & Beam)	Q235, Q355 Welded H Section Steel
Secondary Frame (Purlin)	Q235 C and Z purlin
Bracing System	Q235 Angle Steel, Round Bar or Steel Pipe
Roof Panel	EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel
Wall Panel	Sandwich Panel / Corrugated Steel Sheet

Performance Characteristics

Wind Resistance: Grade 12
Earthquake Resistance: Grade 8
Temperature Range: -50°C to +50°C
Live Load Capacity: 120kg/m² (Color steel panel surrounded)
Standard Service Life: 50 years

Manufacturing Process

Company Capabilities

Qingdao Ruly Steel Engineering Co., Ltd specializes in steel structure design, fabrication and installation with a 35,000m² facility and 2,000-ton monthly production capacity. Our projects include warehouses, workshops, storage sheds, garages, and industrial buildings exported worldwide.

Quality Certifications

Packaging & Shipping

All structural components, panels, and accessories are packed for ocean transportation and loaded into 40'HQ containers using cranes and forklifts by skilled workers to prevent damage.

Our Advantages

Professional design team for customized solutions
Skilled fabrication with advanced equipment
One-stop service from design to installation
Strict quality control processes
Comprehensive after-sales support

Quotation Requirements

To provide an accurate quote, we require project details including location, dimensions, environmental loads, insulation requirements, and door/window specifications.
