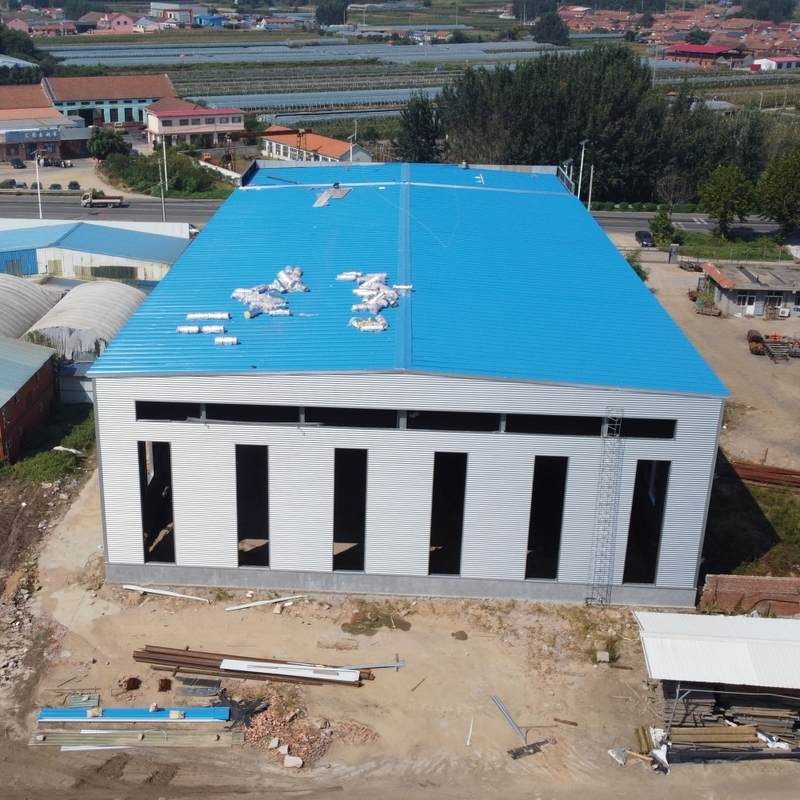

Prefab Steel Structure Warehouse with Rock Wool Insulation

Large Image : Prefab Steel Structure Warehouse with Rock Wool Insulation

Product Details:

Place of Origin:	China
Brand Name:	Ruly Steel
Certification:	SGS, BV, ISO
Model Number:	Ruly0414

Payment & Shipping Terms:

Minimum Order Quantity:	300 Square Meter
Price:	USD29-USD99 Per Square Meter
Packaging Details:	Steel frame pallets and loaded into 40’HQ
Delivery Time:	30 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	20000 Square Meter Per Month

Contact Now

Prefab Steel Structure Warehouse with Rock Wool Insulation

Description

Features:	Large Span Steel Frame Industrial Buildings	Application:	Steel Prefabricated Warehouse Building
Type:	Prefab Steel Frame Structure Warehouse	Raw Steel Material:	Q235B, Q355B, ASTM A36
Service Life:	50 Years	Wall And Roof:	Rock Wool
Surface Treatment:	Painting	Working Scope:	Design,Fabrication, Installation
Columns & Beams:	H-section Steel	Standard:	AISC, ASTM, BS, DIN, GB, JIS
Highlight:	Prefabricated Steel Structure Granary , H Section Steel Structure Granary , Q235 Prefab Steel Structure Warehouse

Prefabricated Steel Structure Granary Steel Structure Warehouse

Product Specifications

Application

Steel Prefabricated Warehouse Building

Features

Large Span Steel Frame Industrial Buildings

Type

Prefab Steel Frame Structure Warehouse

Raw steel material

Q235B, Q355B, ASTM A36

Service life

50 Years

Wall and Roof

Rock wool

Surface treatment

Painting

Working scope

Design, Fabrication, Installation

Columns & Beams

H-section steel

Standard

AISC, ASTM, BS, DIN, GB, JIS

Project Overview

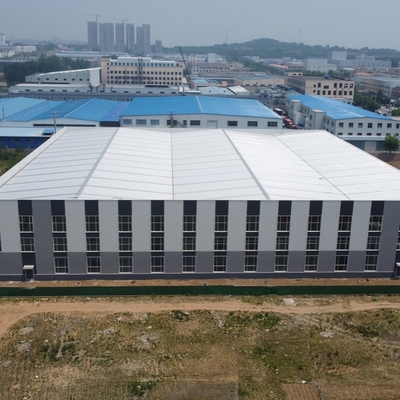

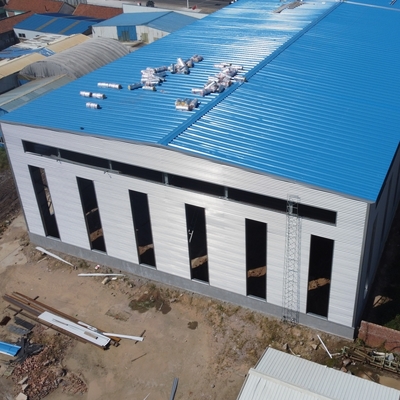

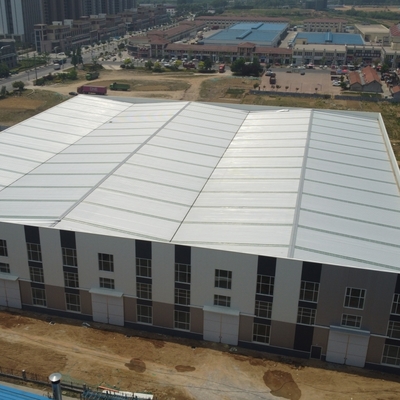

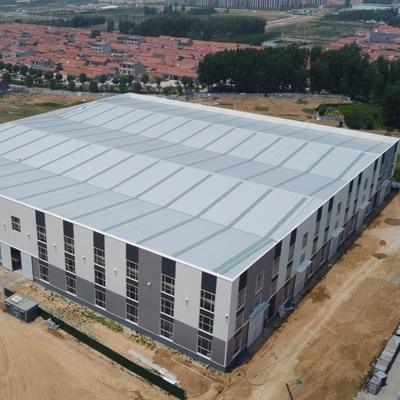

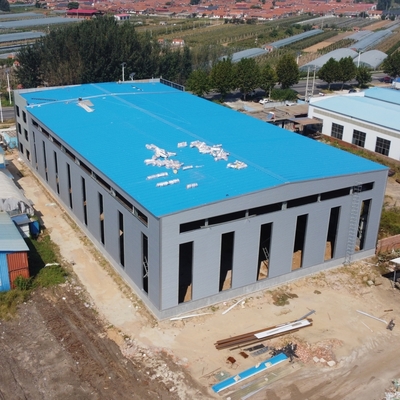

Our prefabricated steel structure buildings are widely used for large factories, warehouses, workshops, sheds, garages, hangars, office buildings, bridges, stadiums and other structures. The light steel structure warehouse is a modern building system formed by a main steel framework of H-section, Z-section, and U-section steel components, combined with various panel systems for roof and walls, plus windows and doors.

Steel Structure Material Specifications

Component	Specification
Main Steel Frame Column	Q235, Q345 Welded H Section Steel
Beam	Q235, Q345 Welded H Section Steel
Secondary Frame Purlin	Q235 C and Z purlin
Knee brace	Q235 Angle Steel
Tie Rod	Q235 Circular Steel Pipe
Brace	Q235 Round Bar
Vertical and Horizontal Support	Q235 Angle Steel, Round Bar or Steel Pipe
Maintenance system Roof Panel	EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / PU Sandwich Panel / Steel Sheet
Wall Panel	Sandwich Panel / Corrugated Steel Sheet
Accessories Window	Aluminium Alloy Window / PVC Window / Sandwich Panel Window
Door	Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Rainspout	PVC
Live load on Roof	120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade	12 Grades
Earthquake-resistance	8 Grades
Structure Usage	Up to 50 years
Temperature	Suitable temperature: -50°C to +50°C
Certification	CE, SGS, ISO9001:2008, ISO14001:2004
Finishing Options	Vast array of colors and textures available
Paint Options	Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized

Our Steel Structure Fabrication Facility

Our steel structure fabrication factory covers 35,000㎡ with 20,000㎡ of workshop space. We operate three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines with advanced equipment including plasma cutting machines.

Our Competitive Advantages

Professional design team: We create drawings to your specifications or calculate steel quantities based on your existing plans.
Skilled fabrication team: We develop independent production schedules for each project and provide comprehensive worker training.
One-stop service: We offer complete customized solutions for steel structure projects of all types.
Quality control: Our professional QC team ensures all products meet your exact requirements.
After-sales service: We provide ongoing support for maintenance of insulation and steel components.

Requesting a Quote

Please provide the following information for an accurate quotation:

Item	Details Required
1	Location (country, area where building will be constructed)
2	Size: length × width × height (mm)
3	Wind load (max. wind speed in kn/m², km/h, or m/s)
4	Snow load (max. snow height in kn/m² or mm)
5	Earthquake resistance level required
6	Brick wall requirements (height if needed: 1.2m or 1.5m)
7	Thermal insulation requirements (material preference if needed)
8	Door quantity & dimensions (width × height in mm)
9	Window quantity & dimensions (width × height in mm)
10	Crane requirements (quantity, max lifting weight in tons, max lifting height in meters)
