Prefab Steel Structure Warehouse Building Q235B Q355B Material

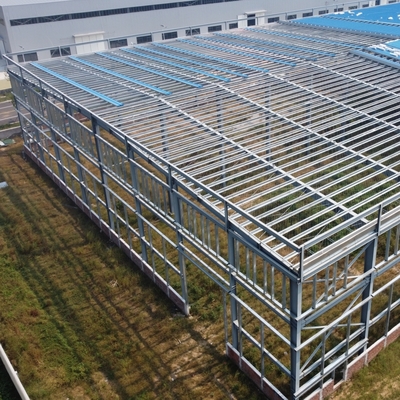

Large Image : Prefab Steel Structure Warehouse Building Q235B Q355B Material

Product Details:

Place of Origin:	China
Brand Name:	Ruly Steel
Certification:	SGS, BV, ISO
Model Number:	Ruly0493

Payment & Shipping Terms:

Minimum Order Quantity:	500 Square Meter
Packaging Details:	As request
Delivery Time:	30 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	20000 Square Meter Per Month

Contact Now

Prefab Steel Structure Warehouse Building Q235B Q355B Material

Description

Features:	Light Steel Structure Warehouse	Application:	Manufacturer Of Structural Steel Buildings Warehouse
Type:	Prefab Steel Structure Warehouse	Raw Steel Material:	Q235B, Q355B, ASTM A36
Service Life:	50 Years	Wall And Roof:	Steel Cladding Sheet
Surface Treatment:	Painting	Working Scope:	Design,Fabrication, Installation
Highlight:	Prefabricated Steel Warehouse , ASTM A36 Prefab Metal Workshop , Light Prefab Steel Structure Warehouse

Prefabricated Steel Structure Warehouse Building Construction Prefab Metal Workshop

Product Attributes

Application	Manufacturer Of Structural Steel Buildings Warehouse
Features	Light Steel Structure Warehouse
Type	Prefab Steel Structure Warehouse
Raw steel material	Q235B, Q355B, ASTM A36
Service life	50 Years
Wall and Roof	Steel cladding sheet
Surface treatment	Painting
Working scope	Design, Fabrication, Installation

Product Description

Famous Prefabricated Steel Frame Structure Building Construction Warehouse Prefab Metal Workshop

Qingdao Ruly Steel Engineering Co., Ltd is a professional steel structure fabrication and construction company for light and heavy steel structure projects. Our services include design, fabrication of all steel structure components and insulation panels, and on-site installation. Our steel structure fabrication factory covers 35,000㎡ with a workshop area of 20,000㎡. We operate three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines, and various profiling steel sheet machines with advanced equipment including plasma cutting machines.

We specialize in prefabricated steel structure warehouses, workshops, storage sheds, garages, hangars, chicken sheds, car parks, showrooms, office buildings, gyms, dormitory buildings, high-rise steel residence buildings, oil & gas projects, power stations, and infrastructure buildings.

Specification of Steel Structure Logistics Warehouse

Item name	Specification	Material Parameter	Technical Treatment
Column	H shaped steel	Q235B,Q345B	Paint or Hot dip galvanized
Beam	H shaped steel	Q235B,Q345B	Paint or Hot dip galvanized
Bracing	Steel rod, Steel pipe, Angle steel	Q235B,Q345B
Purling	C or Z shape, purling Thickness:1.8mm~3.0mm	Q235B,Q346B	Hot dip galvanized
Wall and roof panel	EPS, Rock wool, Pu, Glass wool Sandwich panel or Single sheet	Steel T=0.426~0.8mm, insulation T=50~150mm	Alu-zinc 150g, Fluorocarbon paint
Door	Sliding or rolling door	Steel or Aluminum sheet, T=1.0~1.5mm	Paint or Hot dip galvanized
Window	alloy-Glass, Aluminium alloy-shutter	T=1.0~2.0mm	Alloy
Lighting panel	FRP, T=1.5mm or T=1.8mm	Coefficient of thermal expansion:2.2x10-5/cm/cm/℃	Light transmittance 85%
Ventilator	Turbine ventilator, and electric type	Steel, stainless steel, PC	Paint or Hot dip galvanized,304
Gutter	Galvanized or stainless steel plate	T=2.0mm	Hot dip galvanized,304
Downpipe	PVC pipe, Color steel pipe T=0.5mm	Φ110,160,200	Paint
Bolt	Ordinary, high strength	10.9S,4.8s	Hot dip galvanized
Anchor bolt	Steel rod M24,M27 M30	Q235B

Advantages of Prefabricated Steel Structure Buildings

Light weight, high strength and large span: Although the density of steel is larger than other building materials, its strength is very high. Under the same force condition, the steel structure has small weight and can be made into a structure with a large span.
Short construction period: The main components of the plant are prefabricated in the factory. After being transported to the site, the installation is carried out, and the assembly work is convenient.
High fire resistance: When the surface temperature of steel is within 150°C, its strength changes little. When the temperature exceeds 150°C, its strength drops significantly. Fire-retardant coatings are generally applied to the surface of the steel structure to form a protective film that enhances the fire endurance of the component.
Anti-seepage and waterproof: The infiltration of rainwater is mainly through nodes or gaps. To prevent seepage and waterproof, it is necessary to use concealed fixing after the sealing gasket is used at the screw mouth, and sealant or welding treatment is used at the joint of the plate.
Sound insulation: Fill the metal roofing layer with soundproofing material (usually glass wool), or apply heat-reflective coating on the metal tile surface.
Ventilation and cooling: Generally high-architecture workshops use roof fan + gas building. For steel structures with higher structure and larger span, installing large exhaust fans on the roof to exhaust air creates indoor negative pressure and fresh air convection.
Good lighting: Install lighting panels or lighting glass at specific locations on the roof, with waterproof joints to coordinate with roof panels.

Our Steel Structure Production Line

The steel structure is mainly produced in a specialized metal structure factory, so the production is simple and the precision is high. All components are prefabricated at the factory, and the site is simply assembled, which greatly shortens the construction period.

How to Install

We will design the construction drawing for each project to guide installation. For abroad projects, we could dispatch our engineer to guide installation on site or our construction team can construct on site.

How to Quote

Please provide the following information for an accurate quote:

1	Location (where will be built?)	_____country, area
2	Size: lengthwidthheight	_____mm_____mm_____mm
3	Wind load (max. wind speed)	_____kn/m2, _____km/h, _____m/s
4	Snow load (max. snow height)	_____kn/m2, _____mm
5	Anti-earthquake	_____level
6	Brickwall needed or not	If yes, 1.2m high or 1.5m high
7	Thermal insulation	If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; if not, the metal steel sheets will be ok
8	Door quantity & size	_____units, _____(width)mm*_____(height)mm
9	Window quantity & size	_____units, _____(width)mm*_____(height)mm
10	Crane needed or not	If yes, _____units, max. lifting weight____tons; max. lifting height _____m
