Prefab Steel Frame Workshop with Office Buildings Q235B Q355B

Large Image : Prefab Steel Frame Workshop with Office Buildings Q235B Q355B

Product Details:

Place of Origin:	China
Brand Name:	Ruly Steel
Certification:	SGS, ,ISO, BV
Model Number:	Ruly0014

Payment & Shipping Terms:

Minimum Order Quantity:	500 Square Meter
Price:	USD29-USD99 Per Square Meter
Packaging Details:	As request
Delivery Time:	30 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	20000 Square Meter Per Month

Contact Now

Prefab Steel Frame Workshop with Office Buildings Q235B Q355B

Description

Features:	Steel Structure Workshop With Office Buildings	Application:	Prefab Steel Frame Structure Workshop
Raw Steel Material:	Q235B, Q355B	Surface Treatment:	Painting Or Hot-dip Galvanize
Service Life:	50 Years	Wall And Roof:	Steel Cladding/Rock Wool/Glass Wool/EPS/PU Sandwich Panel
Columns And Beam:	H Section Column&Beam	Installation:	Our Construction Team Install It On Site
Highlight:	prefab steel buildings , steel structure factory building

Prefab Steel Frame Structure Workshop Construction With Office Buildings

Product Specifications

Attribute	Value
Application	Prefab Steel Frame Structure Workshop
Features	Steel Structure Workshop With Office Buildings
Raw steel material	Q235B, Q355B
Surface treatment	Painting or Hot-dip Galvanize
Service life	50 Years
Wall and Roof	Steel cladding/Rock wool/Glass wool/EPS/PU sandwich panel
Columns and Beam	H Section Column&Beam
Installation	Our construction team install it on site

Product Description

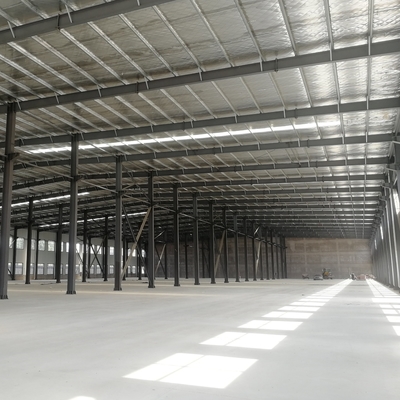

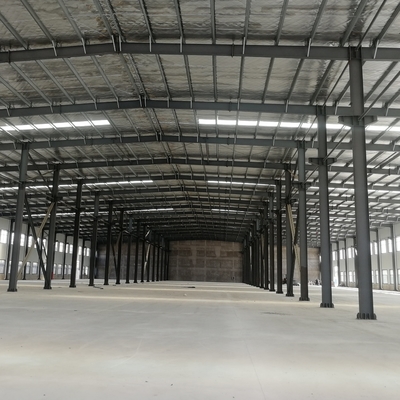

Prefab Steel Frame Structure Workshop Construction With Office Buildings for new construction insulation material production. The overall floorage is 15,000 square meters. We provide welded steel beam & column, steel deck, aluminium composite panel, purlin, windows and doors and other accessories.

We fabricate all the steel structure in our factory and then our construction team can install it in a short time. This steel structure building also has a multi-floor steel office that connects with the steel workshop.

Main Components and Technical Parameters

Main Steel Frame System
Main structure	H section steel Q345, alkyd painting, two primary painting, two finish painting
Roof purlin	XZ1606020*2.5, galvanized
Wall purlin	XZ1606020*2.5, galvanized
Intensive bolt	Grade 10.9
Turn buckle bolt	M20+2, steel Q235, processing
Anchor bolt	M24, steel Q235, processing
Ordinary bolt	Galvanized bolt M20
Ordinary bolt	Galvanized bolt M12
Brace nut	Galvanized bolt M12

Bracing System
Cross brace	Φ20 round steel bar Q235, process and painted (alkyd painting)
Angle brace	L50*5 angle steel Q235, process and painted (alkyd painting)
Column bracing	Φ25 round steel bar Q235, process and painted (alkyd painting)
Tie bar	Φ127*3 steel pipe Q235, process and painted (alkyd painting)
Batter brace	Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting)

Wall & Roof System
Roof panel	Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Wall panel	Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Edge cover	0.5mm color plate, angle Alu.
Fittings & accessories	Nails, glue etc.
Unpowered ventilator	Diameter Φ600, stainless steel
Sky lighting band	1.2mm FRP, double layer
Sliding door	sandwich panel door

Roof drainage system
Gutter	0.5mm color steel plate
Rainspout pipes	Φ110 PVC pipe

Installation

For international projects, we provide installation drawings first, then our construction team can install it on site, or we can dispatch our engineers to guide the installation on site.

Packing And Loading

All structure components, panels, bolts and accessories are well packed with standard packaging suitable for ocean transportation and loaded into 40'HQ containers.

Structural Steel Fabrication Quality Control

100% testing dimension tolerance <1mm
20% sample welding line ultrasonic testing, no fault, full penetration
20% magnetic powder testing, no bubble, no defect, Smooth and Full
Supply third-party inspection assistance
