Prefab Steel Frame Shed for Farm Machinery Q235B Q355B

Large Image : Prefab Steel Frame Shed for Farm Machinery Q235B Q355B

Product Details:

Place of Origin:	China
Brand Name:	Ruly Steel
Certification:	SGS, BV, ISO
Model Number:	Ruly0187

Payment & Shipping Terms:

Minimum Order Quantity:	500 Square Meter
Price:	USD29-USD99 Per Square Meter
Packaging Details:	As request
Delivery Time:	30 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	20000 Square Meter Per Month

Contact Now

Prefab Steel Frame Shed for Farm Machinery Q235B Q355B

Description

Application:	Farm Machinery Steel Frame Shed, Small Steel Buildings	Shot Blasting Level:	Metal Shed, Metal Warehouse
Type:	Prefab Steel Buildings	Raw Steel Material:	Q235B, Q355B, ASTM A36
Service Life:	50 Years	Wall And Roof:	Glass Wool Sandwich Panel
Surface Treatment:	Painting	Working Scope:	Design,Fabrication, Installation
Highlight:	steel structure building , metal storage buildings , Small Steel Warehouse Buildings SGS

Farm Machinery Steel Frame Shed / Small Steel Warehouse Buildings SGS

Product Specifications

Attribute	Value
Application	Farm Machinery Steel Frame Shed, Small Steel Buildings
Shot blasting level	Metal Shed, Metal warehouse
Type	Prefab Steel Buildings
Raw steel material	Q235B, Q355B, ASTM A36
Service life	50 Years
Wall and Roof	Glass wool sandwich panel
Surface treatment	Painting
Working scope	Design, Fabrication, Installation

Product Description

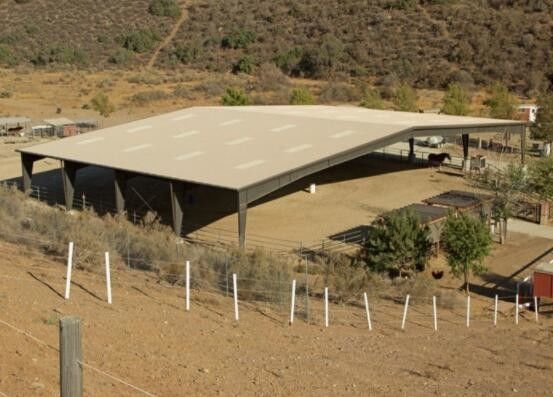

This steel frame shed is designed for farm machinery storage. The steel building features a metal structure with internal support and exterior cladding, suitable for various purposes including storage, workspaces, and living accommodation.

The main steel frame consists of welded H-section steel columns and beams connected by high-strength bolts. All structural components are precision-welded in our factory using CNC machines. Available in single span, double span, portal frame, or truss roof configurations.

Project Details

Name	Steel Frame Shed / Steel Warehouse Buildings / Small Steel Buildings
Structure Type	Portal frame, single ridge, single span
Length	60m
Width	20m
Eave Height	9m
Roof Slope	10%
Gable Wall Column Spacing	7.5m
Roof	75mm Glass wool sandwich panel
Wall	75mm Glass wool sandwich panel
Door	Sliding door
Window	Ribbon Skylight
Height difference between indoor and outdoor	300mm

Material Specifications

Steel Frame	H section steel \| Q235/Q345 steel plate thickness: 8-30mm
Welding	Automatic submerged arc welding
Rust removal	Sand blasting
Surface finish	Alkyd paint or galvanized
Intensive bolt	M20, Grade 10.9
Supporting System	Angle brace: L50x4, Steel Q235, processed and painted
Roof Purlin	C160602.5, Steel Q235, galvanized and painted
Wall Purlin	C160602.5, Steel Q235, painted

Steel Structure Fabrication

Our factory features three production lines equipped with advanced machinery including plasma cutting machines for precision fabrication of steel structures.

Our Services

Structural steel fabrication, painting, galvanizing, pre-assembly
Designing, fabrication and installation for prefabricated steel structure buildings
Deepening or designing fabrication drawings based on your architectural plans
Engineering consulting service

Advantages of Prefabricated Steel Structures

High strength and light weight	Steel offers exceptional strength-to-weight ratio, enabling large span structures with minimal material
Plasticity and toughness	Steel's plasticity prevents sudden failure under overload, while its toughness handles dynamic loads effectively
Industrialized production	Precision manufacturing in specialized facilities ensures consistent quality and dimensional accuracy
Fast construction	Prefabricated components enable rapid on-site assembly, significantly reducing project timelines
Wind resistance	Lightweight yet rigid structure offers excellent resistance to wind loads and environmental forces
Cost efficiency	Reduced foundation requirements and faster completion lower overall project costs compared to concrete
Sustainability	Steel is 100% recyclable, minimizing environmental impact during construction and demolition
