Prefab Multi-Storey Steel Warehouse with Truss Roof

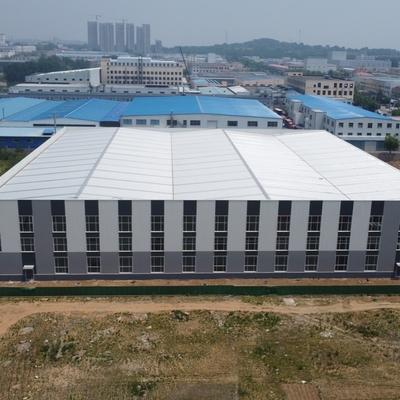

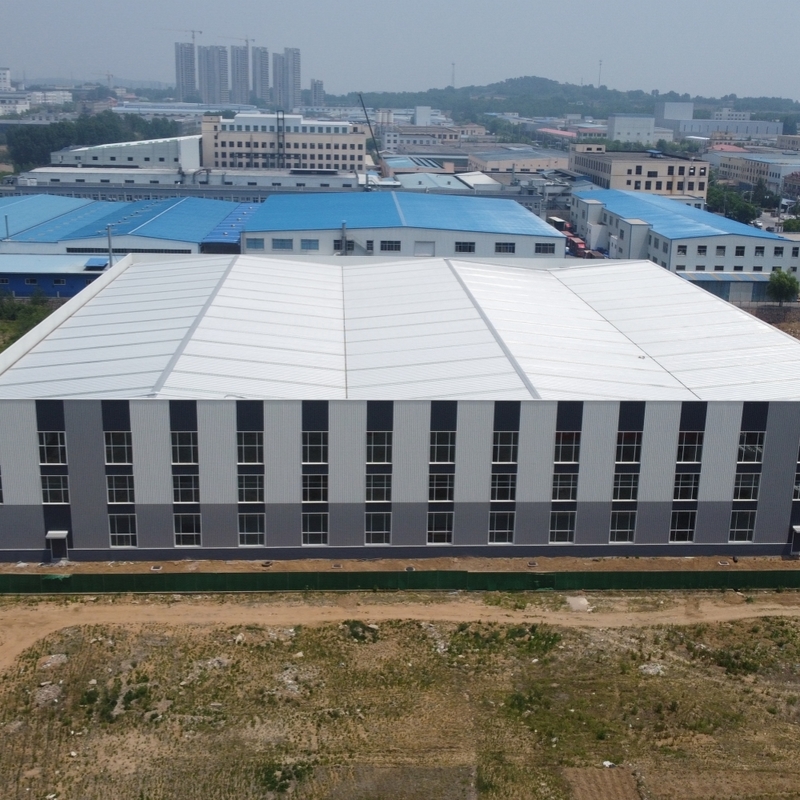

Large Image : Prefab Multi-Storey Steel Warehouse with Truss Roof

Product Details:

Place of Origin:	China
Brand Name:	Ruly Steel
Certification:	SGS, BV, ISO
Model Number:	RulyC001

Payment & Shipping Terms:

Minimum Order Quantity:	500 Square Meter
Price:	USD29-USD99 Per Square Meter
Packaging Details:	As request
Delivery Time:	30 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	20000 Square Meter Per Month

Contact Now

Prefab Multi-Storey Steel Warehouse with Truss Roof

Description

Features:	Truss Roof Metal Storage Buildings	Application:	Light Span Steel Structures
Type:	Prefab Steel Buildings	Raw Steel Material:	Q235B, Q355B
Surface Treatment:	Painting	Service Life:	50 Years
Wall And Roof:	Glass Wool	Working Scope:	Design,Fabrication, Installation
Highlight:	Large Span Multi Storey Warehouse , 8mm Steel Structure Warehouse , Q345 Light Steel Structure Warehouse

Multi Storey Light Steel Structure Warehouse With Large Span High Load Capacity

Product Attributes

Attribute	Value
Application	Light Span Steel Structures
Features	Truss Roof Metal Storage Buildings
Type	Prefab Steel Buildings
Raw steel material	Q235B, Q355B
Surface treatment	Painting
Service life	50 Years
Wall and Roof	Glass wool
Working scope	Design, Fabrication, Installation

Product Description

Multi-Storey Light Steel Structure Warehouse With Large Span High Load Capacity is a truss roof metal storage building designed for parking engineering vehicles and storing goods. The structure features light steel columns and truss beams connected by high-strength bolts, creating a main steel frame that provides large interior space and easy installation.

Material List and Technical Parameters

Component	Specification	Details
Steel Frame	H section steel	Q235/Q345 steel 8mm/10mm
Welding	Automatic submerged arc welding
Rust removal	Sand blasting
Surface finish	Alkyd paint or galvanized
Intensive bolt	M20, Grade 10.9
Supporting System	Angle brace	L50x4, Steel Q235, processed and painted
Horizontal brace	Φ20, Steel Q235, processed and painted
Column brace	Φ20, Steel Q235, processed and painted
Tie rod	Φ89*3, Steel Q235, processed and painted
Ordinary bolt	M12 Galvanized bolt
Roof	Purlin	C160602.5, Steel Q235, galvanized and painted
Roof panel	Sandwich panel or corrugated steel sheet
Sky light	6mm thick PVC
Accessories	Glass cement, self-tapping screws, etc.
Edge cover	0.4mm steel sheet profile trimming
Gutter	0.4mm thick sheet steel profile or galvanized sheet
Down pie	Φ110PVC
Walls	Purlin	C160602.5, Steel Q235, painted
Wall	Sandwich panel or corrugated steel plate
Ventilation	Ventilation ball
Doors & windows	Rolling door/sliding door PVC/alu/steel/window

Our Advantages

#	Advantage	Description
1	Professional design team	We can design drawings to your requirements or calculate steel quantities based on your drawings.
2	Skilled fabrication team and advanced equipment	We create independent production schedules for each project and provide training before fabrication begins.
3	One-stop service	We provide integrated proposals for customized steel structure projects.
4	Professional QC team	Our quality control team ensures products and services meet your requirements.
5	After sales service	We provide maintenance services for insulation and steel components as needed.

Our Services

Structural steel fabrication, painting, galvanizing, pre-assembly
Designing, fabrication and installation for prefabricated steel structure buildings
Deepening or designing fabrication/shop drawings based on architectural drawings
Engineering consulting service

How to Quote

Please provide the following information for an accurate quote:

Location: _____country, area
Size: _____mm*_____mm*_____mm
Wind load: _____kn/m2, _____km/h, _____m/s
Snow load: _____kn/m2, _____mm
Anti-earthquake: _____level
Brickwall needed: If yes, 1.2m high or 1.5m high
Thermal insulation: EPS, fiberglass wool, rockwool, PU sandwich panels (higher cost) or metal steel sheets (lower cost)
Door quantity & size: _____units, _____(width)mm*_____(height)mm
Window quantity & size: _____units, _____(width)mm*_____(height)mm
Crane needed: If yes, _____units, max. lifting weight____tons; max. lifting height _____m
