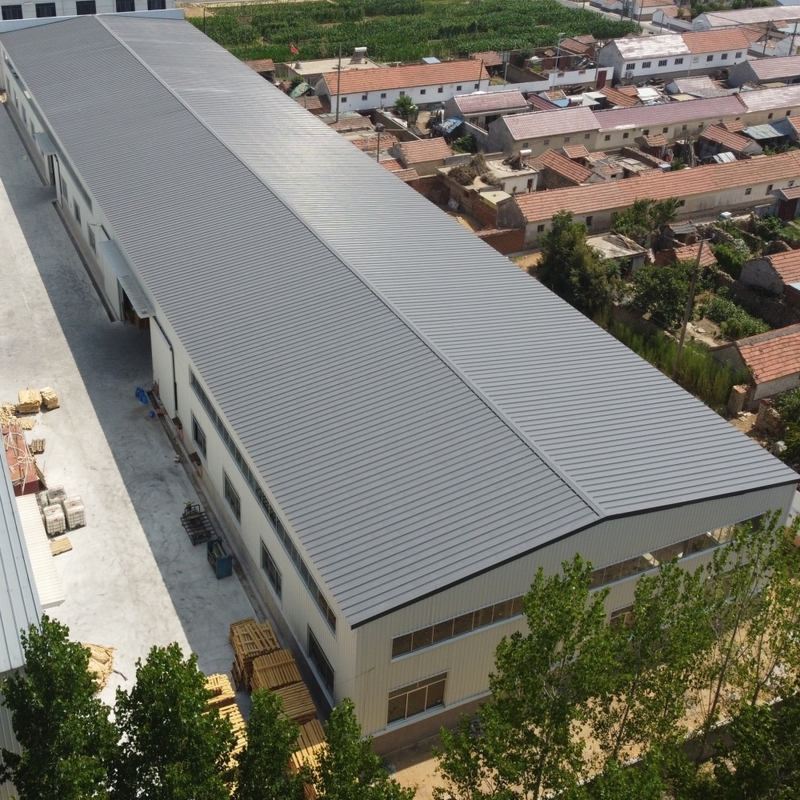

Pre-Engineered Steel Workshop with Sandwich Panel Walls and Roof

Large Image : Pre-Engineered Steel Workshop with Sandwich Panel Walls and Roof

Product Details:

Place of Origin:	Qingdao,China
Brand Name:	Ruly Steel
Certification:	CE,AISC,SGS, BV, ISO,GB
Model Number:	RulyX008

Payment & Shipping Terms:

Minimum Order Quantity:	200 square meters
Price:	USD25-USD45 Per Square Meter
Packaging Details:	40HQ/Open top container
Delivery Time:	20 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	20,000 square meters or 1,500 tons per month

Contact Now

Pre-Engineered Steel Workshop with Sandwich Panel Walls and Roof

Description

Features:	Prefab Steel Structure, Large Span, Multi-Floor	Raw Steel Material:	Q235B, Q355B, ASTM A36
Application:	Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part	Surface Treatment:	Painting Or Hot-DIP Galvanized
Service Life:	50 Years	Wall And Roof:	Steel Cladding Sheet,Sandwich Panel
Columns & Beams:	H-Section Steel	Shot Blasting Level:	SA 2.5
Certification:	CE, AISC, SGS, BV, ISO, GB	Installation:	Engineer Guidance On Site
Drawing:	CAD, TEKLA, 3D Model, PKPM, BIM	HS Code:	9406900090
Transport Package:	Standard Export Package Or Customer′s Requirement	Production Capacity:	30000ton/Year
Connection Form:	Bolt Connection	Parapet Wall:	As Requested
Highlight:	Colored Building Steel Storage Warehouse , Pre Engineered Steel Storage Warehouse , Fast Assembling Steel Storage Warehouse

Steel Storage Warehouse Sandwich Panel Structure

Pre-engineered designed fast assembling workshop with superior durability and cost-efficiency.

Key Specifications

Attribute	Value
Raw Steel Material	Q235B, Q355B, ASTM A36
Application	Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part
Surface Treatment	Painting or Hot-DIP Galvanized
Service Life	50 Years
Wall and Roof	Steel cladding sheet, Sandwich Panel
Columns & Beams	H-Section Steel
Shot Blasting Level	SA 2.5
Certification	CE, AISC, SGS, BV, ISO, GB

Product Advantages

Lighter weight compared to traditional building materials with superior load-bearing capacity
High strength and excellent toughness with uniform material properties for superior seismic performance
Factory prefabrication enables faster on-site assembly and lower construction costs
Environmentally friendly construction with recyclable materials that reduce resource waste

Technical Specifications

Component	Specification
Steel Frame	H section steel \| Q235/Q355 steel 8mm/10mm
Welding	Automatic submerged arc welding
Rust removal	Sand blasting
Surface finish	Alkyd paint or galvanized
Roof System	Sandwich panel or corrugated steel sheet with 1mm thick PVC sunlight panels
Wall System	Sandwich panel or corrugated steel plate with C160602.5 purlins

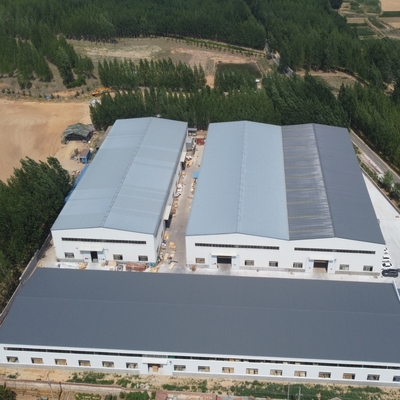

Project Showcase

High-End Intelligent Hydraulic Machine Tool Equipment

Total Area: 9,702 Sqm | Steel Structure Weight: 630Ton

Logistics Steel Warehouse For High-Speed Rail Station

Total Area: 24,570 Sqm | Steel Structure Weight: 985Ton

Textile Manufacturing Machine Tool Equipment

Total Area: 6,615 Sqm | Steel Structure Weight: 750Ton

Manufacturing Capabilities

Monthly production capacity: 1,500+ Tons
Factory area: 35,000 square meters with 20,000 square meters of plant space
Components include light/heavy H steel, BOX steel, Cross shaped section steel, and more
Certified with ISO9001, ISO14001, GB/T28001, ASTM, and SGS

Our Services

Structural steel fabrication, painting, galvanizing, and pre-assembly
Complete design, fabrication and installation services
Technical drawings using CAD, TEKLA, 3D Model, PKPM, BIM
On-site engineer guidance and installation support

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a manufacturer with our own factory in Qingdao, China. Customers are welcome to visit our facility.

What is your production capacity?

Our monthly production capacity exceeds 1,500 tons of steel structures with a workforce of over 100 skilled employees.

Do you provide installation services?

We provide detailed installation drawings and can send engineers or complete installation teams as required.

Request a Custom Quote

Please provide the following details for an accurate quotation:

1. Project Location	_____country, area
2. Building Dimensions	_____mm_____mm_____mm
3. Wind Load Requirements	_____kn/m2, _____km/h, _____m/s
4. Snow Load Requirements	_____kn/m2, _____mm
5. Seismic Requirements	_____level
