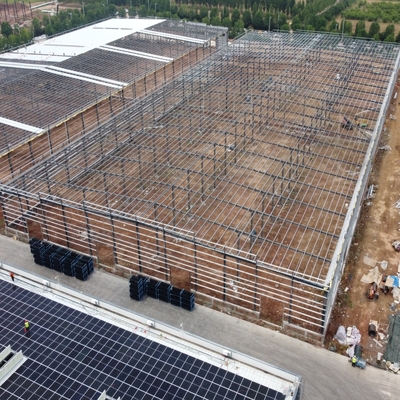

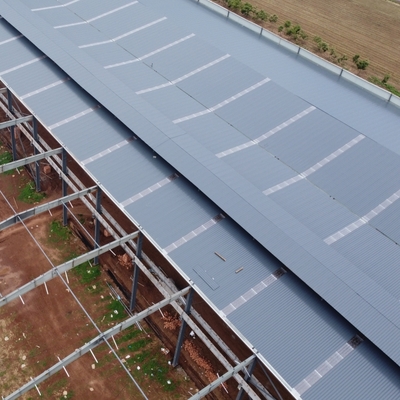

Portal Frame Steel Buildings Prefab Warehouse Workshop Q235B Q355B

Large Image : Portal Frame Steel Buildings Prefab Warehouse Workshop Q235B Q355B

Product Details:

Place of Origin:	China
Brand Name:	Ruly Steel
Certification:	SGS, BV, ISO
Model Number:	Ruly0183

Payment & Shipping Terms:

Minimum Order Quantity:	500 Square Meter
Price:	USD29-USD99 Per Square Meter
Packaging Details:	As request
Delivery Time:	30 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	20000 Square Meter Per Month

Contact Now

Portal Frame Steel Buildings Prefab Warehouse Workshop Q235B Q355B

Description

Features:	Prefab Metal Buildings For Warehouse / Workshop	Application:	Portal Frame Commercial Steel Buildings
Type:	Light Steel Frame Structure Buildings	Raw Steel Material:	Q235B, Q355B, ASTM A36
Service Life:	50 Years	Wall And Roof:	Glass Wool Sandwich Panel
Surface Treatment:	Painting	Working Scope:	Design,Fabrication, Installation
Highlight:	steel structure building , metal storage buildings , Prefab Metal Buildings Warehouse

Portal Frame Commercial Steel Buildings / Prefab Metal Buildings For Warehouse / Workshop

Product Specifications

Attribute	Value
Application	Portal Frame Commercial Steel Buildings
Features	Prefab Metal Buildings For Warehouse / Workshop
Type	Light Steel Frame Structure Buildings
Raw steel material	Q235B, Q355B, ASTM A36
Service life	50 Years
Wall and Roof	Glass wool sandwich panel
Surface treatment	Painting
Working scope	Design, Fabrication, Installation

Product Overview

Our portal frame commercial steel buildings are prefabricated metal structures ideal for warehouses, workshops, and various commercial applications. These modular steel buildings feature welded H-section steel columns and beams connected with high-strength bolts, offering durability and structural integrity.

Key Advantages

Lightweight yet high-strength construction
Large span capabilities
Reduced construction time and investment costs
Environmentally friendly and non-polluting
Versatile applications including factories, warehouses, and recreational facilities

Project Specifications

Structure Type	Portal frame, multi ridge
Dimensions (L×W×H)	80m × 40m × 10m (eave height)
Roof Slope	10%
Gable Wall Column Spacing	7.5m
Roof & Wall Material	75mm Glass wool sandwich panel
Door & Window	Sliding door with ribbon skylight
Height Difference	300mm (indoor vs outdoor)

Material Specifications

Component	Material	Specifications
Steel Frame	H section steel	Q235/Q345 steel 8mm/10mm
Welding	Automatic submerged arc welding
Surface Treatment	Sand blasting, alkyd paint or galvanized
Supporting System	Various braces	L50x4, Φ20, Φ89*3 steel Q235, processed and painted
Roof Components	Purlin, panel	C160602.5 steel Q235, sandwich panel/corrugated sheet
Wall Components	Purlin, panel	C160602.5 steel Q235, sandwich panel/corrugated plate

Fabrication Process

Our factory features three dedicated production lines equipped with advanced machinery including plasma cutting machines for precise steel structure fabrication.

Our Services

Structural steel fabrication including painting and galvanizing
Complete design, fabrication, and installation of prefabricated steel buildings
Shop drawing development based on architectural plans
Professional engineering consulting services

Installation Support

We provide detailed construction drawings for each project and offer on-site engineering support to guide installation processes.
