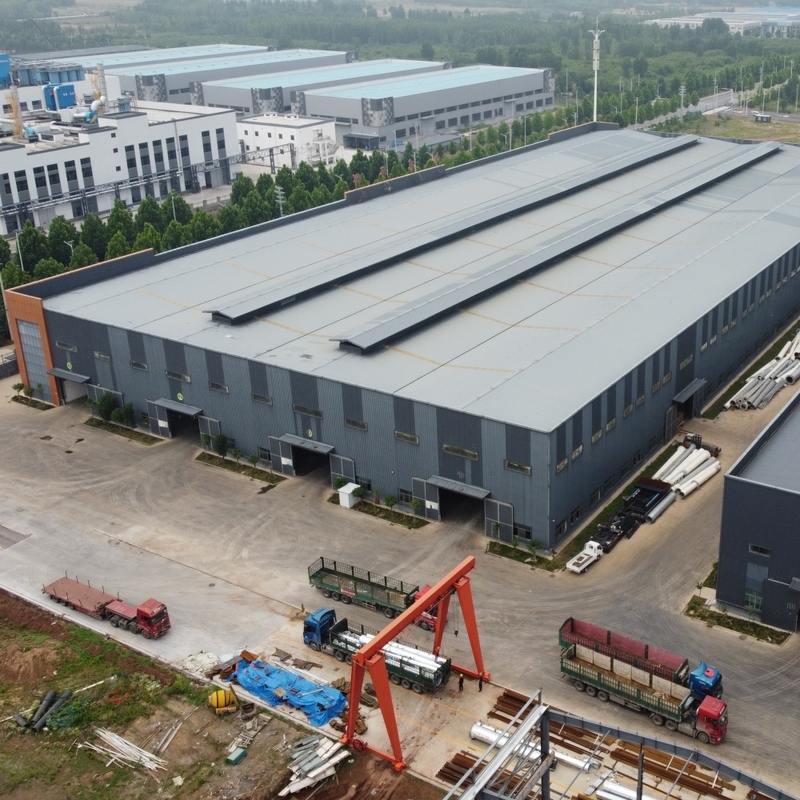

Multi Span Steel Structure Warehouse Prefabricated Steel Structure Building
Product Specifications
| Attribute |
Value |
| Application |
Multi-Span Steel Structure Warehouse |
| Features |
Prefabricated Steel Structure Buildings |
| Type |
Steel Structure Warehouse |
| Working scope |
Design, Fabrication, Installation |
| Raw steel material |
Q235B, Q355B, ASTM A36 |
| Service life |
50 Years |
| Wall and Roof |
Steel cladding sheet |
| Surface treatment |
Painting |
Detailed Specifications
Connection Form: Bolt Connection
Member: Steel Beam
Type of Steel For Building Structure: H-Section Steel
Carbon Structural Steel: Q235
Residential Wall Structure: Wall Stud
Application: Steel Workshop, Steel Structure Platform, Steel Fabricated House, Structural Roofing, Frame Part, Steel Walkway and Floor, Steel Structure Warehouse
Certificate: CE/ISO9001
Life Time: 50 Years
Wall & Roof Panel: EPS/Mineral Wool/PU/Fiber Glass Sandwich
Window: Plastic Steel Window/PVC
Main Frame: Welded/Hot Rolled H Beam
Purlin: C/Z Section Steel
Surface Treatment: Painted / Hot DIP Galvanized
Drawing Design: Autocad, Pkpm, Mts, 3D3s, Tarch, Tekla Structures
Antiseismic: 10 Fission Resistant
Wind Load: Customized
Snow Load: Customized
Material: Q235/Q355b Low Alloy & Carbon Steel
Transport Package: Load Into 20gp/40gp/Hq/Ot Containers
Specification: Customized
Origin: China
HS Code: 9406900090
Production Capacity: 1000tons/Month
Steel Structure Material Specifications
Main Steel: Q355, Q235, Q355B, Q235B, etc.
Column & Beam: Welded or Hot rolled H-section
Connection method of steel structure: Welding connection or bolt connection
Wall & Roof: EPS, PU sandwich, corrugated steel sheet
Door: Rolled up door or Sliding door
Window: Plastic steel or Aluminum alloy window
Surface: Hot-dip galvanized or painted
Crane: 5MT, 10MT, 15MT, and more
Drawings & Quotation:
Customized design is welcomed. To receive an exact quotation and drawings, please provide the length, width, eave height, and local weather conditions. We will respond promptly with detailed information.
Key Features
- Low maintenance cost
- Environmental protection and recyclable
- Flexibility when fixing doors, windows and indoor partitions
- Firm, durable and stable construction
- Resistant to termites and other destructive insects
- Service life exceeds 50 years
- Fast construction speed with convenient installation and transportation
Benefits of Prefab Steel Warehouse
Net Span Construction:
Steel's exceptional strength enables spanless construction up to 250 feet wide without load-bearing walls or columns. For wider requirements, central columns can be added to create additional 250-foot spans. Buildings can reach heights of 40 feet, accommodating stacked pallets and supporting overhead systems like cranes or sprinklers.
Customizable Design:
We offer standard size plans along with fully customizable options. Additional features include various window styles, skylights, and door systems (overhead, roll-up, scissor, or walk-in). Drainage systems are recommended to protect building foundations.
Cost-Effective Solution:
Prefabricated steel warehouses provide exceptional value through efficient construction, reduced labor requirements, and minimal material waste. Steel is both affordable and environmentally sustainable, with 100% recyclability without property loss. Modern steel production extensively utilizes recycled materials.
