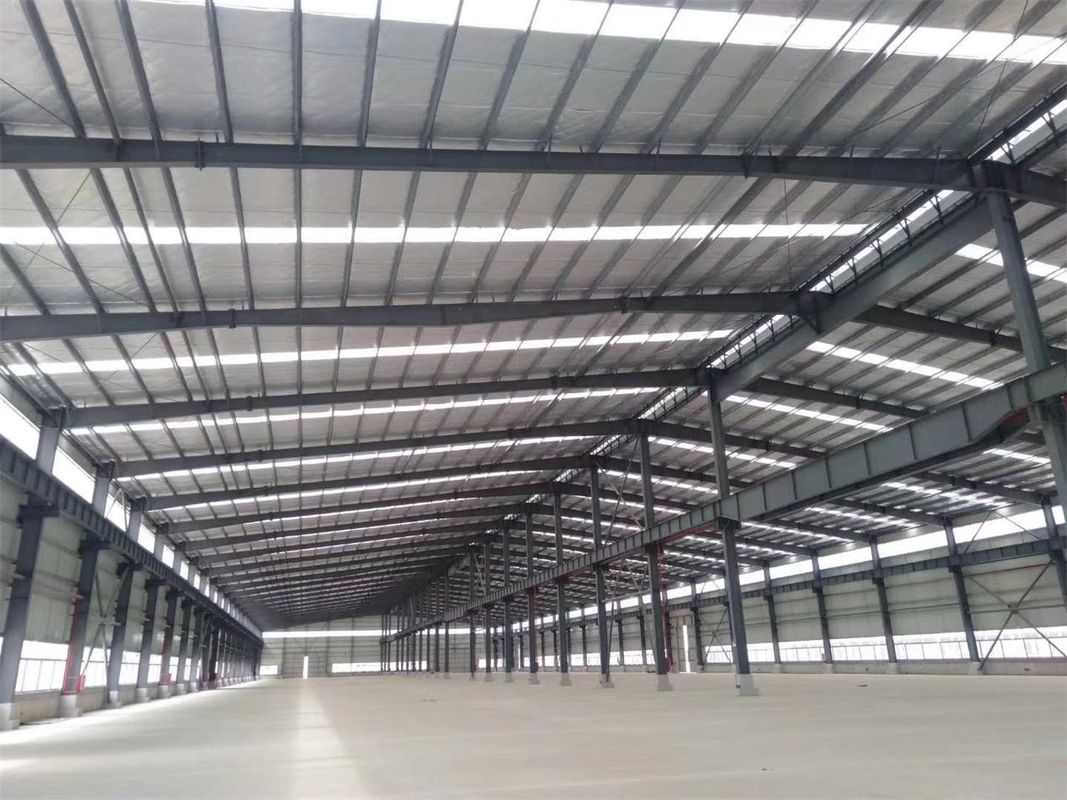

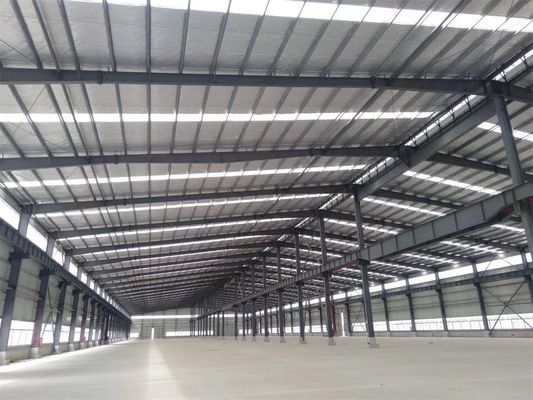

Modular Prefab Steel Workshop with Crane Beam Large Span

Large Image : Modular Prefab Steel Workshop with Crane Beam Large Span

Product Details:

Place of Origin:	China
Brand Name:	Ruly Steel
Certification:	CE,AISC,SGS, BV, ISO,GB
Model Number:	RulyD0003

Payment & Shipping Terms:

Minimum Order Quantity:	200 Square Meter
Price:	USD29-USD99 Per Square Meter
Packaging Details:	As request
Delivery Time:	30 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	20000 Square Meter Per Month

Contact Now

Modular Prefab Steel Workshop with Crane Beam Large Span

Description

Features:	Prefab Steel Structure,Large Span,Mezzanine,Crane	Application:	Steel Structure Workshop
Type:	Large Span Easy Assemble Steel Workshop	Raw Steel Material:	Q235B, Q355B
Surface Treatment:	Painting Or Hot-dip Galvanize	Color:	Customized
Service Life:	50 Years	Wall And Roof:	Steel Cladding Sheet,Sandwich Panel
Working Scope:	Design,Fabrication, Installation
Highlight:	Prefab H Section Steel Workshop , Welded Prefab Steel Structure Workshop , Crane Beam Prefab Steel Structure

Modular Welded H Section Prefab Steel Structure Workshop With Crane Beam

Product Specifications

Attribute	Value
Application	Steel Structure Workshop
Type	Large Span Easy Assemble Steel Workshop
Features	Prefab steel structure, Large Span, Mezzanine, Crane
Raw steel material	Q235B, Q355B
Surface treatment	Painting or Hot-dip Galvanize
Color	Customized
Service life	50 Years
Wall and Roof	Steel Cladding Sheet, Sandwich Panel
Working scope	Design, Fabrication, Installation

Product Overview

Our modular prefabricated welded H section steel workshop features crane beams and large span ventilation. With a 37,000㎡ fabrication facility including 24,000㎡ workshop space, we utilize advanced production lines for H steel, BOX sections, C/Z purlins, and profiling steel sheets.

Key Advantages

Wide span options: Single or multi-span configurations
Cost-effective: $50-$80/m² depending on specifications
Durable: 20-50 year service life
Rapid construction: Quick assembly and installation
Enhanced performance: Earthquake resistant, waterproof, energy efficient

Technical Specifications

Component	Specification
Main Frame	H beam: 400-1500mm, Thickness: web plate 6-32mm, wing plate 6-40mm
Materials	Q235B, Q355B or custom specifications
Purlin	C120-C320 or Z100-Z20 profiles
Bracing	X-type or angle/round pipe configurations
Roof & Wall	Sandwich panels or color plates (0.5mm/0.6mm)
Surface Treatment	Anti-rust painting or hot dip galvanized

Structural Systems

System	Components
Main Steel Frame	H section steel Q355 with alkyd painting
Bracing System	Round steel bars (Φ20-Φ32), angle steel (L50×5)
Wall & Roof	Corrugated steel plate or sandwich panels (EPS/fiber glass/rock wool/PU)
Accessories	Ventilators (Φ600), FRP skylights, sliding doors, drainage systems

Manufacturing Capabilities

Our facility features three H steel production lines, BOX production lines, C/Z purlin lines, and advanced profiling equipment including plasma cutting machines.

Installation & Support

We provide detailed shop drawings and can conduct sample installations at our facility. Our team offers comprehensive guidance throughout the assembly process.

Packaging & Shipping

All components are securely packed for ocean transportation in 40'HQ containers, with careful loading by experienced personnel using cranes and forklifts.

Our Advantages

Professional design team for custom solutions
Advanced fabrication equipment and skilled workforce
Comprehensive project management from design to installation
Strict quality control adhering to ISO9001 standards
Dedicated after-sales support and maintenance services

Quotation Requirements

To provide an accurate quote, we require the following project details:

Item	Details Required
Location	Country and region
Dimensions	Length × Width × Height (mm)
Environmental Loads	Wind speed, snow load, seismic requirements
Insulation	Material preference (EPS, fiberglass, rockwool, PU)
Openings	Door and window quantities/sizes
Crane Specifications	Quantity, lifting capacity, and height requirements
