Modern Light Steel Frame Cattle Shed with Galvanized Steel Structure

Large Image : Modern Light Steel Frame Cattle Shed with Galvanized Steel Structure

Product Details:

Place of Origin:	China
Brand Name:	Ruly Steel
Certification:	SGS, BV, ISO
Model Number:	Ruly0182

Payment & Shipping Terms:

Minimum Order Quantity:	500 Square Meter
Price:	USD29-USD99 Per Square Meter
Packaging Details:	As request
Delivery Time:	30 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	20000 Square Meter Per Month

Contact Now

Modern Light Steel Frame Cattle Shed with Galvanized Steel Structure

Description

Features:	Steel Structure Warehouse, Steel Sheds,	Application:	Light Steel Frame Structure, Metal Sheds, Open Bays Buildings
Type:	Light Steel Frame Structure	Raw Steel Material:	Q235B, Q355B, ASTM A36
Service Life:	50 Years	Wall And Roof:	Corrugated Steel Cladding Sheet
Surface Treatment:	Painting	Working Scope:	Design,Fabrication, Installation
Highlight:	steel structure building , metal warehouse construction , Open Bays Sheds Steel Frame Structure

Modern Light Steel Frame Cattle Shed

A durable steel structural system designed for efficient dairy or beef cattle farming, featuring high-strength galvanized steel framework with excellent load-bearing capacity and weather resistance.

Key Attributes

Application	Light Steel Frame Structure, Metal sheds, Open bays Buildings
Features	Steel Structure Warehouse, Steel Sheds
Type	Light Steel Frame Structure
Raw steel material	Q235B, Q355B, ASTM A36
Service life	50 Years
Wall and Roof	Corrugated steel cladding sheet
Surface treatment	Painting
Working scope	Design, Fabrication, Installation

Structural Design Features

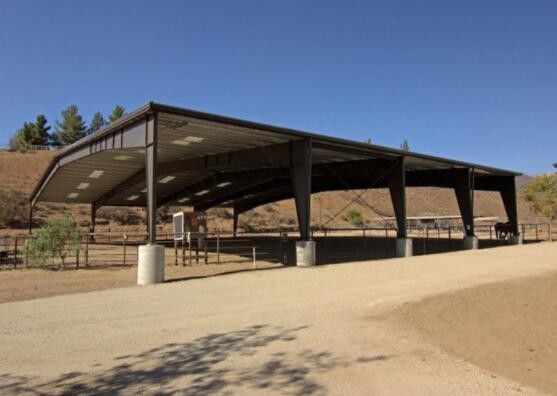

The main framework consists of high-strength hot-dip galvanized I-beams or H-shaped steel columns and beams, connected with high-strength bolts for exceptional stability and load capacity.

Roof features large-span lightweight portal frame design with corrugated color-coated steel sheets (single-layer or insulated sandwich panels) for effective weather protection and drainage.

Technical Specifications

Component	Specification
Main Steel Frame (Column/Beam)	Q235, Q345 Welded Steel
Secondary Frame (Purlin)	Q235 C and Z purlin
Knee brace	Q235 Angle Steel
Wall/Roof Panels	Sandwich Panel / Corrugated Steel Sheet
Wind Resistance	Grade 12
Earthquake Resistance	Grade 8
Temperature Range	-50°C to +50°C
Certifications	CE, SGS, ISO9001:2008, ISO14001:2004

Key Advantages

High strength and light weight: Superior strength-to-weight ratio enables large-span structures
Durability: Excellent plasticity and toughness for dynamic load adaptation
Industrialized production: Precision manufacturing in controlled factory environment
Fast construction: Prefabricated components enable rapid on-site assembly
Cost efficiency: Reduced foundation requirements and faster ROI
Sustainability: Steel is 100% recyclable with minimal environmental impact

Manufacturing Capabilities

Our factory features three dedicated production lines with advanced equipment including plasma cutting machines for precision steel fabrication.

Comprehensive Services

Structural steel fabrication, painting, galvanizing, and pre-assembly
Complete design, fabrication and installation services
Engineering drawings development based on your specifications
Professional engineering consulting

Quotation Requirements

Please provide the following information for accurate pricing:

Item	Details Required
Location	Country and specific area
Dimensions	Length × Width × Height (in mm)
Environmental Loads	Wind speed, snow height, earthquake level
Wall Requirements	Brickwall height if needed (1.2m or 1.5m)
Insulation	Type required (EPS, fiberglass, rockwool, PU)
Openings	Door and window quantities with sizes
Equipment	Crane specifications if required
