Lightweight Steel Frame Warehouse Q235B Q355B 50-Year Lifespan

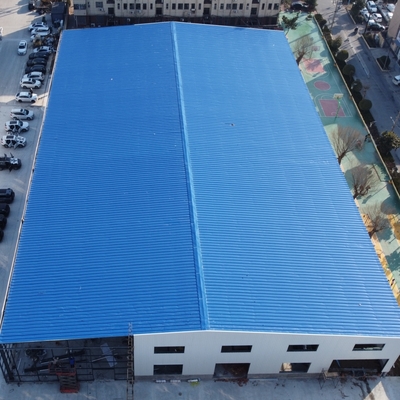

Large Image : Lightweight Steel Frame Warehouse Q235B Q355B 50-Year Lifespan

Product Details:

Place of Origin:	China
Brand Name:	Ruly Steel
Certification:	SGS, BV, ISO
Model Number:	Ruly0220

Payment & Shipping Terms:

Minimum Order Quantity:	500 Square Meter
Packaging Details:	As request
Delivery Time:	30 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	20000 Square Meter Per Month

Contact Now

Lightweight Steel Frame Warehouse Q235B Q355B 50-Year Lifespan

Description

Features:	Lightweight Steel Frame Building	Application:	Fabrication Steel Structure Warehouse
Type:	Steel Structure Warehouse	Raw Steel Material:	Q235B, Q355B
Working Scope:	Design,Fabrication, Installation	Surface Treatment:	Painting
Service Life:	50 Years	Wall And Roof:	Steel Cladding Sheet
Highlight:	steel structure building , metal warehouse construction , Q235B Fabrication Steel Structure Warehouse

Fabrication Steel Structure Lightweight Steel Frame Building / Steel Structure Fabrication

Product Attributes

Application	Fabrication Steel Structure Warehouse
Features	Lightweight Steel Frame Building
Type	Steel Structure Warehouse
Raw steel material	Q235B, Q355B
Working scope	Design, Fabrication, Installation
Surface treatment	Painting
Service life	50 Years
Wall and Roof	Steel cladding sheet

Product Description

Steel structure warehouse and factory buildings are among the most common structural forms in modern construction engineering. Due to their lightweight nature and simple construction, steel structures are widely used in large-scale factory buildings, stadiums, and high-rise structures. These structures consist of steel components (profiles, plates) connected through specific methods, with connection quality directly impacting overall structural safety.

Structure Specifications

Structure Type	Gable frame, single ridge, clean span or two spans
Length	40-100m
Width	20-80m
Eave Height	6-15m
Roof Slope	10%
Gable Wall Column Spacing	7.5m
Roof	Glass wool sandwich panel
Wall	Glass wool sandwich panel
Door	Sliding door
Window	Ribbon Skylight
Height difference between indoor and outdoor	300mm

Material List and Technical Parameters

Item name	Specification	Material Parameter	Technical Treatment
Column	H-section steel	Q235B,Q345B	Paint or Hot dip galvanized
Beam	H-section steel	Q235B,Q345B	Paint or Hot dip galvanized
Bracing	Steel rod, Steel pipe, Angle steel	Q235B,Q345B
Purlin	C or Z shape, thickness: 1.8mm~3.0mm	Q235B,Q346B	Hot dip galvanized
Wall and roof panel	EPS, Rock wool, Pu, Glass wool Sandwich panel or Single sheet	Steel T=0.426~0.8mm, insulation T=50~150mm	Alu-zinc 150g, Fluorocarbon paint
Door	Sliding or rolling door	Steel or Aluminum sheet, T=1.0~1.5mm	Paint or Hot dip galvanized
Window	Alloy-Glass, Aluminium alloy-shutter	T=1.0~2.0mm	Alloy
Lighting panel	FRP, T=1.5mm or T=1.8mm	Coefficient of thermal expansion: 2.2x10-5/cm/cm/℃	Light transmittance 85%
Ventilator	Turbine ventilator, and electric type	Steel, stainless steel, PC	Paint or Hot dip galvanized, 304
Gutter	Galvanized or stainless steel plate	T=2.0mm	Hot dip galvanized, 304
Downpipe	PVC pipe, Color steel pipe T=0.5mm	Φ110, 160, 200	Paint
Bolt	Ordinary, high strength	10.9S, 4.8s	Hot dip galvanized
Anchor bolt	Steel rod M24, M27, M30	Q235B

Our Services

Structural steel fabrication, painting, galvanizing, pre-assembly
Designing, fabrication and installation for Prefabricated steel structure buildings
Deepening or designing fabrication drawings/shop drawings based on your architectural and construction drawings
Engineering consulting service

Our Steel Structure Production Line

Our steel structure fabrication factory covers 35,000㎡ with 20,000㎡ of workshop area. We operate three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines, and various profiling steel sheet machines with advanced equipment including plasma cutting machines.

Frequently Asked Questions

Item	Questions	Answers
1	Are you a manufacturer or trading company?	We are a manufacturer. You're welcome to visit us anytime. Our quality control flow and sales team will demonstrate our professionalism, and you'll receive the most competitive pricing after visiting.
2	Is your price competitive compared with other companies?	Our business objectives are to provide the best price for equivalent quality and the best quality for equivalent price. We strive to reduce your costs while guaranteeing you receive the best product for your investment.
3	Can you send engineers or a team to install my project?	We provide detailed installation drawings for free for each project. We can send engineers to guide installation or a complete construction team to handle installation directly.
4	Do you offer design services?	Yes, we can design full solution drawings according to your requirements. Using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel), we provide proposal drawings, shop drawings, 3D Tekla models, and construction/installation drawings.
5	What is the delivery time?	Delivery time depends on order quantities. Typically, delivery to the nearest Chinese seaport takes 40 days after receiving deposit.
6	How do you pack and transport?	All structure components, panels, bolts, and accessories are packed with standard packaging suitable for ocean transportation and loaded into 40'HQ containers.
