Double Span Prefabricated Steel Warehouse with 50-Year Lifespan

Double Span Prefabricated Steel Warehouse with 50-Year Lifespan
Double Span Prefabricated Steel Warehouse with 50-Year Lifespan
Double Span Prefabricated Steel Warehouse with 50-Year Lifespan Double Span Prefabricated Steel Warehouse with 50-Year Lifespan Double Span Prefabricated Steel Warehouse with 50-Year Lifespan Double Span Prefabricated Steel Warehouse with 50-Year Lifespan Double Span Prefabricated Steel Warehouse with 50-Year Lifespan Double Span Prefabricated Steel Warehouse with 50-Year Lifespan Double Span Prefabricated Steel Warehouse with 50-Year Lifespan

Large Image :  Double Span Prefabricated Steel Warehouse with 50-Year Lifespan

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, ,ISO, BV
Model Number: Ruly0323
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Double Span Prefabricated Steel Warehouse with 50-Year Lifespan

Description
Application: Prefabricated Steel Structure Warehouse Steel Structure Building Usage: Factory Buildings, Garment Factory, Clothes Plant
Type: Steel Structure Warehouse Raw Steel Material: Q235B, Q355B
Surface Treatment: Painting Or Hot-dip Galvanize Service Life: 50 Years
Wall And Roof: Steel Cladding/Rock Wool/Glass Wool/EPS/PU Sandwich Panel Columns And Beam: H Section Column&Beam
Highlight:

Double Span Steel Structure Warehouse

,

120m Steel Structure Warehouse

,

Double Span Steel Structure Building

Double Span Prefabricated Steel Structure Warehouse
Product Specifications
Attribute Value
Application Prefabricated Steel Structure Warehouse
Usage Factory Buildings, Garment Factory, Clothes Plant
Type Steel Structure Warehouse
Raw steel material Q235B, Q355B
Surface treatment Painting or Hot-dip Galvanize
Service life 50 Years
Wall and Roof Steel cladding/Rock wool/Glass wool/EPS/PU sandwich panel
Columns and Beam H Section Column & Beam
Project Overview

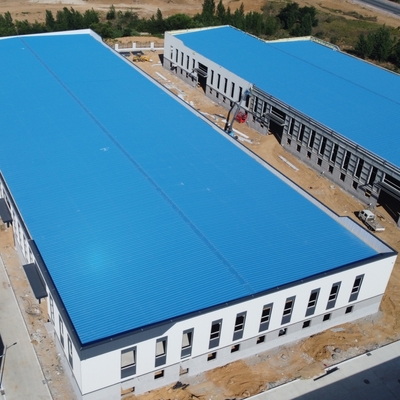

This double-span prefabricated steel structure warehouse covers 7200 square meters with a portal frame design that provides large, unobstructed space and efficient construction.

Technical Specifications
Feature Specification
Structure Type Portal frame, two ridges, two spans
Dimensions 120m (L) × 60m (W) × 8m (H)
Roof Slope 20%
Gable Wall Column Spacing 7.5m
Roof Material 0.5mm thick steel galvanized board
Wall Material 0.5mm thick steel galvanized board + 3m block wall
Door Type Sliding door
Window Type Ribbon Skylight
Construction Materials
Item Specification
Main Pillar & Beams Q345B
Roof Purlins C200*70*20*2.5 Galvanize
Tie Bar Φ114*4
Roof Panel 0.5mm Galvanized Steel Plate
Ribbon skylight 1.2mm FRP
Floor Steel deck 1.00 mm steel plate
Production Capabilities

Our 35,000㎡ fabrication facility includes three H steel production lines, BOX production lines, and advanced equipment for precision manufacturing.

Double Span Prefabricated Steel Warehouse with 50-Year Lifespan 0
Installation Process
  • Detailed shop drawings provided prior to installation
  • On-site engineering guidance throughout construction
Double Span Prefabricated Steel Warehouse with 50-Year Lifespan 1
Customization Requirements
  1. Project location (country/region)
  2. Building dimensions (L×W×H in mm)
  3. Maximum wind load (kn/m², km/h, or m/s)
  4. Maximum snow load (kn/m² or mm)
  5. Earthquake resistance level
  6. Brick wall requirements (height if needed)
  7. Thermal insulation specifications
  8. Door quantity and dimensions
  9. Window quantity and dimensions
  10. Crane requirements (capacity and height if needed)
All specifications can be customized to meet specific project requirements. Contact us for detailed engineering consultation.
