Customized Prefabricated Engineered Steel Structure Workshop Warehouse Hangar Showroom Supermarket Building Construction
Product Specifications
| Gutter |
Stainless Steel/Color Steel Sheet |
| Beam |
H-Section Steel |
| Software Used |
AUTOCAD 3D3S PKPM |
| Cladding Material |
Steel Color Sheets/Sandwich Panels |
| Port |
Ningbo, China |
| Finishing |
Painting |
| Snow Load |
30~200kg Per Sqm |
| Length |
Customized |
| Sandwich Panel Thickness |
Between 50-200mm |
| Surface |
Painting or Hot Dip Galvanized |
| Warranty |
30 Years |
| Carbon Structural Steel |
Q235 |
| Dimension |
Up to customers' requirements |
| Door |
Sliding Door, PVC door/Steel door/Color steel door/Sandwich panel door/Roller door, Sliding door or flat open or shutter door |
| Trademark |
Carbon Structural Steel, YB |
| Drawing |
CAD, TEKLA, 3D Model, PKPM, BIM |
| Corrosion Resistance |
Yes |
| Hs Code |
9406900090 |
| Design |
Customized |
| Transport Package |
Standard Export Package or Customer's Requirement |
| Features |
Prefab Steel Structure, Large Span, Multi-Floor |
| Purlin |
C/Z Shape Steel Channel, C/Z Galvanized Steel (Q235) |
| Color |
Optional |
| Windows |
Aluminum Alloy Window, PVC or Aluminum Alloy, Glass window/PVC window/Aluminum window, Sandwich Panel |
Product Overview

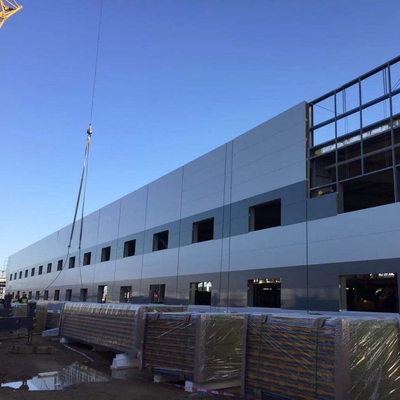

Our customized prefabricated steel structures are engineered solutions for workshops, warehouses, hangars, showrooms, and supermarkets. These buildings offer exceptional durability, flexibility, and cost-effectiveness for various industrial applications.
Key Features
- High-strength steel construction with 30-year warranty
- Customizable dimensions and configurations
- Excellent corrosion resistance and weatherproofing
- Multiple door and window options available
- Energy-efficient insulation options
- Quick assembly with prefabricated components
- Compatible with various cladding materials
Multi-story Steel Frame Structures
Our multi-story steel frame structures are ideal for urban developments, offering maximum vertical space utilization with superior load-bearing capacity. These buildings are perfect for commercial complexes, residential towers, and mixed-use developments.
Our Manufacturing Facility
Our 35,000 square meter manufacturing facility is equipped with modern production lines capable of producing 1,500 tons of steel structures monthly. We hold ISO 9001, ISO 14001, and OHSAS 18001 certifications, ensuring the highest quality standards in all our products.
Global Project Portfolio
Projects in Africa
Projects in Asia
Installation Support
We provide comprehensive installation support including detailed shop drawings and on-site assembly guidance. For complex projects, we can arrange for our engineers to supervise the installation process.
Quality Assurance
Our dedicated QC team implements rigorous quality control measures throughout the manufacturing process to ensure all components meet international standards and customer specifications.
Packaging and Shipping
All structural components, panels, bolts, and accessories are carefully packaged for ocean transportation, typically loaded into 40'HQ or 40'OT containers. Our skilled loading team ensures safe handling to prevent any damage during transit.
Why Choose Our Steel Structures
- Professional design team offering customized solutions
- Skilled fabrication team with advanced equipment
- Comprehensive one-stop service from design to installation
- Strict quality control at every production stage
- Reliable after-sales support and maintenance services
Request a Quote
To receive an accurate quotation, please provide the following information about your project:
| 1 |
Location (where will it be built?) |
_____country, area |
| 2 |
Size: length*width*height |
_____mm*_____mm*_____mm |
| 3 |
Wind load (max. wind speed) |
_____kn/m2, _____km/h, _____m/s |
| 4 |
Snow load (max. snow height) |
_____kn/m2, _____mm |
| 5 |
Anti-earthquake |
_____level |
| 6 |
Brickwall needed or not |
If yes, 1.2m high or 1.5m high |
| 7 |
Thermal insulation |
If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested |
| 8 |
Door quantity & size |
_____units, _____(width)mm*_____(height)mm |
| 9 |
Window quantity & size |
_____units, _____(width)mm*_____(height)mm |
| 10 |
Crane needed or not |
If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
Technical Specifications

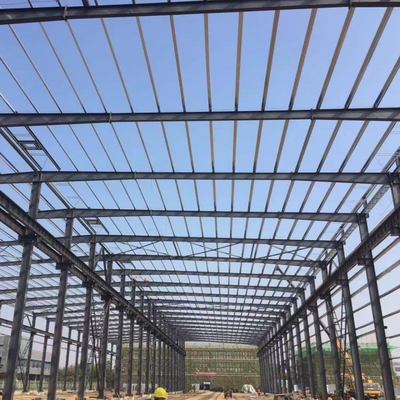

Main Steel Frame System
| Main structure |
H section steel Q345, alkyd painting, two primary painting, two finish painting |
| Roof purlin |
XZ160*60*20*2.5, galvanized |
| Wall purlin |
XZ160*60*20*2.5, galvanized |
| Intensive bolt |
Grade 10.9 |
| Turn buckle bolt |
M20+2, steel Q235, processing |
| Anchor bolt |
M24, steel Q235, processing |
| Ordinary bolt |
Galvanized bolt M20 |
| Ordinary bolt |
Galvanized bolt M12 |
| Brace nut |
Galvanized bolt M12 |
Bracing System
| Cross brace |
Φ20 round steel bar Q235, process and painted (alkyd painting) |
| Angle brace |
L50*5 angle steel Q235, process and painted (alkyd painting) |
| Column bracing |
Φ25 round steel bar Q235, process and painted (alkyd painting) |
| Tie bar |
Φ127*3 steel pipe Q235, process and painted (alkyd painting) |
| Batter brace |
Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting) |
Wall & Roof System
| Roof panel |
Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
| Wall panel |
Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
| Edge cover |
0.5mm color plate, angle Alu. |
| Fittings & accessories |
Nails, glue etc. |
| Unpowered ventilator |
Diameter Φ600, stainless steel |
| Sky lighting band |
1.2mm FRP, double layer |
| Sliding door |
sandwich panel door |
Roof Drainage System
| Gutter |
0.5mm color steel plate |
| Rainspout pipes |
Φ110 PVC pipe |
Frequently Asked Questions
Are you a manufacture factory or trading company?
We are manufacture factory. And you are welcomed to visit us at any time. The quality control flow and sales team will show you our professionalism. Also you will can get best and most competitive price after visiting us.
Is your price competitive compared with other companies?
Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything we can to reduce your cost and guarantee you get the best product that you paid for.
Can you send engineers or whole team to install my project?
We will give detailed installation drawings for free. We can send engineers as installation director or a team upon request.
Do you accept container loading inspection?
You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
Do you offer designing service for us?
Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc. we can design complex industrial building like office mansion, super marker, auto dealer shop, shipping mall, 5 star hotel.
What is the delivery time?
Delivery time depends on order quantities. In general the delivery time to nearest seaport in China will be 40 days after receiving deposit.
How can you get a quotation for your projects?
You can contact us by email, phone, WhatsApp, Viber and so on 24*7 and you will get reply within 8 hours.
