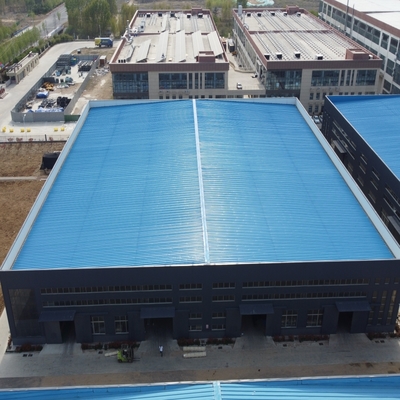

Portal Frame Steel Beam Column Steel Structure Warehouse
Product Attributes
| Attribute |
Value |
| Raw Steel Material |
Q235B, Q355B, ASTM A36 |
| Application |
Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part |
| Surface Treatment |
Painting or Hot-DIP Galvanized |
| Service Life |
50 Years |
| Wall and Roof |
Steel cladding sheet, Sandwich Panel |
| Columns & Beams |
H-Section Steel |
| Shot Blasting Level |
SA 2.5 |
| Certification |
CE, AISC, SGS, BV, ISO, GB |
| Installation |
Engineer Guidance on Site |
| Drawing |
CAD, TEKLA, 3D Model, PKPM, BIM |
| HS Code |
9406900090 |
| Transport Package |
Standard Export Package or Customer's Requirement |
| Production Capacity |
30000ton/Year |
| Features |
Prefab Steel Structure, Large Span, Multi-Floor |
| Connection Form |
Bolt Connection |
| Parapet Wall |
As Requested |
Product Description
Portal Frame Steel Beam Column Warehouse Prefab Metal Steel Structure Building With High Degree Of Customization
- Fast construction speed: Prefabricated steel structures are manufactured in factories and only require simple installation at the site, significantly shortening the construction cycle.
- Good durability: Steel structure buildings can extend their service life through appropriate anti-corrosion treatment. The steel frame is made of ultra strong anti-corrosion and high-strength cold-rolled galvanized sheet.
- Strong construction flexibility: The construction process of prefabricated steel structures is flexible and adaptable, capable of accommodating various complex construction environments.
- High engineering quality: Prefabricated steel structures are manufactured and tested in factories, ensuring precise fabrication of components according to design requirements.
- Excellent seismic performance: Due to the high strength and ductility of steel, prefabricated steel structures exhibit superior seismic performance.
- Environmentally friendly and energy-saving: Prefabricated steel structures adopt zero-waste production, reducing construction waste and achieving environmental protection.
Material List
| Items |
Specification |
| Main Steel Frame - Column |
Q235, Q355 Welded H Section Steel |
| Main Steel Frame - Beam |
Q235, Q355 Welded H Section Steel |
| Secondary Frame - Purlin |
Q235 C and Z purlin |
| Knee bracing |
Q235 Angle Steel |
| Tie Bar |
Q235 Circular Steel Pipe |
| Bracing |
Q235 Round Bar |
| Column and Horizontal Bracing |
Q235 Angle Steel, Round Bar or Steel Pipe |
| Maintenance system - Roof Panel |
EPS Sandwich Panel / Fiber Glass Sandwich Panel / Rock Wool Sandwich Panel / PU Sandwich Panel / Steel Sheet |
| Maintenance system - Wall Panel |
Sandwich Panel / Corrugated Steel Sheet |
| Accessories - Window |
Aluminium Alloy Window / PVC Window |
| Accessories - Door |
Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door |
| Downspout |
PVC |
| Structure Usage |
Up to 50 years |
| Finishing Options |
Vast array of colors and textures available |
| Paint Options |
Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized. |
Service Advantages
- Professional design: We have a senior design team that can accurately customize drawings or calculate steel usage to meet your personalized needs.
- Exquisite craftsmanship: A skilled production team combined with advanced equipment customizes production plans for each project to ensure excellent quality.
- One stop service: With rich project experience, we provide comprehensive and integrated proposals, from design to installation.
- Strict quality control: A professional quality control team follows international standards to ensure that products and services perfectly meet your requirements.
- High quality after-sales service: Quickly responds to customer needs, provides comprehensive maintenance services, and ensures long-term stable operation of the project.
Project Cases
Project Information - Marriott AC Hotel Guyana & Retail Building
| Building Structure Type |
3 & 6 Floor Steel Buildings |
| Steel Structure Weight |
860 Ton |
| Raw Steel Material |
ASTM A572 G50 |
| Welding Technic |
AWS-D1.1 |
| Maximum Thickness Of Steel Plate |
65mm |
| Our Work Scope |
Design 3d Tekla Model, Fabrication Drawings, Installation Drawings; Fabrication Steel Structure & Loading |
| Project Location |
Guyana |
| Date |
January, 2023 - March, 2023 |
Project Information - Water Treatment Plant
| Building Structure Type |
Multi-Floor Buildings |
| Steel Structure Weight |
705 Ton |
| Raw Steel Material |
ASTM A36 |
| Welding Technic |
AWS-D1.1 |
| Maximum Thickness Of Steel Plate |
74mm |
| Our Work Scope |
1. Design 3D Tekla Model, Fabrication Drawings, Installation Drawings; 2. Fabrication Steel Structure & Loading |
| Project Location |
Manila, Philippines |
| Date |
October, 2017 - December, 2017 |
Project Information - Logistics Steel Warehouse For High-speed Rail Station
| Building Structure Type |
Portal Frame Pre-Engineered Steel Buildings |
| Building size |
Total Area: 24,570 Sqm Length: 270m Width 91m; Eave Height: 11m |
| Steel Structure Weight |
985 Ton |
| Raw Steel Material |
ASTM A36 |
| Our Work Scope |
1. Design 3D Tekla Model, Fabrication Drawings, Installation Drawings; 2. Fabrication Steel Structure & Roof&Wall Steel Panel |
| Project Location |
Qingdao City, China |
| Date |
February, 2023 - April, 2023 |
Our Company
Qingdao Ruly Steel Engineering Co., Ltd is a professional steel structure fabrication and engineering company, located in Qingdao, China, which integrates steel structure design, research and development, manufacturing and installation. The project types include prefabricated steel workshop, warehouse, logistics park and other light steel structure of the civil building system, high-rise residential buildings, exhibition center, stadium, airport station and bridge, Power plant, chemical plant, oil and gas, mining, etc.
Our company's steel structure processing plant now covers an area of 35,000 square meters, plant 20,000 square meters. More than 100 employees. The monthly production capacity for steel structure is more than 1500 Tons. Our steel structure components include light/heavy H steel, BOX steel, Cross shaped section steel, large diameter submerged arc straight-weld pipe, steel model structure, C/Z purlin and machining fitting components.
There are three subordinate steel structure companies, which have passed and strictly implemented ISO9001:2008 quality management system, ISO14001:2004 environmental system, GB/T28001:2001 occupational health system, and obtained ASTM certification in the United States, and international SGS product certification. Obtained the right of export, design, installation and consultation from the ministry of foreign trade and economic cooperation.
Quality first, Technology ahead, Innovation continually is our entrepreneurial concept. We build strong relationships of trust with our clients, truly understanding their needs and bringing them the most reasonable solutions.
Certificate
Our Service
- Structural steel fabrication, painting, galvanizing, pre-assembly
- Designing, fabrication and installation for Prefabricated steel structure building
- Deepen or design the fabrication drawing or shop drawing based on your architectural drawing and construction drawing
- We offer reasonable advices for usage, maintenance and technically improve
Quality Control
QC/Technical Support
Raw material quality control
Thickness tolerance <0.25mm
Yield and tension strength testing in-house
Third party inspection certificate
Supply traceable mill certificate
Structural steel fabrication quality control
100% testing dimension tolerance <1mm
20% sample welding line ultrasonic testing, no fault, full penetration
20% magnetic powder testing, no bubble, no defect, Smooth and Full
Supply third-party inspection assistance
Shot blasting and painting quality control
Shot blasting grade Sa. 2.5 Metal luster, no rust, no oil dirt, no welding spatter, Roughness >75um
Paint primer within 5 hours after shot blasting, Holiday-free coatings, smooth, No dust, Dry Film Thickness (DFT) >75UM
Pre-assembly testing the connection details
Packing And Delivery
Safe packaging and efficient loading
- Standard sea freight packaging: All structural components, panels, bolts, and accessories are packaged in reinforced sea freight packaging to ensure that the product is not damaged during transportation.
- 40' HQ container loading: Optimize loading space, improve transportation efficiency, and ensure product safety and stability.
- Professional loading team: Operated by skilled workers using cranes and forklifts, strictly following procedures to prevent damage to goods.
Customer Visit
Component
FAQ
Q: You are manufacture factory or trading company?
A: We are manufacture factory. And you are welcomed to visit us at any time. The quality control flow and sales team will show you our professionalism. Also you will can get best and most competitive price after visiting us.
Q: Is your price competitive compared with other companies?
A: Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything we can to reduce your cost and guarantee you get the best product that you paid for.
Q: Can you send engineers or whole team to install my project?
A: We will give detailed installation drawings for free. We can send engineers as installation director or a team upon request.
Q: Do you accept container loading inspection?
A: You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
Q: Do you offer designing service for us?
A: Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc. we can design complex industrial building like office mansion, super marker, auto dealer shop, shipping mall, 5 star hotel.
Q: What is the delivery time?
A: Delivery time depends on order quantities. In general the delivery time to nearest seaport in China will be 40 days after receiving deposit.
Q: How can you get a quotation for your projects?
A: You can contact us by email, phone, WhatsApp, Viber and so on 24*7 and you will get reply within 8 hours.
