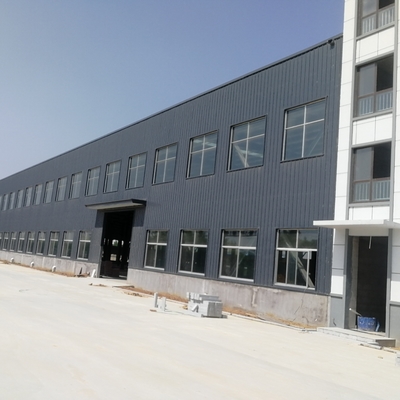

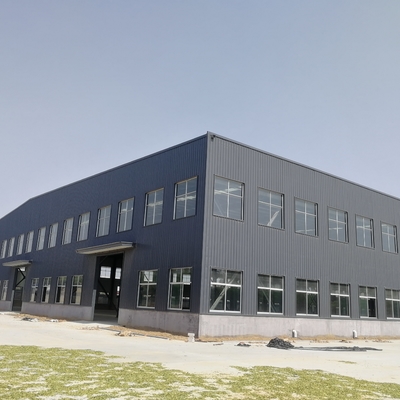

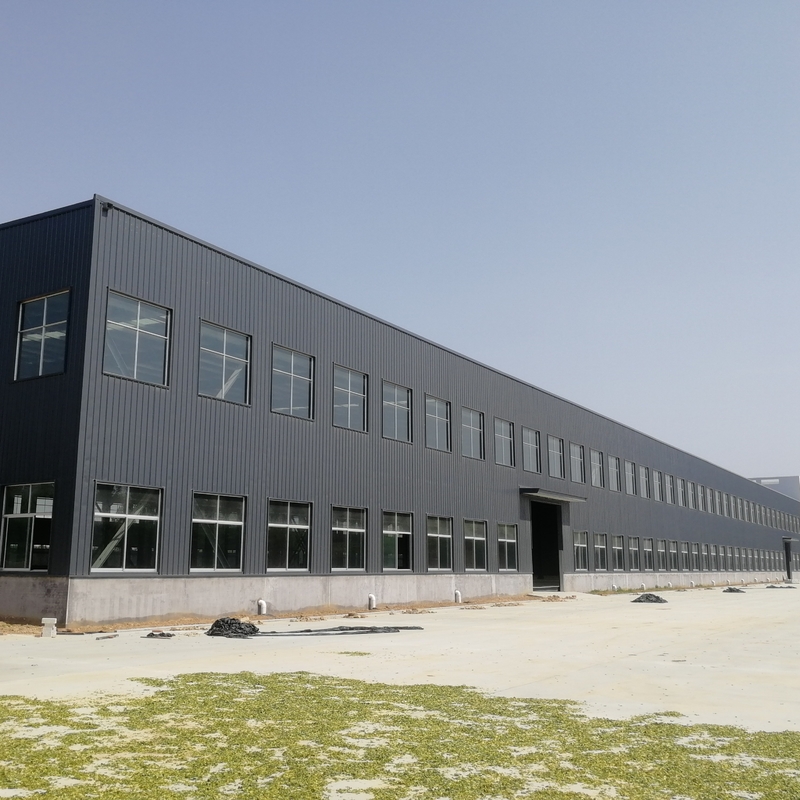

Q235/Q355 Prefab Easy Assembly Building Construction Steel Structure/Steel Frame Warehouse
Product Attributes
| Attribute |
Value |
| Raw Steel Material |
Q235B, Q355B, ASTM A36 |
| Application |
Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part |
| Surface Treatment |
Painting or Hot-DIP Galvanized |
| Service Life |
50 Years |
| Wall and Roof |
Steel cladding sheet, Sandwich Panel |
| Columns & Beams |
H-Section Steel |
| Shot Blasting Level |
SA 2.5 |
| Certification |
CE, AISC, SGS, BV, ISO, GB |
| Installation |
Engineer Guidance on Site |
| Drawing |
CAD, TEKLA, 3D Model, PKPM, BIM |
| HS Code |
9406900090 |
| Transport Package |
Standard Export Package or Customer′s Requirement |
| Production Capacity |
30000ton/Year |
| Features |
Prefab Steel Structure, Large Span, Multi-Floor |
| Connection Form |
Bolt Connection |
| Parapet Wall |
As Requested |
Product Description
Steel structure plant features:
- Light weight, high strength, large span construction
- Short construction period reduces investment costs
- Fire resistance is poor, corrosion resistance, not suitable for low temperature areas
- Easy to move and recycle, environmentally friendly
Material Specifications
| Items |
Specification |
| Structure Type |
Portal frame structure, truss frame, flat frame structure |
| Length |
20m~200m |
| Width |
20m~50m |
| Eave Height |
8m~30m |
| Roof Slope |
10% or flat |
| Steel beam & Column |
H-section steel, truss steel, steel tube, latticed steel, cross-section steel |
| Roof & Wall insulation panel |
Steel galvanized cladding sheet, sandwich panel |
| Door |
Sliding door, folding door, roller shutter door |
| Window |
PVC fixed window and aluminum alloy window |
| Anti-corrosion for steel structure |
Painting or Hot dip galvanized |
Project Showcase
Project Usage: High-End Intelligent Hydraulic Machine Tool Equipment
Size of the plant: Total Area 9,702 Sqm
Steel Structure Weight: 630Ton

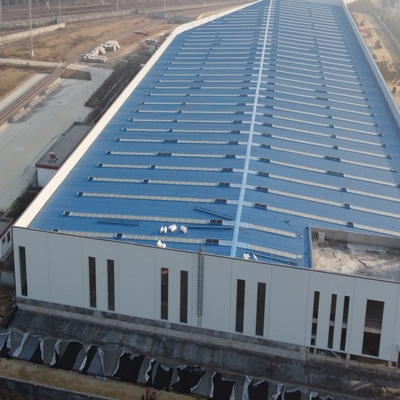

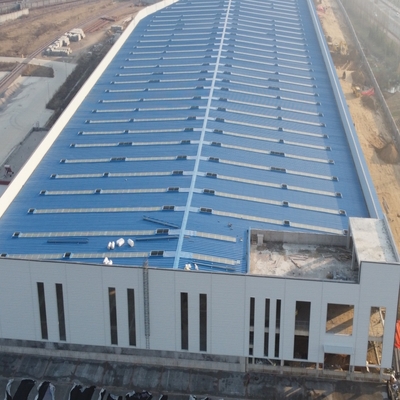

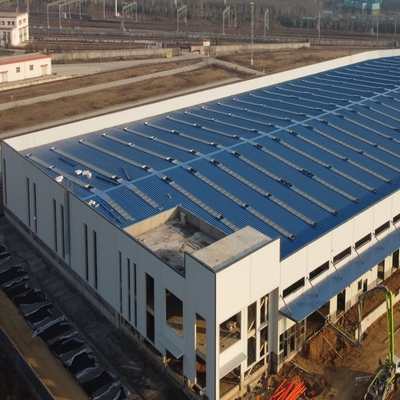

Project Usage: Logistics Steel Warehouse For High-Speed Rail Station
Size of the plant: Total Area 24,570 Sqm
Steel Structure Weight: 985Ton
Project Usage: Textile Manufacturing Machine Machine Tool Equipment
Size of the plant: Total Area 6,615 Sqm
Steel Structure Weight: 750Ton
Our Company
Qingdao Ruly Steel Engineering Co., Ltd is a professional steel structure fabrication and engineering company, located in Qingdao, China, which integrates steel structure design, research and development, manufacturing and installation. The project types include prefabricated steel workshop, warehouse, logistics park and other light steel structure of the civil building system, high-rise residential buildings, exhibition center, stadium, airport station and bridge, Power plant, chemical plant, oil and gas, mining, etc.
Our company's steel structure processing plant now covers an area of 35,000 square meters, plant 20,000 square meters. More than 100 employees. The monthly production capacity for steel structure is more than 1500 Tons. Our steel structure components include light/heavy H steel, BOX steel, Cross shaped section steel, large diameter submerged arc straight-weld pipe, steel model structure, C/Z purlin and machining fitting components.
There are three subordinate steel structure companies, which have passed and strictly implemented ISO9001:2008 quality management system, ISO14001:2004 environmental system, GB/T28001:2001 occupational health system, and obtained ASTM certification in the United States, and international SGS product certification. Obtained the right of export, design, installation and consultation from the ministry of foreign trade and economic cooperation.
Quality first, Technology ahead, Innovation continually is our entrepreneurial concept. We build strong relationships of trust with our clients, truly understanding their needs and bringing them the most reasonable solutions.
Certificates
Our Services
- Structural steel fabrication, painting, galvanizing, pre-assembly
- Designing, fabrication and installation for Prefabricated steel structure building
- Deepen or design the fabrication drawing or shop drawing based on your architectural drawing and construction drawing
- We offer reasonable advices for usage, maintenance and technically improve
Quality Control
QC/Technical Support
Raw material quality control
- Thickness tolerance <0.25mm
- Yield and tension strength testing in-house
- Third party inspection certificate
- Supply traceable mill certificate
Structural steel fabrication quality control
- 100% testing dimension tolerance <1mm
- 20% sample welding line ultrasonic testing, no fault, full penetration
- 20% magnetic powder testing, no bubble, no defect, Smooth and Full
- Supply third-party inspection assistance
Shot blasting and painting quality control
- Shot blasting grade Sa. 2.5 Metal luster, no rust, no oil dirt, no welding spatter, Roughness >75um
- Paint primer within 5 hours after shot blasting, Holiday-free coatings, smooth, No dust, Dry Film Thickness (DFT) >75UM
- Pre-assembly testing the connection details
Frequently Asked Questions
Q: You are manufacture factory or trading company?
A: We are manufacture factory. And you are welcomed to visit us at any time. The quality control flow and sales team will show you our professionalism. Also you will can get best and most competitive price after visiting us.
Q: Is your price competitive compared with other companies?
A: Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything we can to reduce your cost and guarantee you get the best product that you paid for.
Q: Can you send engineers or whole team to install my project?
A: We will give detailed installation drawings for free. We can send engineers as installation director or a team upon request.
Q: Do you accept container loading inspection?
A: You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
Q: Do you offer designing service for us?
A: Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc. we can design complex industrial building like office mansion, super marker, auto dealer shop, shipping mall, 5 star hotel.
Q: What is the delivery time?
A: Delivery time depends on order quantities. In general the delivery time to nearest seaport in China will be 40 days after receiving deposit.
Q: How can you get a quotation for your projects?
A: You can contact us by email, phone, WhatsApp,Viber and so on 24*7 and you will get reply within 8 hours.
Packaging & Shipping
Firstly, the steel components are fixed on the pallet with steel ropes; secondly, the pallet is lifted by the gantry crane, and at the same time pushed into the container by the forklift truck; lastly, the steel ropes are used to fix the pallet and the steel components again to prevent them from falling off.
Design
For such project, we will design the preliminary layout drawing, 3D Tekla model and installation drawing to contribute to the completion of the project.
Why Choose Us?
- Professional design team, we could design the drawing as your requirement or calculate the steel quantity based on your drawing
- Skilled fabrication team and advanced equipment. We make the independent production schedule to each project
- One-stop service: We have completed lots such kinds of projects, we could provide the integrated proposal for your project
- Professional QC team will guarantee that we will provide the production and service as your request
- After sales service: If it has any questions that need us to do in your process of using, such as the maintain of outside insulation and steel components, just tell us, we will try to provide the service as well as we can
