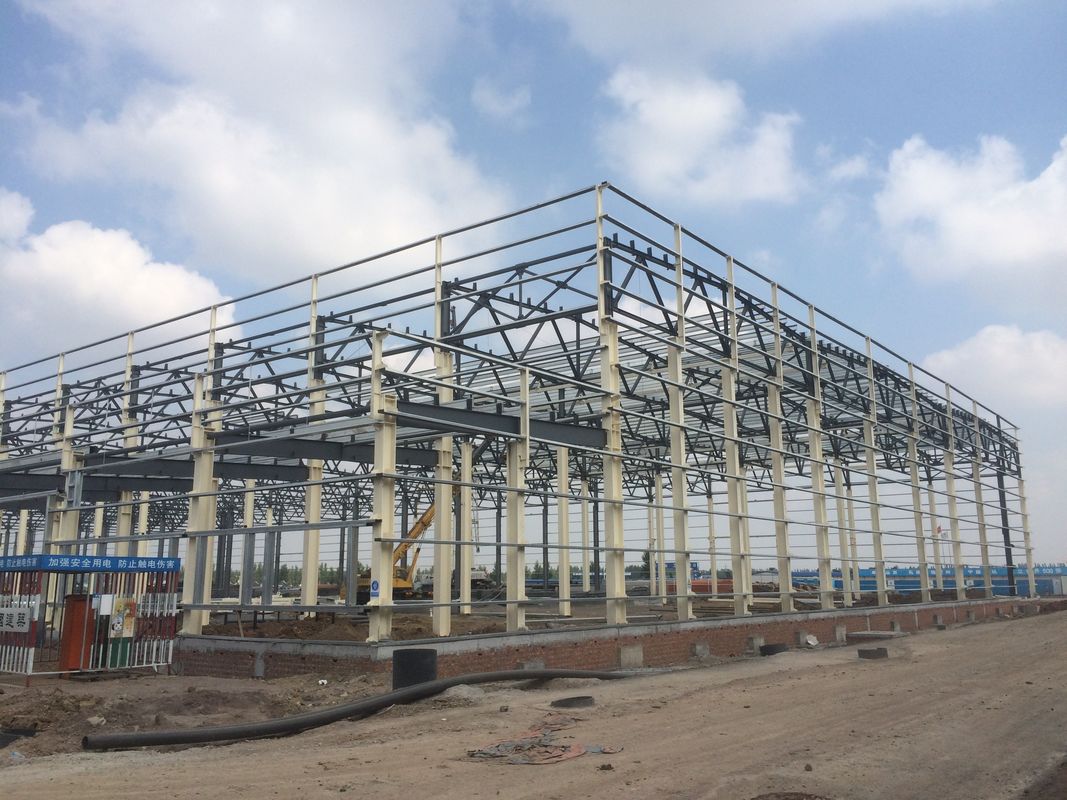

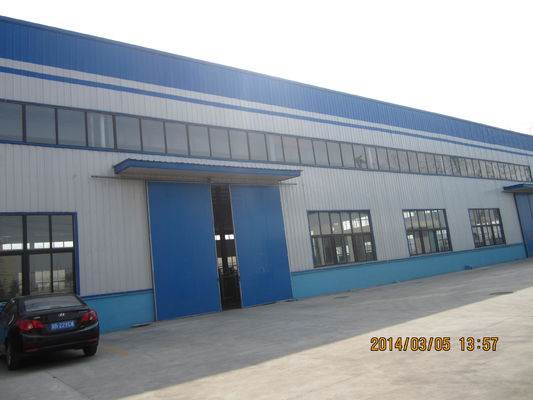

Prefab Steel Structure Warehouse with Sandwich Panel Walls and Roof

Large Image : Prefab Steel Structure Warehouse with Sandwich Panel Walls and Roof

Product Details:

Place of Origin:	Qingdao,China
Brand Name:	Ruly Steel
Certification:	CE,AISC,SGS, BV, ISO,GB
Model Number:	RulyX093

Payment & Shipping Terms:

Minimum Order Quantity:	200 square meters
Price:	USD25-USD45 Per Square Meter
Packaging Details:	40HQ/Open top container
Delivery Time:	20 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	20,000 square meters or 1,500 tons per month

Contact Now

Prefab Steel Structure Warehouse with Sandwich Panel Walls and Roof

Description

Features:	Prefab Steel Structure, Large Span, Multi-Floor	Raw Steel Material:	Q235B, Q355B, ASTM A36
Application:	Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part	Surface Treatment:	Painting Or Hot-DIP Galvanized
Service Life:	50 Years	Wall And Roof:	Steel Cladding Sheet,Sandwich Panel
Columns & Beams:	H-Section Steel	Shot Blasting Level:	SA 2.5
Certification:	CE, AISC, SGS, BV, ISO, GB	Installation:	Engineer Guidance On Site
Drawing:	CAD, TEKLA, 3D Model, PKPM, BIM	HS Code:	9406900090
Transport Package:	Standard Export Package Or Customer′s Requirement	Production Capacity:	30000ton/Year
Connection Form:	Bolt Connection	Parapet Wall:	As Requested
Highlight:	Paint Galvanized Steel Light Sandwich Panel , Prefab Building Structure Light Sandwich Panel , Galvanized Steel Construction Warehouse

Storage Metal Frame Light Sandwich Panel Prefab Building Structure

Product Specifications

Raw Steel Material	Q235B, Q355B, ASTM A36
Application	Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part
Surface Treatment	Painting or Hot-DIP Galvanized
Service Life	50 Years
Wall and Roof	Steel cladding sheet, Sandwich Panel
Columns & Beams	H-Section Steel
Shot Blasting Level	SA 2.5
Certification	CE, AISC, SGS, BV, ISO, GB
Installation	Engineer Guidance on Site
Drawing	CAD, TEKLA, 3D Model, PKPM, BIM
HS Code	9406900090
Production Capacity	30000ton/Year

Key Features

Lightweight construction with high strength-to-weight ratio
Excellent seismic performance due to uniform material properties
Factory prefabrication enables faster construction and lower costs
Environmentally friendly with recyclable materials
Prefabricated steel structure with large span capability
Multi-floor design options available
Bolt connection system for efficient assembly

Material Specifications

Steel Frame	H section steel \| Q235/Q355 steel 8mm/10mm
Welding	Automatic submerged arc welding
Surface Treatment	Sand blasting (SA 2.5) with alkyd paint or galvanized finish
Fasteners	M20 Grade 10.9 intensive bolts, M12 galvanized bolts
Supporting System	Angle brace L50x4, Horizontal brace Φ20, Column brace Φ20, Tie rod Φ89*3
Roof System	C160602.5 purlins with sandwich panel or corrugated steel sheet
Wall System	C160602.5 purlins with sandwich panel or corrugated steel plate
Accessories	Glass cement, self-tapping screws, 0.4mm steel sheet profile trimming

Project Showcase

Project Usage: High-End Intelligent Hydraulic Machine Tool Equipment

Size: Total Area 9,702 Sqm

Steel Structure Weight: 630Ton

Project Usage: Logistics Steel Warehouse For High-Speed Rail Station

Size: Total Area 24,570 Sqm

Steel Structure Weight: 985Ton

Project Usage: Textile Manufacturing Machine Tool Equipment

Size: Total Area 6,615 Sqm

Steel Structure Weight: 750Ton

Quality Assurance

Raw Material Quality Control

Thickness tolerance <0.25mm
Yield and tension strength testing in-house
Third party inspection certificate
Supply traceable mill certificate

Fabrication Quality Control

100% testing dimension tolerance <1mm
20% sample welding line ultrasonic testing
20% magnetic powder testing
Third-party inspection assistance available

Surface Treatment Quality

Shot blasting grade Sa. 2.5
Paint primer within 5 hours after shot blasting
Dry Film Thickness (DFT) >75UM
Pre-assembly testing of connection details

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a manufacturer with our own factory. You're welcome to visit us anytime to see our production process and quality control measures.

Is your price competitive?

We offer the best price for equivalent quality and the best quality for equivalent price. We constantly work to reduce costs while maintaining quality standards.

Do you provide installation support?

We provide detailed installation drawings and can send engineers or a complete installation team upon request.

What is your delivery time?

Typical delivery time to nearest Chinese seaport is 40 days after receiving deposit, depending on order quantity.

Request a Quote

Please provide the following information for an accurate quotation:

1. Location (where will it be built?)	_____country, area
2. Size: lengthwidthheight	_____mm_____mm_____mm
3. Wind load (max. wind speed)	_____kn/m2, _____km/h, _____m/s
4. Snow load (max. snow height)	_____kn/m2, _____mm
5. Anti-earthquake requirement	_____level
6. Brick wall needed?	If yes, 1.2m high or 1.5m high
7. Thermal insulation requirements	EPS, fiberglass wool, rockwool, PU sandwich panels or metal sheets
