Prefab Steel Structure Warehouse Building H-Section Beams

Prefab Steel Structure Warehouse Building H-Section Beams
Prefab Steel Structure Warehouse Building H-Section Beams Prefab Steel Structure Warehouse Building H-Section Beams Prefab Steel Structure Warehouse Building H-Section Beams Prefab Steel Structure Warehouse Building H-Section Beams Prefab Steel Structure Warehouse Building H-Section Beams Prefab Steel Structure Warehouse Building H-Section Beams

Large Image :  Prefab Steel Structure Warehouse Building H-Section Beams

Product Details:
Place of Origin: Qingdao China
Brand Name: Ruly
Certification: SGS, ,ISO9001, BV, CE, ASTM
Model Number: RulyS018
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meters
Price: USD29-USD53 Per SQM
Packaging Details: 20GP, 40HC,40OT Shipping container standard package
Delivery Time: 25-30 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 50000 Square Meter Per Month
Contact Now

Prefab Steel Structure Warehouse Building H-Section Beams

Description
Features: Prefab Steel Structure, Large Span, Multi-Floor Corrosion Resistance: Yes
Customization: Available Durability: High
Fire Resistance: Yes Installation: Easy
Maintenance: Low Material: Steel
Size: Customizable Strength: Strong
Type: Fabrication Usage: Construction
Weather Resistance: Yes Weight: Lightweight
Surface Treatment: Painting Or Hot-DIP Galvanized Transport Package: Standard Export Package Or Customers Requirement
Origin: Qingdao China Production Capacity: 50000 Square Meter Per Month
Connection Form: Bolt Connection Type Of Steel For Building Structure: H-Section Steel
Residential Wall Structure: Wall Support Product Name: High Quality Prefab Steel Structure Warehouse Building Cost Prefabricated Workshop Metal Construction For Export
Columns & Beams: H-Section Steel Raw Steel Material: Q235B, Q355b, ASTM A36
Parapet Wall: As Requested Certification: CE, Aisc, SGS, BV, ISO, GB
Residential Wall Structure Building Structure: Steel Cladding Sheet/Sandwich Panel Wall And Roof: Steel Cladding Sheet, Sandwich Panel
Specification: Prefab Steel Buildings HS Code: 9406900090
Highlight:

Multiple Span Steel Beam Column

,

Construction Industry Steel Beam Column

,

Prefab Steel Buildings Steel Beam Column

Multiple Span Steel Beam Column Construction Industry Prefab Steel Buildings
Product Specifications
Attribute Value
Material Steel
Type Fabrication
Size Customizable
Strength Strong
Durability High
Corrosion Resistance Yes
Fire Resistance Yes
Weather Resistance Yes
Weight Lightweight
Surface Treatment Painting or Hot-DIP Galvanized
Connection Form Bolt Connection
Certification CE, Aisc, SGS, BV, ISO, GB
Production Capacity 50000 Square Meter Per Month
Origin Qingdao China
Product Description
Our multiple span prefabricated steel structure buildings are engineered for industrial applications including warehouses, workshops, and cold storage facilities. The steel construction offers superior strength, durability, and design flexibility.
Steel structures provide exceptional advantages for industrial construction:
  • High tensile strength to withstand heavy loads and demanding conditions
  • Fully customizable designs to meet specific operational requirements
  • Rapid construction with prefabricated components reducing labor costs
  • Environmentally sustainable material with recyclable properties
  • Corrosion-resistant treatments available for humid environments
Construction Components

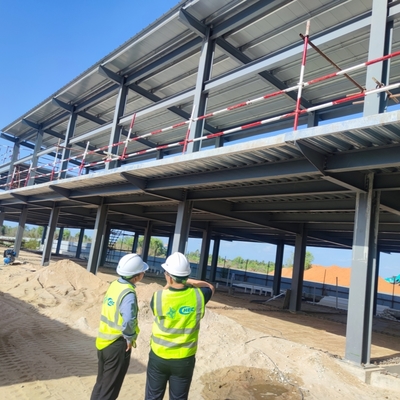

Prefab Steel Structure Warehouse Building H-Section Beams 0
Main steel frame structure

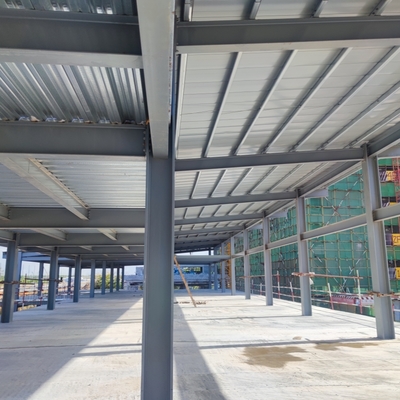

Prefab Steel Structure Warehouse Building H-Section Beams 1
Laying purlin

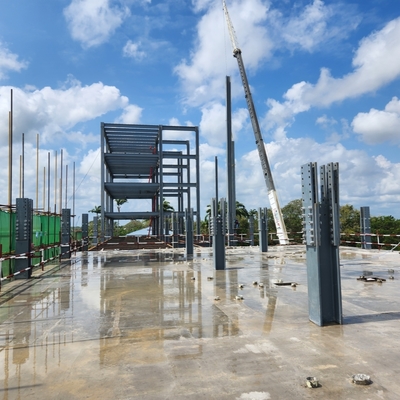

Prefab Steel Structure Warehouse Building H-Section Beams 2
H section steel column

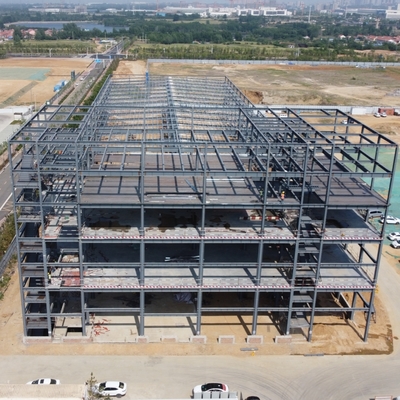

Prefab Steel Structure Warehouse Building H-Section Beams 3
End wall
Manufacturing Process
Prefab Steel Structure Warehouse Building H-Section Beams 4
Welding process in our factory
Prefab Steel Structure Warehouse Building H-Section Beams 5
Packing for shipment
Requesting a Quote
Please provide the following information for an accurate quotation:
1. Location (where will it be built?) Country, area
2. Size: length*width*height mm*mm*mm
3. Wind load (max. wind speed) kn/m2, km/h, m/s
4. Snow load (max. snow height) kn/m2, mm
5. Anti-earthquake requirements Level
6. Brick wall needed or not If yes, 1.2m high or 1.5m high
7. Thermal insulation requirements EPS, fiberglass wool, rockwool, PU sandwich panels
8. Door quantity & size Units, (width)mm*(height)mm
9. Window quantity & size Units, (width)mm*(height)mm
10. Crane needed or not If yes, units, max. lifting weight (tons), max. lifting height (m)
Technical Specifications
Component Specification
Main structure H section steel Q345, alkyd painting, two primary painting, two finish painting
Roof purlin XZ160*60*20*2.5, galvanized
Wall purlin XZ160*60*20*2.5, galvanized
Intensive bolt Grade 10.9
Anchor bolt M24, steel Q235, processing
Wall & Roof System Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Roof drainage system 0.5mm color steel plate gutter with Φ110 PVC rainspout pipes
Installation Support
We provide comprehensive installation support including:
  • Detailed construction drawings prior to installation
  • On-site engineering guidance for proper assembly

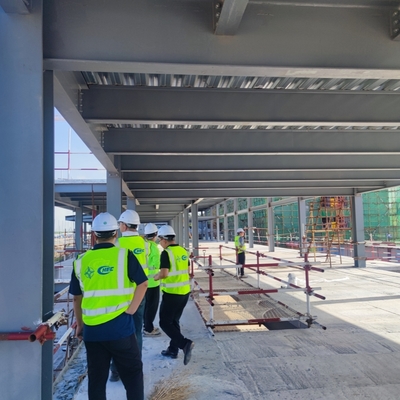

Prefab Steel Structure Warehouse Building H-Section Beams 6
Professional installation of steel structures
Why Choose Our Steel Structures
  • Cost-effective: Professional design reduces construction time and material costs
  • Quality assurance: CE, Aisc, SGS, BV, ISO, GB certified manufacturing
  • Environmental benefits: Specialized cladding materials provide excellent insulation; recyclable materials
  • Production capacity: 50,000 square meters per month production capability
  • Custom solutions: Tailored designs to meet specific project requirements
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a manufacturer with our own factory in Qingdao, China. Customers are welcome to visit our production facilities.
Is your price competitive?
We offer the best price/quality ratio in the market, with strict quality control throughout production.
Do you provide installation support?
We provide detailed installation drawings and can send engineers or a full installation team upon request.
What is your delivery time?
Typical delivery time to nearest Chinese seaport is 40 days after receiving deposit, depending on order quantity.
