Prefab Steel Structure Building Q235 Q355 Large Span Warehouse Workshop

Name: Prefab Steel Structure Building Q235 Q355 Large Span Warehouse Workshop
Brand: Qingdao Ruly Steel Engineering Co.,Ltd
SKU: RulyX040
Price: 35.00 USD
Availability: InStock

All Products

Steel Structure Warehouse
(285)

Steel Structure Workshop
(173)

Steel Structure Construction
(68)

Steel Structure Fabrication
(41)

PEB Steel Buildings
(24)

Prefabricated Steel Frame Buildings
(23)

Structural Steel Beams
(16)

Steel Structure Hangar
(8)

Industrial Steel Buildings
(116)

Architectural Structural Steel
(12)

Prefab Container Homes
(12)

Best Products

Industrial Steel Frame Structure Building Fabrication Construction Heavy Duty

Prefabricated Steel Industrial Buildings / Industrial Metal Buildings Construction

Certification

Customer Reviews

To be honest, i am not so familiar with steel structure at beginning, but they give me a perfect proposal to help me complete my project, good job, Ruly steel

—— Mike Guioguio

The delivery time is quick, and very important: the products always sent match the order. I trust them because i have never been disappointed with them.

—— Mae Cena

This mutual cooperation last for about 4 years,and must admit the service they provide is above expected.

—— Terry Shepley

I'm Online Chat Now

Prefab Steel Structure Building Q235 Q355 Large Span Warehouse Workshop

Large Image : Prefab Steel Structure Building Q235 Q355 Large Span Warehouse Workshop

Product Details:

Place of Origin:	Qingdao,China
Brand Name:	Ruly Steel
Certification:	CE,AISC,SGS, BV, ISO,GB
Model Number:	RulyX040

Payment & Shipping Terms:

Minimum Order Quantity:	200 square meters
Price:	USD25-USD45 Per Square Meter
Packaging Details:	40HQ/Open top container
Delivery Time:	20 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	20,000 square meters or 1,500 tons per month

Contact Now

Prefab Steel Structure Building Q235 Q355 Large Span Warehouse Workshop

Description

Features:	Prefab Steel Structure, Large Span, Multi-Floor	Raw Steel Material:	Q235B, Q355B, ASTM A36
Application:	Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part	Surface Treatment:	Painting Or Hot-DIP Galvanized
Service Life:	50 Years	Wall And Roof:	Steel Cladding Sheet,Sandwich Panel
Columns & Beams:	H-Section Steel	Shot Blasting Level:	SA 2.5
Certification:	CE, AISC, SGS, BV, ISO, GB	Installation:	Engineer Guidance On Site
Drawing:	CAD, TEKLA, 3D Model, PKPM, BIM	HS Code:	9406900090
Transport Package:	Standard Export Package Or Customer′s Requirement	Production Capacity:	30000ton/Year
Connection Form:	Bolt Connection	Parapet Wall:	As Requested
Highlight:	Prefabricated Metal Building , Prefabricated Steel Structure Building , Large Span Metal Building

Large Span Prefabricated H Beam Steel Structure Building

Product Specifications

Attribute	Value
Raw Steel Material	Q235B, Q355B, ASTM A36
Application	Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part
Surface Treatment	Painting or Hot-DIP Galvanized
Service Life	50 Years
Wall and Roof	Steel cladding sheet, Sandwich Panel
Columns & Beams	H-Section Steel
Shot Blasting Level	SA 2.5
Certification	CE, AISC, SGS, BV, ISO, GB
Installation	Engineer Guidance on Site
Drawing	CAD, TEKLA, 3D Model, PKPM, BIM

Product Overview

Our prefabricated steel structure buildings feature high fire resistance and strong corrosion resistance. The primary load-bearing components consist of steel columns, beams, and roof trusses, connected through welding, bolts, or rivets.

Material Specifications

Component	Specification
Main Steel Frame (Column & Beam)	Q235, Q355 Welded H Section Steel
Secondary Frame	Q235 C and Z purlin, Angle Steel, Circular Steel Pipe
Roof Panel	EPS/Fiber Glass/Rock Wool/PU Sandwich Panel or Steel Sheet
Wall Panel	Sandwich Panel / Corrugated Steel Sheet
Finishing Options	Wide range of colors and textures available

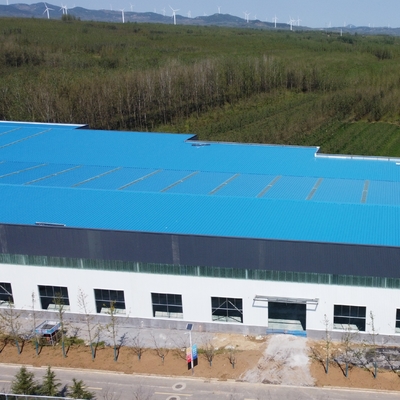

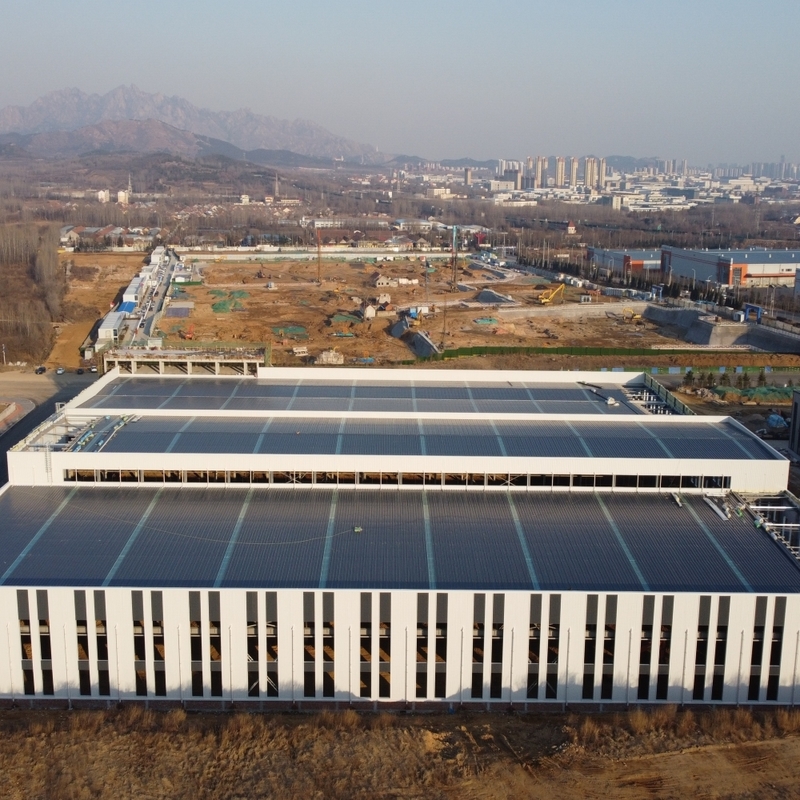

Project Showcase

Project Usage: High-End Intelligent Hydraulic Machine Tool Equipment
Size: 9,702 Sqm
Steel Structure Weight: 630Ton

Project Usage: Logistics Steel Warehouse For High-Speed Rail Station
Size: 24,570 Sqm
Steel Structure Weight: 985Ton

Quality Control

Raw material thickness tolerance <0.25mm
100% dimension testing with tolerance <1mm
20% sample welding line ultrasonic testing
Shot blasting grade Sa. 2.5 with roughness >75um
Paint primer applied within 5 hours after shot blasting
Dry Film Thickness (DFT) >75UM

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a manufacturer with our own factory. Clients are welcome to visit our production facilities at any time.

Do you provide installation services?

We provide detailed installation drawings and can send engineers or a complete installation team upon request.

What is your typical delivery time?

Delivery time depends on order quantities, typically 40 days to nearest Chinese seaport after receiving deposit.

Packaging & Shipping

All components are packed in standard export packages suitable for ocean transportation, typically loaded into 40'HQ containers. Our skilled workers use cranes and forklifts to prevent damage during loading.
