Product Details:
|
Application: | Prefab Steel Industrial Building | Type: | Industrial Steel Buildings |
---|---|---|---|
Surface Treatment: | Painting Or Hot-dip Galvanize | Raw Steel Material: | Q235B, Q355B |
Wall And Roof: | Glass Wool Panel | Working Scope: | Design,Fabrication, Installation |
Highlight: | Prefabricated Structural Steel Building,Q235B Structural Steel Building,Galvanized Prefab Steel Industrial Warehouse |
Attribute | Value |
---|---|
Application | Prefab Steel Industrial Building |
Type | Industrial Steel Buildings |
Surface treatment | Painting or Hot-dip Galvanize |
Raw steel material | Q235B, Q355B |
Wall and Roof | Glass Wool Panel |
Working scope | Design, Fabrication, Installation |

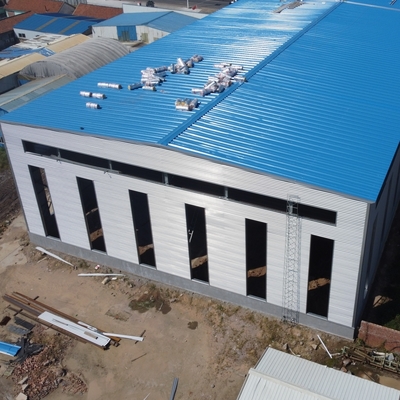

Our low-cost prefabricated structural steel buildings offer exceptional value for industrial warehouses and business facilities. These steel structures combine durability, safety, and cost-efficiency with superior performance characteristics.

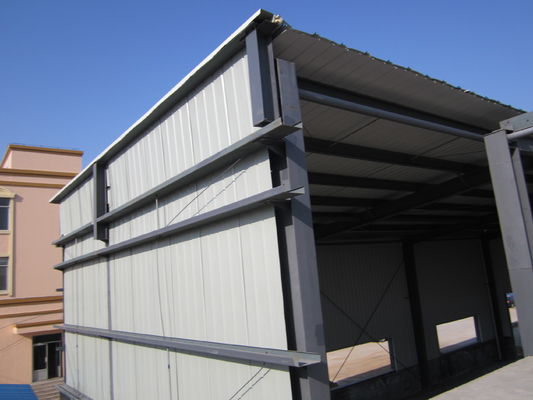

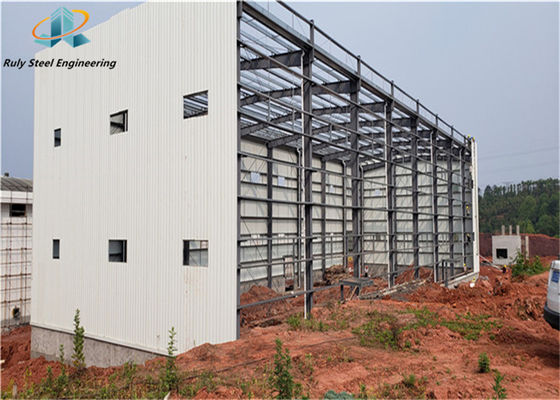

Main structure | H section steel Q355, alkyd painting (two primary, two finish coats) |
Roof purlin | XZ160*60*20*2.5, galvanized |
Wall purlin | XZ160*60*20*2.5, galvanized |
Intensive bolt | Grade 10.9 |
Turn buckle bolt | M20+2, steel Q235 |
Anchor bolt | M24, steel Q235 |
Cross brace | Φ20 round steel bar Q235, alkyd painting |
Angle brace | L50*5 angle steel Q235, alkyd painting |
Column bracing | Φ25 round steel bar Q235, alkyd painting |
Tie bar | Φ127*3 steel pipe Q235, alkyd painting |
Roof panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
Wall panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
Edge cover | 0.5mm color plate, angle Alu. |
Unpowered ventilator | Diameter Φ600, stainless steel |
Sky lighting band | 1.2mm FRP, double layer |
1 | Location (where will be built?) | _____country, area |
2 | Size: length*width*height | _____mm*_____mm*_____mm |
3 | Wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
4 | Snow load (max. snow height) | _____kn/m2, _____mm |
5 | Anti-earthquake | _____level |
6 | Brickwall needed or not | If yes, 1.2m high or 1.5m high |
7 | Thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested |
8 | Door quantity & size | _____units, _____(width)mm*_____(height)mm |
9 | Window quantity & size | _____units, _____(width)mm*_____(height)mm |
10 | Crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
