Prefab Steel Industrial Building Frame Q235B Q355B Galvanized

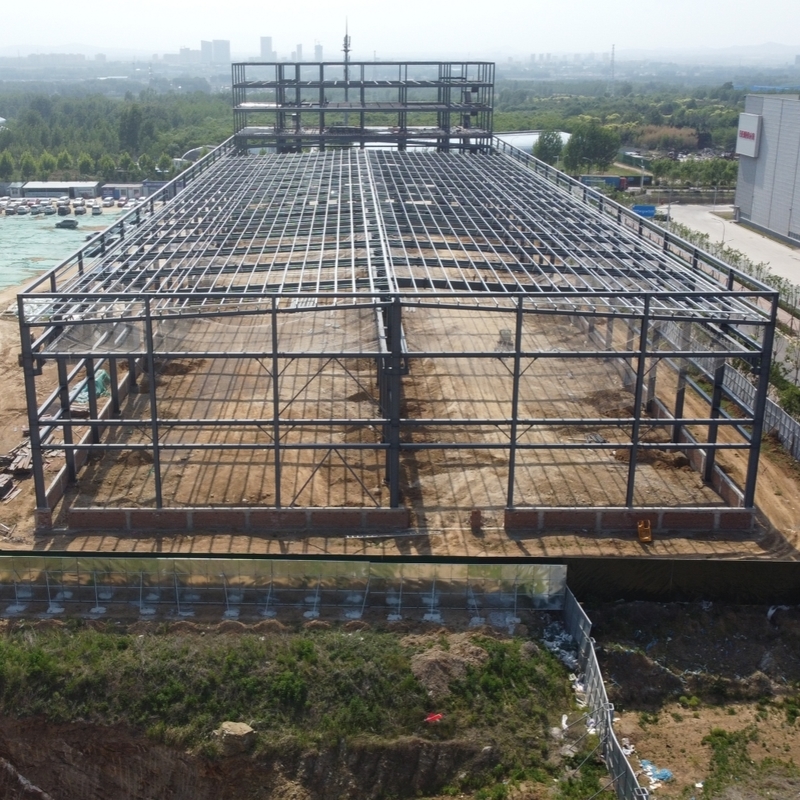

Large Image : Prefab Steel Industrial Building Frame Q235B Q355B Galvanized

Product Details:

Place of Origin:	China
Brand Name:	Ruly Steel
Certification:	CE,AISC,SGS, BV, ISO,GB
Model Number:	RULYZ016

Payment & Shipping Terms:

Minimum Order Quantity:	500 Square meters
Price:	USD25-USD95 Per Square meter
Packaging Details:	As request
Delivery Time:	30 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	2000 Ton Per Month

Contact Now

Prefab Steel Industrial Building Frame Q235B Q355B Galvanized

Description

Features:	Steel Frame Buildings Construction	Application:	Prefab Steel Industrial Building
Type:	Industrial Steel Buildings	Raw Steel Material:	Q235B, Q355B
Surface Treatment:	Painting Or Hot-dip Galvanize	Service Life:	50 Years
Wall And Roof:	Glass Wool Panel
Highlight:	Q235B Residential Steel Structure Building , SGS Prefabricated Steel Structure Building , Prefab Galvanized Steel Buildings

Prefabricated Metal Structure Frame Residential Steel Building

Product Specifications

Attribute	Value
Application	Prefab Steel Industrial Building
Features	Steel Frame Buildings Construction
Type	Industrial Steel Buildings
Raw steel material	Q235B, Q355B
Surface treatment	Painting or Hot-dip Galvanize
Service life	50 Years
Wall and Roof	Glass Wool Panel

Key Advantages

High strength steel allows for flexible architectural designs and spacious layouts
Superior space utilization with smaller structural sections maximizing usable area
Lightweight construction with excellent seismic performance
Built-in thermal insulation, waterproofing, and soundproofing properties
Easy transportation and rapid assembly with shorter construction timelines
Cost-effective solution with competitive pricing

Project Specifications

Parameter	Value
Structure Type	Portal frame, single ridge, multi spans
Dimensions (L×W)	240m × 120m
Eave Height	19m
Roof Slope	10%
Gable Wall Column Spacing	7.5m
Roof/Wall Material	75mm thick Rock wool sandwich panel
Door Type	Sliding door
Window Type	Ribbon Skylight

Technical Components

Main Steel Frame: H section steel Q355 with alkyd painting (two primary, two finish coats)

Purlin System: XZ160*60*20*2.5 galvanized roof and wall purlins

Fasteners: Grade 10.9 intensive bolts, M20/M12 galvanized bolts, M24 anchor bolts

Bracing System: Φ20-Φ32 round steel bars and L50*5 angle steel with alkyd painting

Wall & Roof: Corrugated steel or sandwich panels (EPS/fiber glass/rock wool/PU options)

Ventilation: Φ600 stainless steel unpowered ventilator

Drainage: 0.5mm color steel gutter with Φ110 PVC rainspout pipes

Production Facility

Design Example

Installation Support

We provide detailed construction drawings and offer on-site training at our factory if needed, including sample assembly demonstrations.

Packaging & Shipping

All components are securely packed for ocean transportation in 40'HQ containers, with professional loading using cranes and forklifts to prevent damage.

Custom Quotation Requirements

To provide an accurate quote, we require the following information:

Item	Details Required
1	Project location (country/region)
2	Building dimensions (L×W×H in mm)
3	Maximum wind load (kn/m², km/h, or m/s)
4	Maximum snow load (kn/m² or mm)
5	Earthquake resistance level
6	Brick wall requirements (height if needed)
7	Thermal insulation specifications
8-9	Door/window quantities and sizes
10	Crane requirements (capacity/height if needed)
