PEB Steel Building for Logistics Warehouse with 50-Year Lifespan

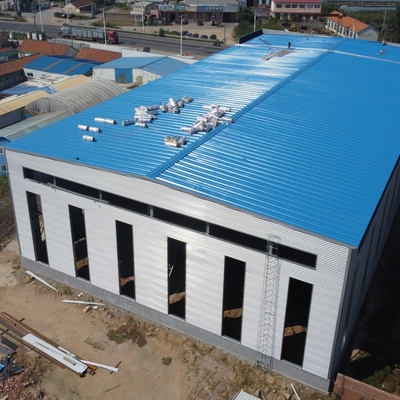

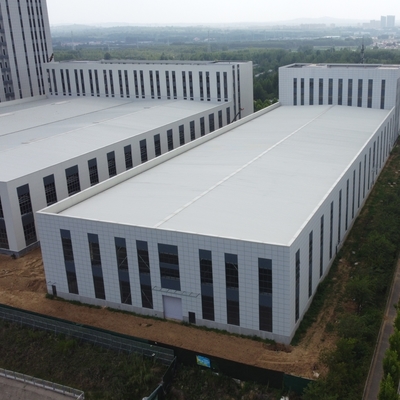

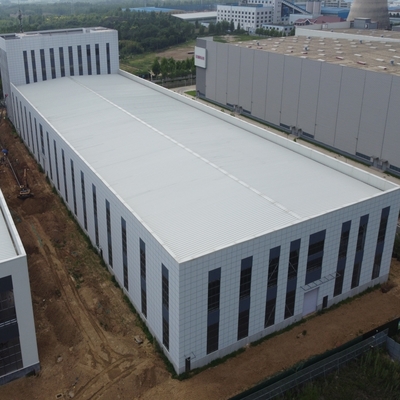

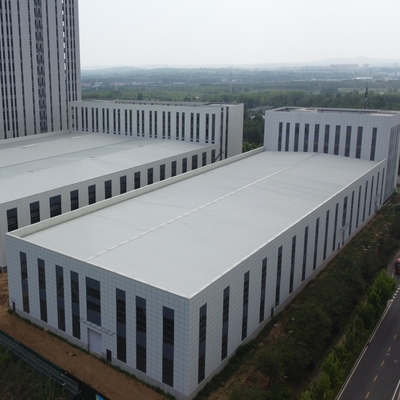

This Logistics Warehouse PEB Steel Building covers 13,200 square meters with dimensions of 220m (length) × 60m (width) and a cornice height of 15.0 meters. The warehouse features two 30-meter spans with 9-meter column spacing.

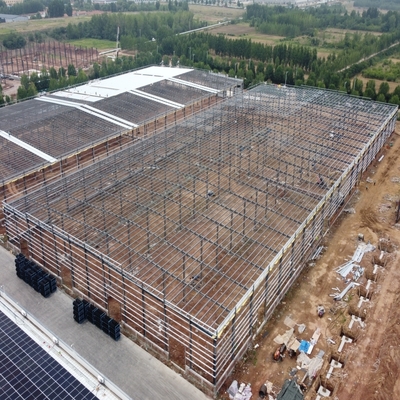

Main structure utilizes portal frame construction with H-shaped solid steel columns and beams. The roof system includes cold-formed thin-walled steel purlins and 0.6mm painted galvanized steel roof panels with 100mm centrifugal glass rock wool insulation. Walls feature 0.53mm thick hot galvanized sheets on cold-formed steel wall beams.

• Materials: Carbon structural steel (Q235B, Q345B or custom grades)
• Production Lead Time: Typically 45 days after deposit
• Quality Assurance: Factory certification with optional third-party inspection
• Structural Components: H-beams (4-15m length), C/Z purlins (C120-C320, Z100-Z200)
• Surface Finishes: Two-layer rust-proof paint or hot-dip galvanizing
• Roof & Wall Options: PU sandwich panels, rockwool panels, or corrugated steel sheets
• Accessories: Skylights, ventilators, gutters, flashing, and trim components

We provide detailed construction drawings and can dispatch engineers to guide installation or complete the entire construction process with our skilled team.

All components are packed for ocean transport in 40'HQ containers, with careful loading by experienced workers to prevent damage during transit.
