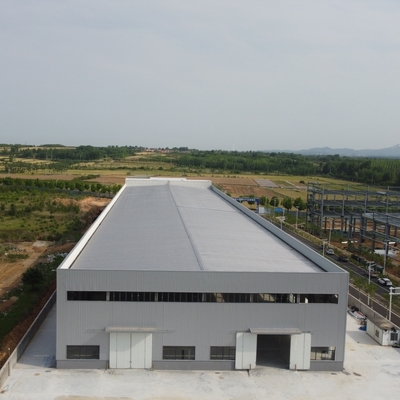

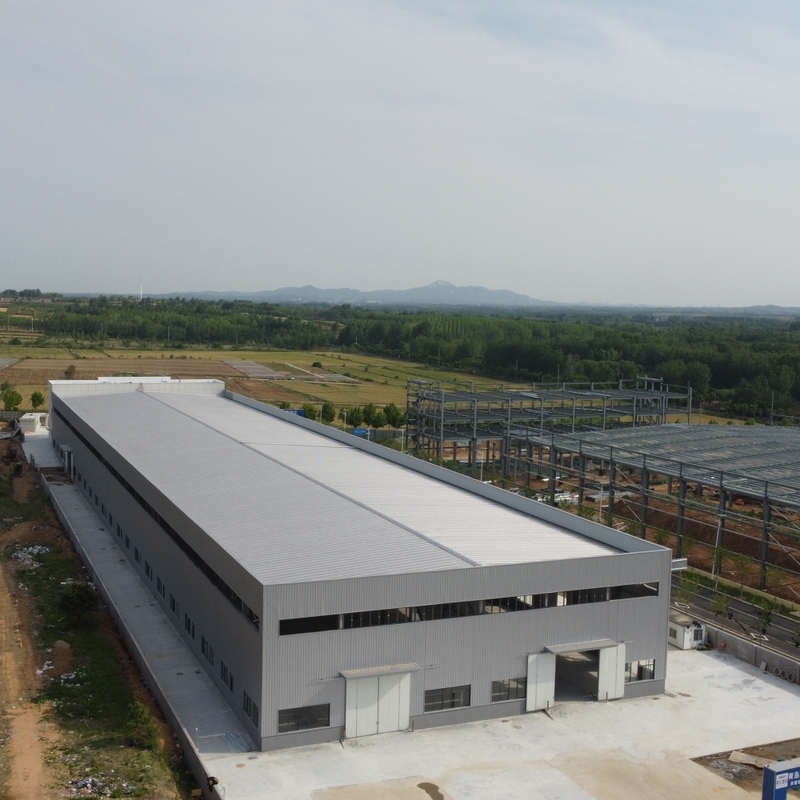

GB Standard Low Cost Metal Buildings Workshop Steel Frame Prefabricated Steel Structure
Product Attributes
| Attribute |
Value |
| Raw Steel Material |
Q235B, Q355B, ASTM A36 |
| Application |
Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part |
| Surface Treatment |
Painting or Hot-DIP Galvanized |
| Service Life |
50 Years |
| Wall and Roof |
Steel cladding sheet, Sandwich Panel |
| Columns & Beams |
H-Section Steel |
| Shot Blasting Level |
SA 2.5 |
| Certification |
CE, AISC, SGS, BV, ISO, GB |
| Installation |
Engineer Guidance on Site |
| Drawing |
CAD, TEKLA, 3D Model, PKPM, BIM |
| HS Code |
9406900090 |
| Transport Package |
Standard Export Package or Customer′s Requirement |
| Production Capacity |
30000ton/Year |
| Features |
Prefab Steel Structure, Large Span, Multi-Floor |
| Connection Form |
Bolt Connection |
| Parapet Wall |
As Requested |
Product Description
Our steel structure buildings feature high fire resistance and strong corrosion resistance. The main load-bearing components are made of steel, including steel columns, beams, and roof trusses, connected by welding, bolts, or rivets.
The roof and walls can be constructed with composite panels or veneer. Galvanized sheet metal prevents rust and corrosion, while self-tapping screws ensure tight connections between plates to prevent leakage. Composite panels with PU, EPS, fiberglass, or rock wool insulation provide excellent thermal and fire-retardant properties. Brick walls can also be used for steel structure maintenance.
Applications include large-scale workshops, warehouses, supermarkets, entertainment centers, and modular steel structure garages.
Material Specifications
| Main Steel Frame |
Column: Q235, Q355 Welded H Section Steel
Beam: Q235, Q355 Welded H Section Steel |
| Secondary Frame |
Purlin: Q235 C and Z purlin
Knee bracing: Q235 Angle Steel
Tie Bar: Q235 Circular Steel Pipe
Bracing: Q235 Round Bar
Column and Horizontal Bracing: Q235 Angle Steel, Round Bar or Steel Pipe |
| Maintenance System |
Roof Panel: EPS Sandwich Panel / Fiber Glass Sandwich Panel / Rock Wool Sandwich Panel / PU Sandwich Panel / Steel Sheet
Wall Panel: Sandwich Panel / Corrugated Steel Sheet |
| Accessories |
Window: Aluminium Alloy Window / PVC Window
Door: Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Downspout: PVC |
| Structure Usage |
Up to 50 years |
| Finishing Options |
Vast array of colors and textures available |
| Paint Options |
Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized |
Project Showcase
Project Usage: High-End Intelligent Hydraulic Machine Tool Equipment
Size of the plant: Total Area 9,702 Sqm
Steel Structure Weight: 630Ton
Project Usage: Logistics Steel Warehouse For High-Speed Rail Station
Size of the plant: Total Area 24,570 Sqm
Steel Structure Weight: 985Ton
Project Usage: Textile Manufacturing Machine Tool Equipment
Size of the plant: Total Area 6,615 Sqm
Steel Structure Weight: 750Ton
Our Company
Qingdao Ruly Steel Engineering Co., Ltd is a professional steel structure fabrication and engineering company located in Qingdao, China. We integrate steel structure design, research and development, manufacturing and installation for various projects including prefabricated steel workshops, warehouses, logistics parks, high-rise buildings, exhibition centers, stadiums, and industrial facilities.
Our 35,000 square meter facility includes a 20,000 square meter processing plant with over 100 employees and monthly production capacity exceeding 1500 tons. We manufacture various steel components including light/heavy H steel, box steel, large diameter pipes, and structural fittings.
We maintain ISO 9001, ISO 14001, and GB/T 28001 certifications, along with ASTM and SGS certifications, ensuring quality and compliance with international standards.
Certifications
Our Services
- Structural steel fabrication, painting, galvanizing, and pre-assembly
- Design, fabrication and installation of prefabricated steel structures
- Detailed fabrication drawings based on your architectural plans
- Technical advice for usage, maintenance, and improvements
Quality Control
Raw Material Quality Control: Thickness tolerance <0.25mm, yield and tension strength testing, third-party inspection certificates, traceable mill certificates.
Fabrication Quality Control: 100% dimensional testing (<1mm tolerance), 20% ultrasonic and magnetic powder welding tests, third-party inspection assistance.
Surface Treatment: SA 2.5 shot blasting, primer application within 5 hours, holiday-free coatings, dry film thickness >75μm.
Frequently Asked Questions
Q: Are you a manufacturer or trading company?
A: We are a manufacturer with our own factory. You're welcome to visit our facility to see our production process and quality control measures.
Q: How competitive are your prices?
A: We offer the best price for equivalent quality and the best quality for equivalent prices, working to reduce your costs while ensuring product excellence.
Q: Can you provide installation support?
A: We provide detailed installation drawings and can send engineers or a complete installation team upon request.
Q: Do you accept inspection during production?
A: Yes, we welcome inspectors at any stage of production, including container loading.
Q: Do you offer design services?
A: Yes, we provide complete design solutions using AutoCAD, PKPM, Tekla Structures, and other professional software for complex industrial buildings.
Q: What is your typical delivery time?
A: Delivery typically takes 40 days after deposit receipt, depending on order quantity.
Q: How can I get a quotation?
A: Contact us via email, phone, or WhatsApp anytime - we respond within 8 hours.
Packing and Transportation
All structural components, panels, bolts, and accessories are packed in standard export packages suitable for ocean transportation, typically loaded into 40'HQ containers. Our skilled workers use cranes and forklifts to prevent damage during loading.
Design Capabilities
For each project, we provide preliminary layout drawings, 3D Tekla models, and installation drawings to ensure project success.
Why Choose Us?
- Professional design team capable of custom solutions or quantity calculations
- Skilled fabrication team with advanced equipment and project-specific schedules
- One-stop service with integrated project proposals
- Dedicated QC team ensuring product and service quality
- Comprehensive after-sales support for maintenance and technical questions
Our Production Line
