Fireproof Prefab Steel Structure Workshop with 50-Year Lifespan

Large Image : Fireproof Prefab Steel Structure Workshop with 50-Year Lifespan

Product Details:

Place of Origin:	Qingdao,China
Brand Name:	Ruly Steel
Certification:	CE,AISC,SGS, BV, ISO,GB
Model Number:	RulyX095

Payment & Shipping Terms:

Minimum Order Quantity:	200 square meters
Price:	USD25-USD45 Per Square Meter
Packaging Details:	40HQ/Open top container
Delivery Time:	20 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	20,000 square meters or 1,500 tons per month

Contact Now

Fireproof Prefab Steel Structure Workshop with 50-Year Lifespan

Description

Features:	Prefab Steel Structure, Large Span, Multi-Floor	Raw Steel Material:	Q235B, Q355B, ASTM A36
Application:	Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part	Surface Treatment:	Painting Or Hot-DIP Galvanized
Service Life:	50 Years	Wall And Roof:	Steel Cladding Sheet,Sandwich Panel
Columns & Beams:	H-Section Steel	Shot Blasting Level:	SA 2.5
Certification:	CE, AISC, SGS, BV, ISO, GB	Installation:	Engineer Guidance On Site
Drawing:	CAD, TEKLA, 3D Model, PKPM, BIM	HS Code:	9406900090
Transport Package:	Standard Export Package Or Customer′s Requirement	Production Capacity:	30000ton/Year
Connection Form:	Bolt Connection	Parapet Wall:	As Requested
Highlight:	Fire Proofing Steel Structure Pre-Engineerd Workshop , Pre Engineerd Workshop Steel Structure , Steel Structure Pre Engineerd Workshop

Fire Proofing Low Cost Steel Structure Pre-Engineered Workshop

Product Specifications

Attribute	Value
Raw Steel Material	Q235B, Q355B, ASTM A36
Application	Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part
Surface Treatment	Painting or Hot-DIP Galvanized
Service Life	50 Years
Wall and Roof	Steel cladding sheet, Sandwich Panel
Columns & Beams	H-Section Steel
Shot Blasting Level	SA 2.5
Certification	CE, AISC, SGS, BV, ISO, GB
Installation	Engineer Guidance on Site
Drawing	CAD, TEKLA, 3D Model, PKPM, BIM
HS Code	9406900090
Transport Package	Standard Export Package or Customer′s Requirement
Production Capacity	30000ton/Year
Features	Prefab Steel Structure, Large Span, Multi-Floor
Connection Form	Bolt Connection
Parapet Wall	As Requested

Product Features

The weight capacity of steel structure is lighter than traditional building materials.
Steel structure has high strength and good toughness, with uniform material properties that provide excellent seismic performance.
Factory prefabrication and on-site installation enables faster construction speed and lower cost compared to reinforced concrete structures.
Environmentally friendly construction with recyclable materials that reduce resource waste.

Material Specifications

Component	Material	Specifications
Steel Frame	H section steel	Q235/Q355 steel 8mm/10mm
Welding	Automatic submerged arc welding
Rust removal	Sand blasting
Surface finish	Alkyd paint or galvanized
Intensive bolt	M20, Grade 10.9
Supporting System	Angle brace	L50x4, Steel Q235, processed and painted
Horizontal brace	Φ20, Steel Q235, processed and painted
Column brace	Φ20, Steel Q235, processed and painted
Tie rod	Φ89*3, Steel Q235, processed and painted
Ordinary bolt	M12 Galvanized bolt
Roof Purlin	C160602.5, Steel Q235, galvanized and painted
Roof panel	Sandwich panel or corrugated steel sheet

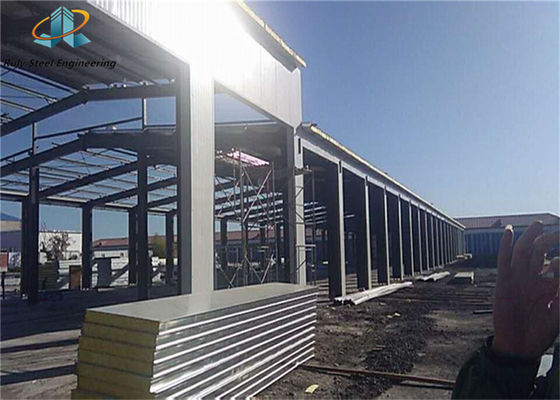

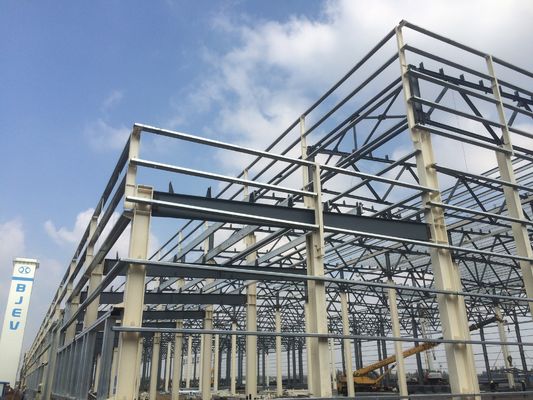

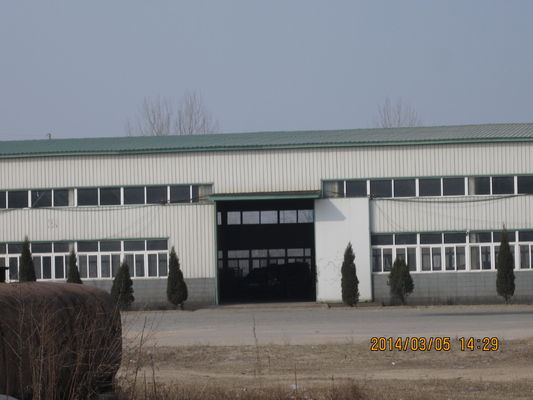

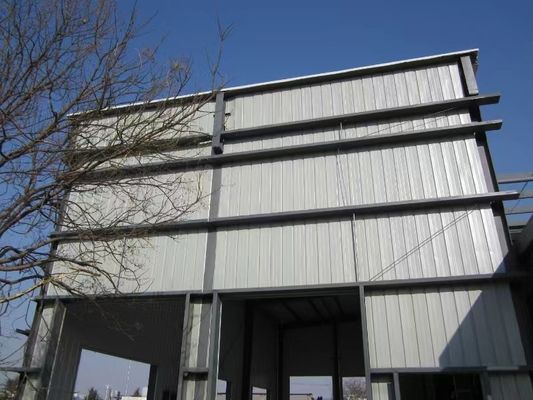

Project Showcase

Project Usage: High-End Intelligent Hydraulic Machine Tool Equipment

Size: Total Area 9,702 Sqm

Steel Structure Weight: 630Ton

Project Usage: Logistics Steel Warehouse For High-Speed Rail Station

Size: Total Area 24,570 Sqm

Steel Structure Weight: 985Ton

Project Usage: Textile Manufacturing Machine Tool Equipment

Size: Total Area 6,615 Sqm

Steel Structure Weight: 750Ton

Quality Control

Raw material quality control: Thickness tolerance <0.25mm, Yield and tension strength testing in-house, Third party inspection certificate
Structural steel fabrication quality control: 100% testing dimension tolerance <1mm, 20% sample welding line ultrasonic testing, 20% magnetic powder testing
Shot blasting and painting quality control: Shot blasting grade Sa. 2.5, Paint primer within 5 hours after shot blasting, Dry Film Thickness (DFT) >75UM
Pre-assembly testing the connection details

Frequently Asked Questions

Q: You are manufacture factory or trading company?

A: We are manufacture factory. And you are welcomed to visit us at any time.

Q: Is your price competitive compared with other companies?

A: Our business objectives are to give the best price with same quality and best quality with the same price.

Q: Can you send engineers or whole team to install my project?

A: We will give detailed installation drawings for free. We can send engineers as installation director or a team upon request.

How to Get a Quotation

Question	Your Answer
Location (where will it be built?)	_____country, area
Size: lengthwidthheight	_____mm_____mm_____mm
wind load (max. wind speed)	_____kn/m2, _____km/h, _____m/s
snow load (max. snow height)	_____kn/m2, _____mm
