Custom Steel Structure Workshop Prefab Building Q235B Q355B

Large Image : Custom Steel Structure Workshop Prefab Building Q235B Q355B

Product Details:

Place of Origin:	Qingdao,China
Brand Name:	Ruly Steel
Certification:	CE,AISC,SGS, BV, ISO,GB
Model Number:	RulyX026

Payment & Shipping Terms:

Minimum Order Quantity:	200 square meters
Price:	USD25-USD45 Per Square Meter
Packaging Details:	40HQ/Open top container
Delivery Time:	20 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	20,000 square meters or 1,500 tons per month

Contact Now

Custom Steel Structure Workshop Prefab Building Q235B Q355B

Description

Features:	Prefab Steel Structure, Large Span, Multi-Floor	Raw Steel Material:	Q235B, Q355B, ASTM A36
Application:	Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part	Surface Treatment:	Painting Or Hot-DIP Galvanized
Service Life:	50 Years	Wall And Roof:	Steel Cladding Sheet,Sandwich Panel
Columns & Beams:	H-Section Steel	Shot Blasting Level:	SA 2.5
Certification:	CE, AISC, SGS, BV, ISO, GB	Installation:	Engineer Guidance On Site
Drawing:	CAD, TEKLA, 3D Model, PKPM, BIM	HS Code:	9406900090
Transport Package:	Standard Export Package Or Customer′s Requirement	Production Capacity:	30000ton/Year
Connection Form:	Bolt Connection	Parapet Wall:	As Requested
Highlight:	customized Steel Structure Pre Made Workshop , Steel Structure Pre Made Factory Workshop

Customized Steel Structure Pre-Made Factory Workshop

Product Specifications

Raw Steel Material	Q235B, Q355B, ASTM A36
Application	Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part
Surface Treatment	Painting or Hot-DIP Galvanized
Service Life	50 Years
Wall and Roof	Steel cladding sheet, Sandwich Panel
Columns & Beams	H-Section Steel
Shot Blasting Level	SA 2.5
Certification	CE, AISC, SGS, BV, ISO, GB
Installation	Engineer Guidance on Site
Drawing	CAD, TEKLA, 3D Model, PKPM, BIM
Production Capacity	30000ton/Year

Key Features

Prefabricated steel structure with large span capability
Multi-floor design options available
Bolt connection system for easy assembly
Customizable parapet walls as requested
Standard export packaging or customized solutions

Modern Steel Structure Solutions

Today's industrial clients demand steel structures that combine:

Exceptional strength and durability to withstand extreme conditions
Modern aesthetics with flexible design options
Environmentally sustainable materials and construction
Cost-effective solutions with rapid construction timelines

Material Specifications

Main Steel Frame	Column: Q235, Q355 Welded H Section Steel Beam: Q235, Q355 Welded H Section Steel
Secondary Frame	Purlin: Q235 C and Z purlin Knee bracing: Q235 Angle Steel Tie Bar: Q235 Circular Steel Pipe
Maintenance System	Roof Panel: Various sandwich panel options or steel sheet Wall Panel: Sandwich Panel or Corrugated Steel Sheet
Finishing Options	Wide color selection with paint or galvanized coating

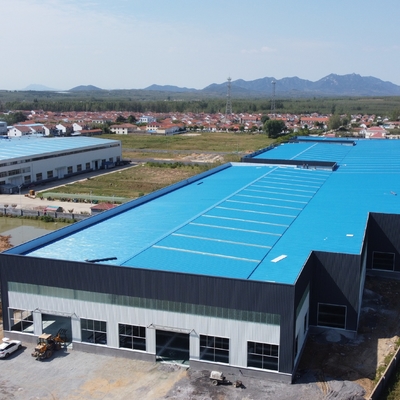

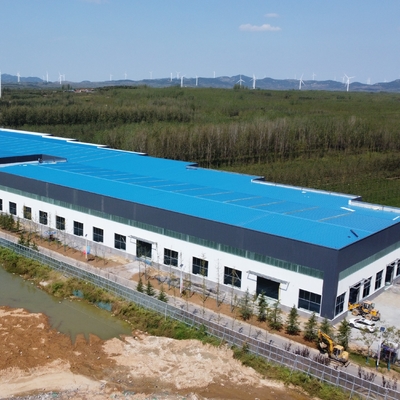

Project Showcase

Project Usage: High-End Intelligent Hydraulic Machine Tool Equipment

Size: Total Area 9,702 Sqm

Steel Structure Weight: 630Ton

Project Usage: Logistics Steel Warehouse For High-Speed Rail Station

Size: Total Area 24,570 Sqm

Steel Structure Weight: 985Ton

Our Company

Qingdao Ruly Steel Engineering Co., Ltd is a professional steel structure fabrication and engineering company located in Qingdao, China. We specialize in:

Integrated design, R&D, manufacturing and installation
35,000 square meter processing plant with 20,000 sqm workshop
Monthly production capacity exceeding 1500 tons
ISO 9001, ISO 14001, and GB/T 28001 certified
ASTM and SGS product certifications

Our Certifications

Our Services

Complete steel fabrication including painting and galvanizing
Design, fabrication and installation of prefabricated structures
Detailed fabrication drawings based on your architectural plans
Technical support for usage and maintenance

Quality Control

Material Control: Thickness tolerance <0.25mm with third-party inspection
Fabrication: <1mm dimensional tolerance with welding quality testing
Surface Treatment: SA 2.5 shot blasting with DFT >75UM
Assembly: Pre-assembly testing of all connection details

Packaging & Shipping

All components are packed for ocean transportation in 40'HQ containers using professional loading equipment to prevent damage.

Component Examples

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a manufacturer with our own factory. You're welcome to visit our facilities to see our production capabilities and quality control processes.

How competitive are your prices?

We offer the best value - either the best price for equivalent quality or superior quality at comparable prices. We continuously work to optimize costs without compromising quality.

Do you provide installation services?

We provide detailed installation drawings and can send engineers or a complete installation team upon request.

What is your typical delivery time?

Standard delivery to Chinese ports is approximately 40 days after deposit receipt, varying with order quantity.

Why Choose Us?

Professional design team with advanced CAD and BIM capabilities
Skilled fabrication team using modern equipment
Complete project solutions from design to installation
Rigorous quality control at every production stage
Comprehensive after-sales support and maintenance advice
