Custom H-Section Steel Portal Frame Prefab Building Structure

Large Image : Custom H-Section Steel Portal Frame Prefab Building Structure

Product Details:

Place of Origin:	Qingdao,China
Brand Name:	Ruly Steel
Certification:	CE,AISC,SGS, BV, ISO,GB
Model Number:	RulyX035

Payment & Shipping Terms:

Minimum Order Quantity:	200 square meters
Price:	USD25-USD45 Per Square Meter
Packaging Details:	40HQ/Open top container
Delivery Time:	20 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	20,000 square meters or 1,500 tons per month

Contact Now

Custom H-Section Steel Portal Frame Prefab Building Structure

Description

Features:	Prefab Steel Structure, Large Span, Multi-Floor	Raw Steel Material:	Q235B, Q355B, ASTM A36
Application:	Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part	Surface Treatment:	Painting Or Hot-DIP Galvanized
Service Life:	50 Years	Wall And Roof:	Steel Cladding Sheet,Sandwich Panel
Columns & Beams:	H-Section Steel	Shot Blasting Level:	SA 2.5
Certification:	CE, AISC, SGS, BV, ISO, GB	Installation:	Engineer Guidance On Site
Drawing:	CAD, TEKLA, 3D Model, PKPM, BIM	HS Code:	9406900090
Transport Package:	Standard Export Package Or Customer′s Requirement	Production Capacity:	30000ton/Year
Connection Form:	Bolt Connection	Parapet Wall:	As Requested
Highlight:	Galvanized Portal Frame Prefab Steel Structure , Customized H Section Prefab Steel Structure , Painted Portal Frame Prefab Steel Structure

Light Steel Stable Long Lifetime Customized H Section Steel Painted/Galvanized Portal Frame Prefab Steel Structure

Product Specifications

Attribute	Value
Raw Steel Material	Q235B, Q355B, ASTM A36
Application	Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part
Surface Treatment	Painting or Hot-DIP Galvanized
Service Life	50 Years
Wall and Roof	Steel cladding sheet, Sandwich Panel
Columns & Beams	H-Section Steel
Shot Blasting Level	SA 2.5
Certification	CE, AISC, SGS, BV, ISO, GB
Installation	Engineer Guidance on Site
Drawing	CAD, TEKLA, 3D Model, PKPM, BIM
HS Code	9406900090
Transport Package	Standard Export Package or Customer's Requirement
Production Capacity	30000ton/Year
Features	Prefab Steel Structure, Large Span, Multi-Floor
Connection Form	Bolt Connection
Parapet Wall	As Requested

Product Description

Our steel structure buildings feature high fire resistance and strong corrosion protection. The primary load-bearing components consist of steel columns, beams, and roof trusses, connected through welding, bolts, or rivets.

Material Specifications

Component	Specification
Main Steel Frame (Column)	Q235, Q355 Welded H Section Steel
Main Steel Frame (Beam)	Q235, Q355 Welded H Section Steel
Purlin	Q235 C and Z purlin
Knee Bracing	Q235 Angle Steel
Tie Bar	Q235 Circular Steel Pipe
Bracing	Q235 Round Bar
Roof Panel	EPS Sandwich Panel / Fiber Glass Sandwich Panel / Rock Wool Sandwich Panel / PU Sandwich Panel / Steel Sheet
Wall Panel	Sandwich Panel / Corrugated Steel Sheet
Structure Usage	Up to 50 years

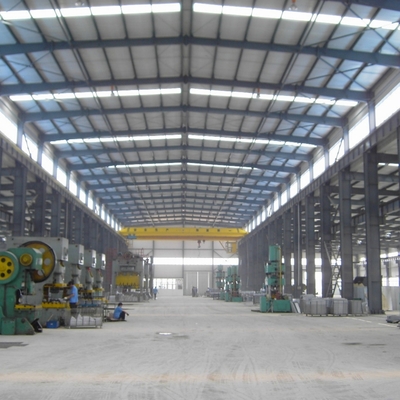

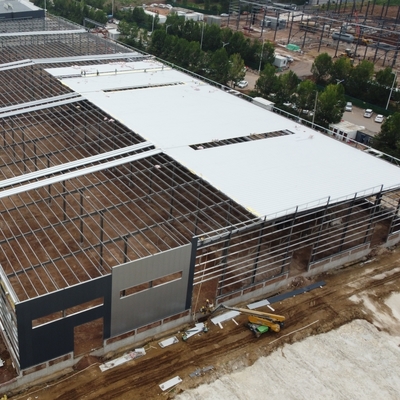

Project Showcase

Project Usage: High-End Intelligent Hydraulic Machine Tool Equipment
Size: 9,702 Sqm
Steel Weight: 630Ton

Project Usage: Logistics Steel Warehouse For High-Speed Rail Station
Size: 24,570 Sqm
Steel Weight: 985Ton

Project Usage: Textile Manufacturing Machine Tool Equipment
Size: 6,615 Sqm
Steel Weight: 750Ton

Quality Control

Raw Material: Thickness tolerance <0.25mm, yield and tension strength testing
Fabrication: 100% dimension testing (<1mm tolerance), 20% welding inspection
Surface Treatment: Shot blasting grade Sa 2.5, paint primer within 5 hours
Pre-assembly: Testing all connection details before shipment

Our Services

Structural steel fabrication, painting, galvanizing, and pre-assembly
Complete design, fabrication, and installation services
Technical drawings using AutoCAD, PKPM, TEKLA, and other professional software
On-site engineering support and installation guidance

Production Capacity

Our facility covers 35,000 square meters with monthly production capacity exceeding 1,500 tons. We specialize in various steel components including H-beams, box sections, and structural pipes.
