Large Metal Steel Structure Construction Garage Shop Buildings For Vehicle Maintenance

Large Metal Steel Structure Construction Garage Shop Buildings For Vehicle Maintenance
Large Metal Steel Structure Construction Garage Shop Buildings For Vehicle Maintenance Large Metal Steel Structure Construction Garage Shop Buildings For Vehicle Maintenance Large Metal Steel Structure Construction Garage Shop Buildings For Vehicle Maintenance

Large Image :  Large Metal Steel Structure Construction Garage Shop Buildings For Vehicle Maintenance

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0159
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 Square Meter Per Month

Large Metal Steel Structure Construction Garage Shop Buildings For Vehicle Maintenance

Description
Raw Steel Material: Q235B, Q355B Surface Treatment: Painting
Shot Blasting Level: Sa 2.5 Service Life: 50 Years
Wall And Roof: Glass Wool Sandwich Panel Type: Steel Frame Structure Workshop
Working Scope: Design,Fabrication, Installation Application: Vehicle Maintenance, Auto Repair Shop
High Light:

steel frame building

,

steel frame construction



Large Metal Garage Shop Buildings Steel Frame House Construction For Vehicle Maintenance



Project information:

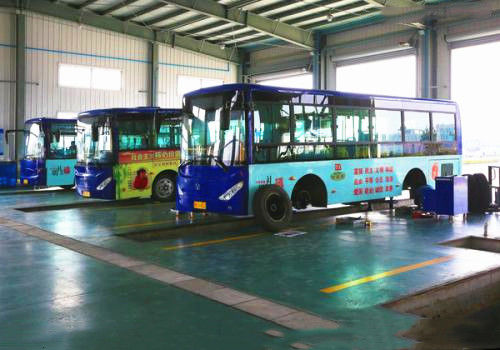

This is a Large Metal Garage Shop Buildings Steel Frame House Construction For Vehicle Maintenance. The steel frame structure of this light metal shop buildings is welded H-section steel columns and beams that is connected by high strength bolts. Glass wool sandwich panel is used as roof and wall insulation panels. We could design it in clean span or double spans. It also has office and storage buildings inside.



Due to the overall rigidity and seismic performance of the steel structure, fast construction speed, light weight and high bearing capacity, it replaces the reinforced concrete structure in modern industrial and civil buildings.



For such project, we could design the drawing, fabricate all the steel structure components, delivery and install it as your request.

Name

Large Metal Garage Shop Buildings Steel Frame House Construction For Vehicle Maintenance​

Structure Type

Gable frame, single ridge, clean span or two spans

Length

40-150m

Width

20-80m

Eave Height

6-20m

Roof Slope

10%

Gable Wall Column Spacing

7.5m

Roof

Glass wool sandwich panel

Wall

Glass wool sandwich panel

Door

Sliding door

Window

Ribbon Skylight

Height difference between indoor and outdoor

300mm



Specification and technical parameters for material list
No. Item Details of steel structure building or steel frame
1 Material Material carbon structural steel
2 Produce Lead time Normallly 45days after down payment, also according to quantity.
3 Quality Certification Quality certificate from factory, the third party by client request.
4 Dimensions Length H beam: 4000-15000mm
5 Thickness: web plate: 6-32mm
6 wing plate: 6-40mm
7 Height 200-1200mm
8 Color According to customers
9 Size MOQ is 1000 m2, width * length * eave height,
10 Main components Base Cement and steel foundation bolts
11 Main frame H Steel beam, Q235 Q345 steel H beam and columns, painted or galvanized, box steel, galvanized C section or steel pipe
12 Secondary frame : galvanized C or Z purlin , steel bracing , tie bar , knee brace ,flashing etc.
13 Material Q235B, Q345B or others as buyers' requests, like: ASTM, BSEN, DIN, IPE,AISI,JIS,
14 Purlin C or Z purlin: Size from C120~C320, Z100~Z20
15 Column X-type, tree type ,lattice, Cross, Box etc.
16 Bolt Plain bolt and High-strength bolt
17 Roof & wall PU sandwich panel, Rockwool sandwich panel or Corrugated steel sheet
18 Canopy steel sheet, PU sandwich panel, Rockwool sandwich panel
19 Door Sliding or rolling door
20 Window Aluminium alloy window
21 Surface Two lays of rust-proof painting or Hot Dip Galvanized
22 Sheet 0.5mm or 0.6mm galvanized sheet
23 Accessories Semi-transparent skylight belts, Ventilators,down pipe, Galvanized gutter, Trim, flashing, etc
24 Finishing options Vast array of colors and textures available, Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.). Or Galvanized.
25 Usages 1. Steel workshop, steel warehouse, steel structure plant
26 2. Steel web frame structure
27 3. Steel H-column and steel H-beam
28 4. Portal frame products
29 5. High rise building project
30 6. Others steel structure buildings



Our steel structure factory:

We have three production lines for steel structure fabrication, in order to serve better for abroad project, we buy some advanced machine in our production line, such as the plasma cutting machine. We will show you our production line following the steel structure processing flow as below:

Large Metal Steel Structure Construction Garage Shop Buildings For Vehicle Maintenance 0

Our service:

1. Structural steel fabrication, painting , galvanizing , pre-assembly

2. Designing, fabrication and installation for Prefabricated steel structure building.

3. Deepen or design the fabrication drawing or shop drawing based on your architectural drawing and construction drawing

4. Engineering consulting service

Large Metal Steel Structure Construction Garage Shop Buildings For Vehicle Maintenance 1

Packing & Loading:



1.  Container 20 feet: Inside: 5.69m x 2.34m x 2.18m, Gross weight: 17.5 ton, volume is 24-26m3.
2.  Container of 40 feet: Inside: 11.8m x 2.34m x 2.18m, Gross weight: 22 ton, volume is 54m3.
3.  HC container: Inside: 13.58m x 2.34m x 2.71m, Gross weight: 29 ton, volume is 68m3.
4.  All of the steel columns &beams ends and plates will be packed by the blanket to protect them from the crash in the container during the shipment.

Large Metal Steel Structure Construction Garage Shop Buildings For Vehicle Maintenance 2
