Portal Steel Frame Structure Building For Clean Span Activity Center

Portal Steel Frame Structure Building For Clean Span Activity Center
Portal Steel Frame Structure Building For Clean Span Activity Center Portal Steel Frame Structure Building For Clean Span Activity Center Portal Steel Frame Structure Building For Clean Span Activity Center Portal Steel Frame Structure Building For Clean Span Activity Center

Large Image :  Portal Steel Frame Structure Building For Clean Span Activity Center

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0124
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 Square Meter Per Month

Portal Steel Frame Structure Building For Clean Span Activity Center

Description
Features: Activity Center Steel Buildings Application: Portal Steel Frame Structure Building
Type: Steel Structure Construction Raw Steel Material: Q235B, Q355B, ASTM A36
Service Life: 50 Years Wall And Roof: Corrugated Steel Cladding Sheet
Surface Treatment: Painting Working Scope: Design,Fabrication, Installation
High Light:

prefab metal buildings

,

steel frame construction



Portal Steel Frame Structure Building For Clean Span Activity Center



Project Introduction:

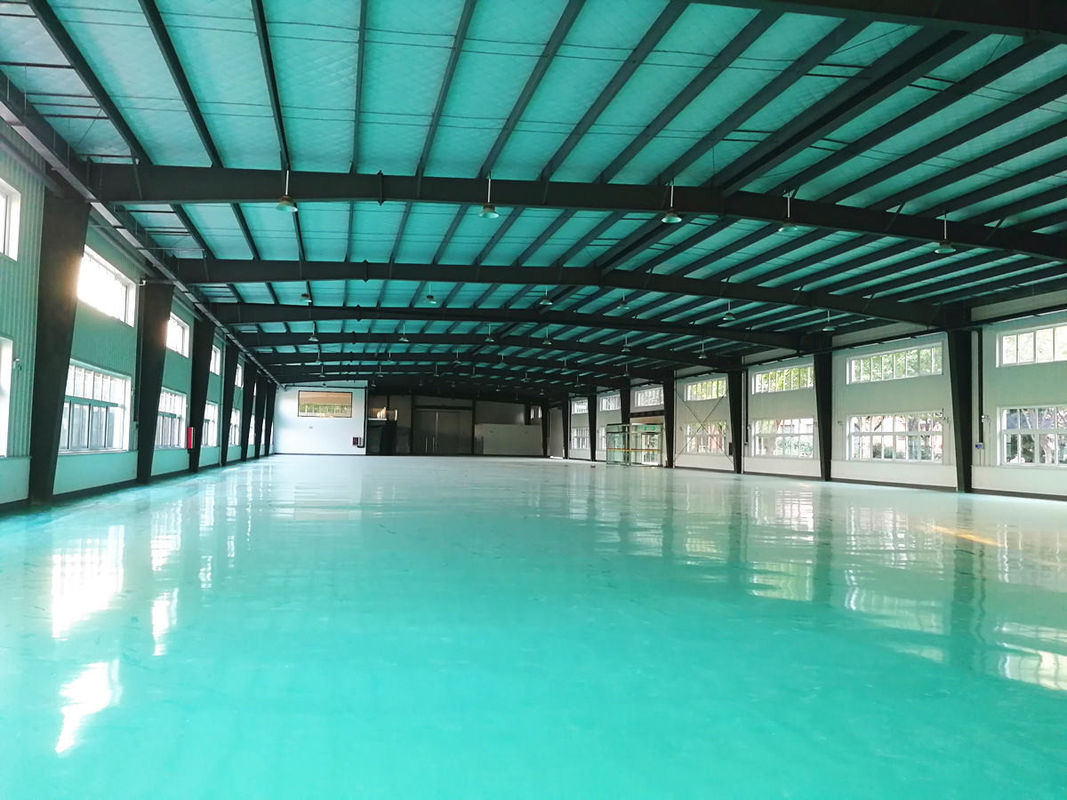

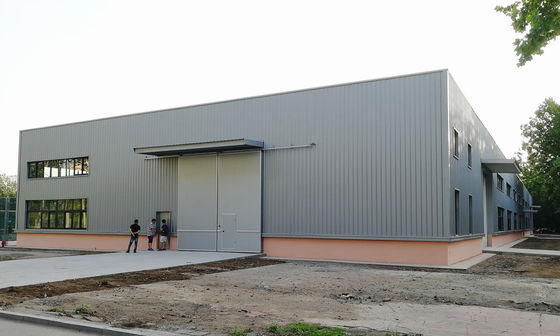

This is a Portal Steel Frame Structure Building For Clean Span Activity Center in an university, it will be used as a indoor sport activity center. Welded H section steel beams and columns are connected by high strength bolts to be the main steel frame structure. Clean span that without center column could provide large space. Double row windows light up inside. Environmental epoxy floor coating has better dustproof property and makes the floor smooth. It also has a double storeys office building inside.



Qingdao Ruly Steel Engineering is a professional engineering & construction company that works on the designing, fabrication and construction for prefabricated steel frame structure building project.



Project Details:



Name

Portal Steel Frame Structure Building For Clean Span Activity Center

Structure Type portal frame, single ridge with parapet wall
Length 90m
Width 40m
Eave Height 8m
Roof Slope 10%
Gable Wall Column Spacing 7.5m
Roof

0.5mm thick Corrugated steel cladding sheet

Wall

0.5mm thick Corrugated steel cladding sheet

Door Sliding door, Glass casement door, rolling door
Window Aluminium alloy sliding window and fixed window
Height difference between indoor and outdoor 300mm

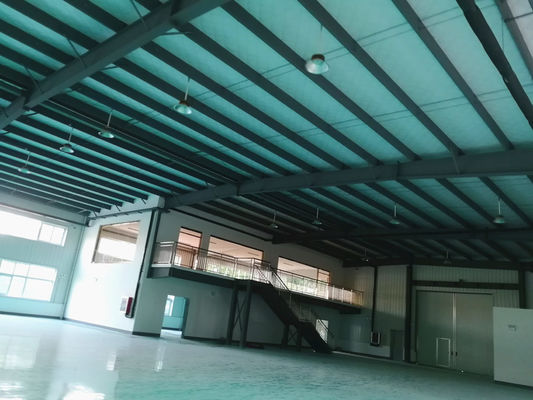

Steel structure supporting and steel floor deck of Double storeys indoor office:



Portal Steel Frame Structure Building For Clean Span Activity Center 0

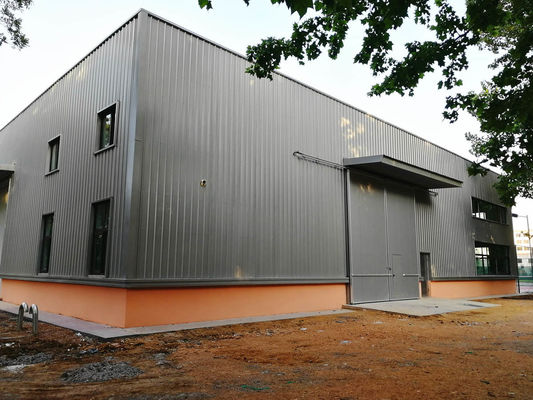

High quality steel cladding sheet wall panel and glass casement door:



Portal Steel Frame Structure Building For Clean Span Activity Center 1



Construction materials List:



Main Parts Item Name Specification




Main Steel Frame

Steel Column
Q235B, Q345B
H shape steel

Steel Beam
Q235B, Q345B
H shape steel

Brace
Q235B, Q345B
Steel rod, Steel pipe, Angle steel
Roof Purlin C or Z shape, Steel purlin



Supporting System

Wall Purlin
Q235B, Q345B
C or Z shape, Steel purlin
Roof Single colorful corrugate steel sheet, Sandwich panel with EPS, Rock wool, PU, Glass wool etc.,
Wall Single colorful corrugate steel sheet, Sandwich panel with EPS, Rock wool, PU, Glass wool etc.,





Accessories
Bolts Ordinary, High strength
Gutter Galvanized Steel plate, Stainless steel
Windows Aluminum alloy-Glass, Aluminum alloy-shutter, PVC
Doors Sliding or Rolling door
Downpipes PVC pipe, Color steel pipe
Edge Cover Made of color steel sheet thickness 0.5mm
Ventilator Stainless steel
Crane Crane in 5 tons to 30 tons



Our service:



1. Structural steel fabrication, painting , galvanizing , pre-assembly

2. Designing, fabrication and installation for Prefabricated steel structure building.

3. Deepen or design the fabrication drawing or shop drawing based on your architectural drawing and construction drawing

4. Engineering consulting service

Portal Steel Frame Structure Building For Clean Span Activity Center 2



Advantages of prefabricated steel structure buildings:



1 High strength and light weight Although the density of steel is larger than that of other building materials, its strength is very high. Under the same force, the steel structure has a small weight and can be made into a structure with a large span.
2 Good plasticity and good toughness The plasticity of the steel is good, and the structure will not suddenly break due to accidental overload or partial overload. The toughness of the steel is good, making the structure more adaptable to dynamic loads.
3 High degree of industrialization in production The steel structure is mainly produced in a specialized metal structure factory, so the production is simple and the precision is high.
4 Simple construction and short construction period All components are prefabricated at the factory, and the site is simply assembled, which greatly shortens the construction period.
5 Wind resistance and structural stability Steel structure construction with light weight, high strength, good overall rigidity and strong deformation ability
6 Saving construction costs The steel structure has light weight, reduces the basic cost, and has a fast construction speed. It can be completed and put into operation as soon as possible, and the comprehensive economic benefits are much better than the concrete structure.
7 Recyclable Steel can be recycled, less environmentally polluted when constructed and removed
